Description
Description

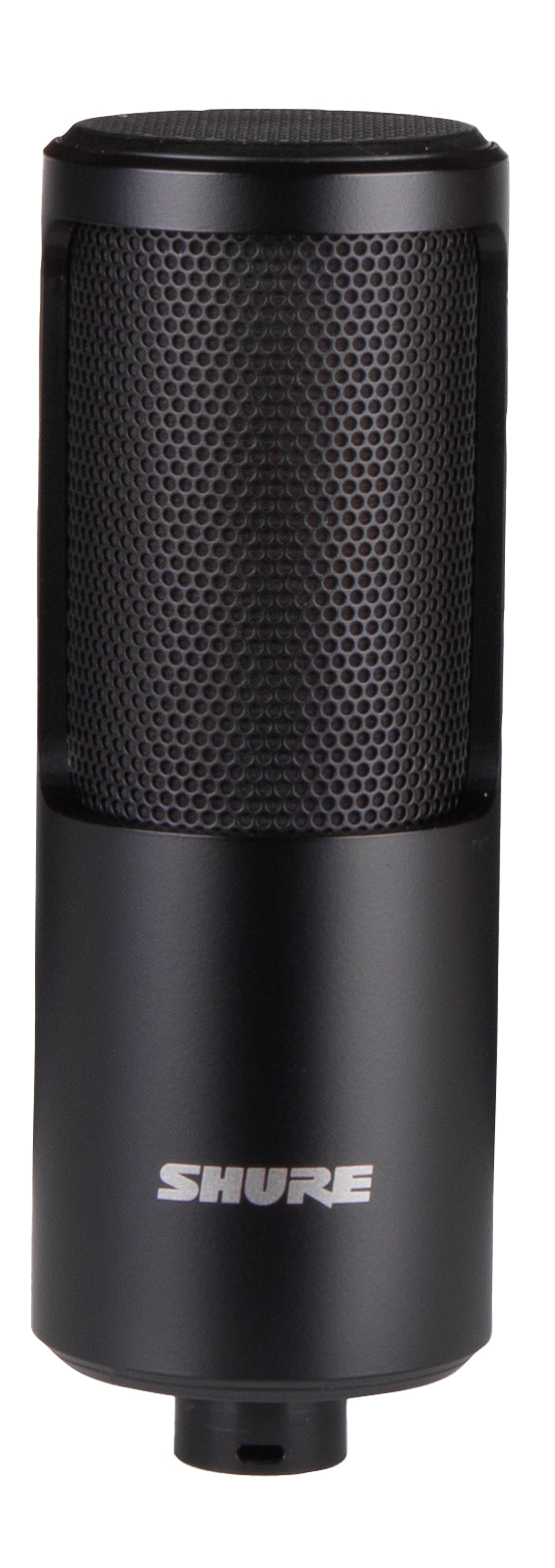

- Large-diaphragm condenser microphone for home studio with excellent sound flexibility and superb audio quality.
- Precise and linear sound, ideal for vocals, instruments, and high SPL sound sources (max. 140 dB).
- Built-in RF interference blocking.
- 1" dual-diaphragm brass capsule.
- Clean, controlled bass and detailed highs.
- Integrated pop filter.
- Solid, durable design.
Technical specifications
Technical specifications
Type: True Condenser
Polar Pattern: Cardioid
Frequency Response: 20 Hz to 20 kHz
Output Impedance: 150 Ω
Sensitivity: -38 dBV/Pa (at 1 kHz, open circuit voltage), 1 Pascal = 94 dB SPL
Maximum SPL:
- 1000Ω load: 140 dB SPL
- 2500Ω load: 145 dB SPL
Polarity: Positive pressure on diaphragm produces positive voltage on Pin 2 with respect to Pin 3
Connector: Three-pin professional audio (XLR), male
Net Weight: 463 g (1.02 lbs)
Housing: Cast Zinc
Power Requirements: 48 V DC Phantom Power (5.3 mA)
Optional Accessories and Replacement Parts:

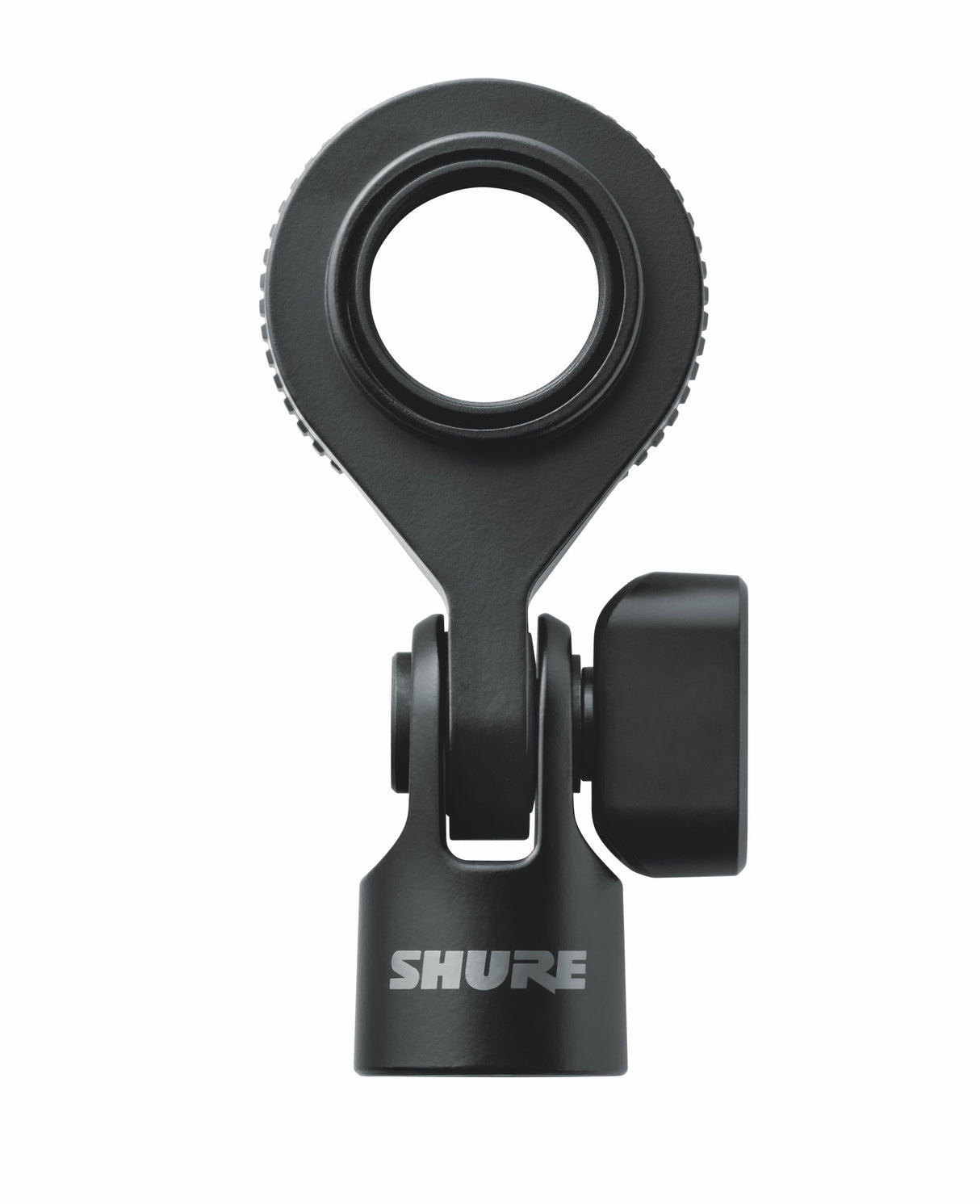

A4M Swivel-Mount Microphone Clamp
A4SM Shockmount
A4PF Detachable, Magnetic Pop Filter
A4CC Zippered Carrying Case
