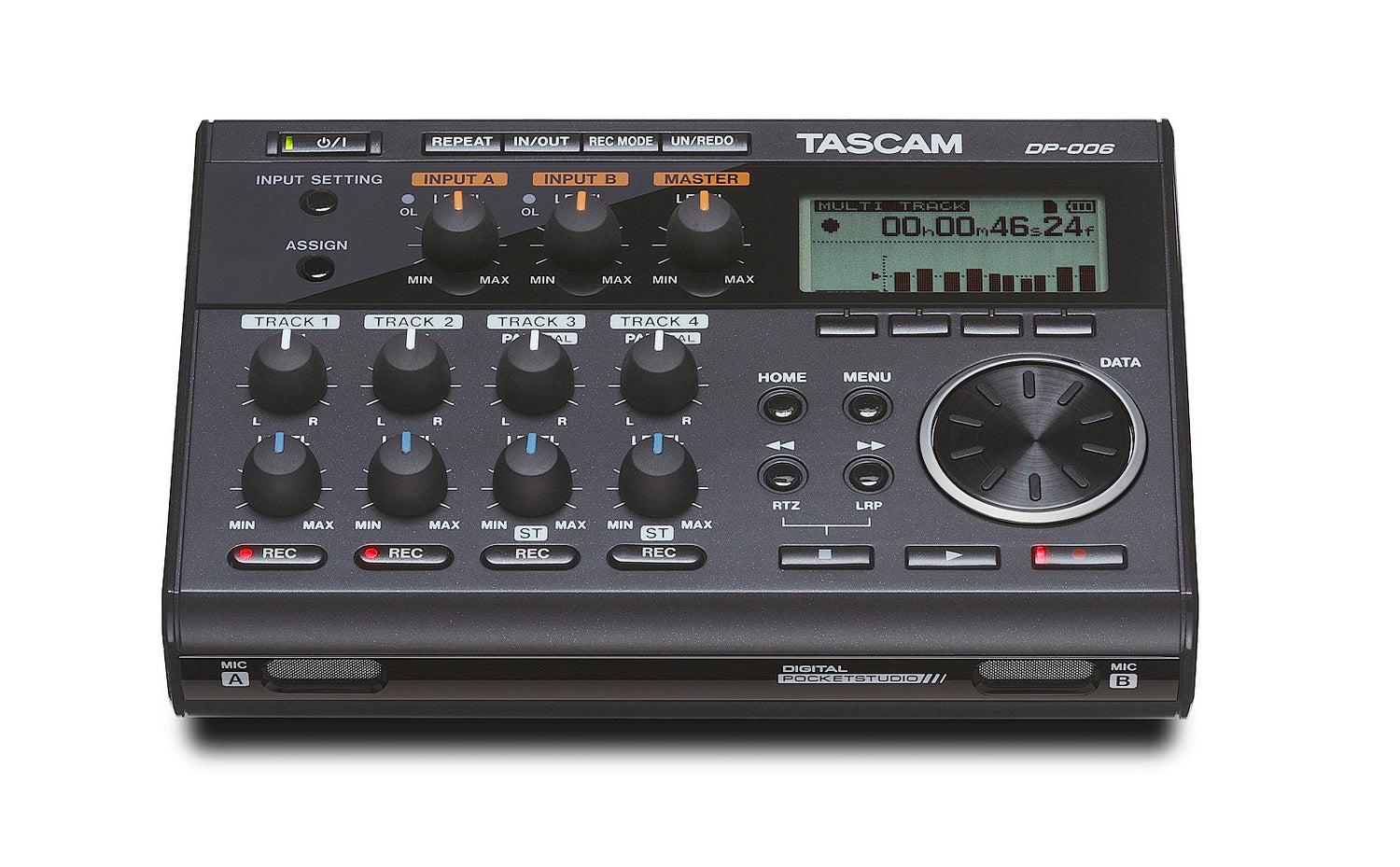

Tascam DP-006 digital 6-track recorder

• Portable, ultra-compact and easy-to-use multitrack recorder
• Simple, intuitive user interface
• High quality recording (44.1 kHz / 16 bit)
• Recording media: SD / SDHC card (2 GB SD card included)
• 6 recording tracks
• Built-in stereo condenser microphone
• Two Mic / Line inputs
• Dedicated level and pan control
• Reject function

Tascam DP-006 Digital 6 track recorder Ultra compact

• Portable, ultra-compact and easy-to-use multitrack recorder
• Simple, intuitive user interface
• High quality recording (44.1 kHz / 16 bit)
• Recording media: SD / SDHC card (2 GB SD card included)
• 6 recording tracks
• Built-in stereo condenser microphone
• Two Mic / Line inputs
• Dedicated level and pan control
• Reject function

The DP-006 is a compact, battery-powered multitrack recorder designed for on-the-spot recordings, with two condenser microphones in the front. It can record vocals and acoustic guitar without any additional equipment.The unit can also be mounted on a stand. With control knobs, built-in chromatic tuner, metronome and a lightweight design, this Pocketstudio is extremely user-friendly. The DP-006 offers two inputs for external microphones, an electric guitar or a line-level device such as a synthesizer. With an external converter cable, tablet devices like iPads can be connected. Recordings can be stored on universal SD/SDHC cards (2GB card included). All song ideas can be transferred via USB 2.0, or SD card readers from the device at any time during the recording process. Basic editing functions are also available. Battery life can be extended by connecting the DP-006 directly to Tascam's external battery pack (BP-6AA) via USB.

Specifications:

Recording media: SD card (512 MB – 2 GB), SDHC card (4–32 GB)
File system: MTR partition: TASCAM original, FAT partition: FAT32

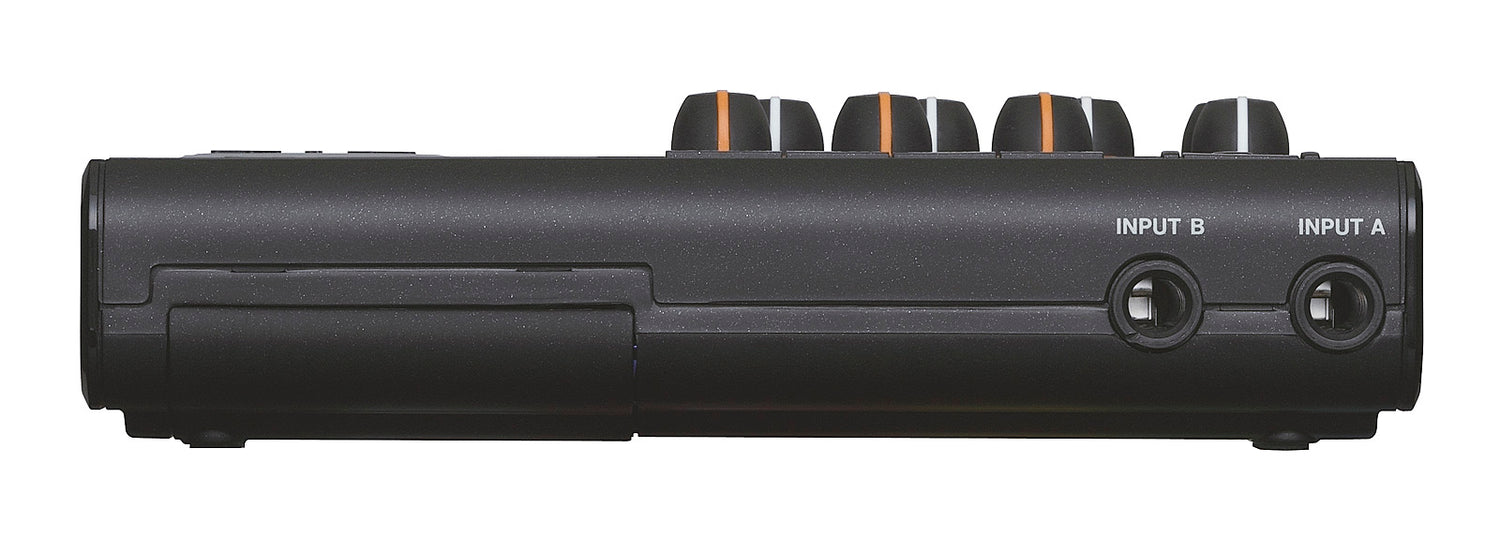

Input A: 6.3-mm phone jack
  Input impedance (INPUT A switch set to MIC/LINE): 10 kΩ or more
  Input impedance (INPUT A switch set to GUITAR): 1 MΩ
  Nominal input level: -10 dBV
  Maximum input level: +6 dBV
  Headroom: 16 dB
Input B: 6.3-mm phone jack
  Input impedance: 10 kΩ or more
  Nominal input level: -10 dBV
  Maximum input level: +6 dBV
  Headroom: 16 dB
Built-in microphones: Two omnidirectional condensor microphones
Headphones/Line output: 3.5-mm stereo mini jack
  Nominal output level (Line): -16 dBV
  Maximum output level (Line): 0 dBV
  Maximum output power (Phones): 15 mW + 15 mW (THD+N: 0.1% or less, 32 Ω load)

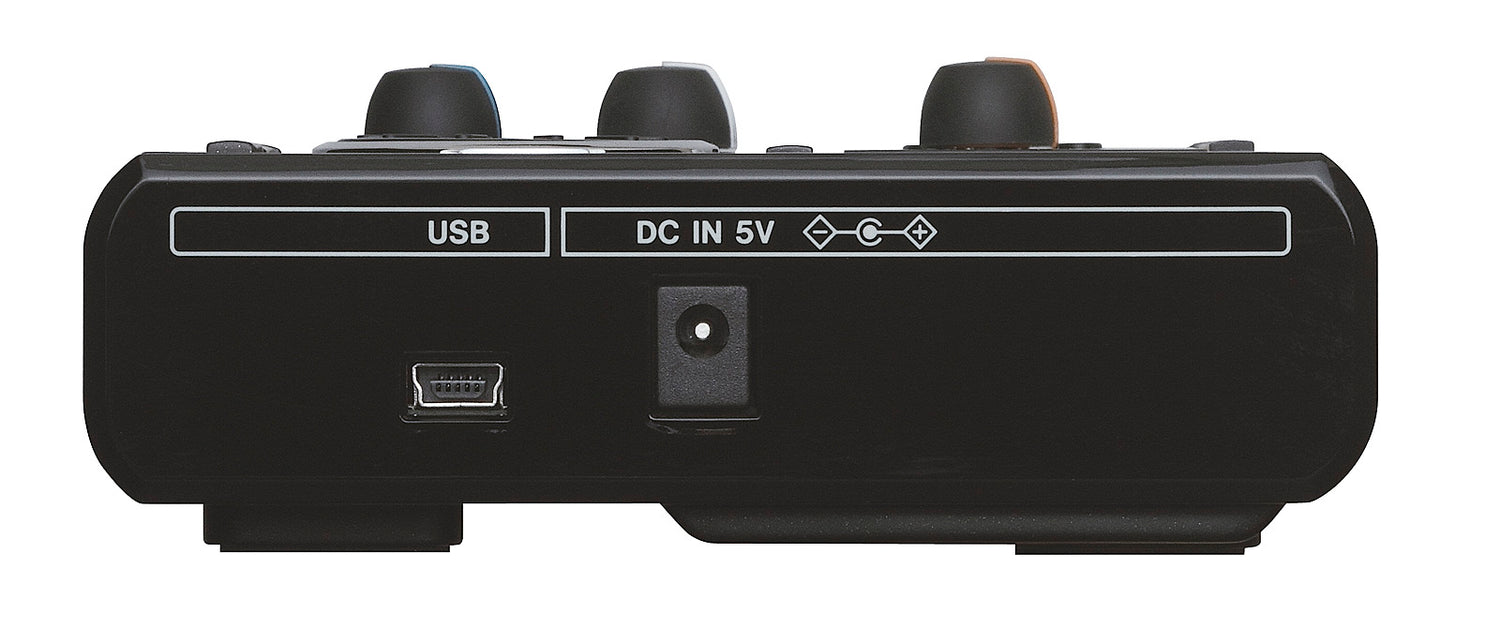

USB: USB Mini-B 4-pin
  Format: Mass Storage Class USB 2.0 High Speed
Frequency response: 20 Hz – 20 kHz, +1 dB/−3 dB
Distortion: <0.05 %
S/N ratio: >81 dB
Supported operating systems: Windows XP, Windows Vista, Windows 7, Mac OS X 10.2 and later
Power supply: Four AA batteries (alkaline or nickel-metal hydride) or TASCAM PS-P520 AC adaptor (sold separately)
Power consumption: 1 W (maximum)
Approx. operating time using alkaline batteries (EVOLTA): 8.0 hours (recording via line input), 8.5 hours (playback via headphones)
Approx. operating time using nickel-metal hydride rechargeables (eneloop): 9.0 hours (recording via line input), 9.5 hours (playback via headphones) (Recording and Playback according to JEITA standards)
Dimensions (W x H x D, including protrusions): 155 x 42 x 107 mm
Weight (without batteries): 360 g
Operating temperature: 5–35 °C
