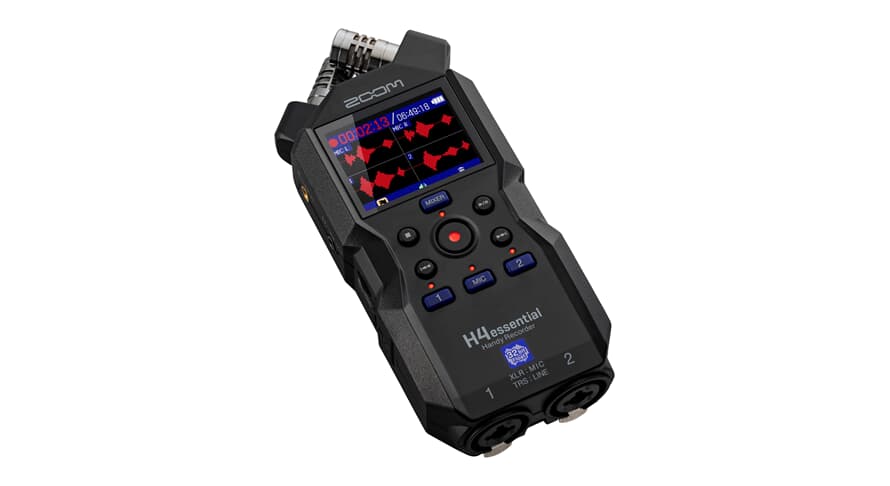

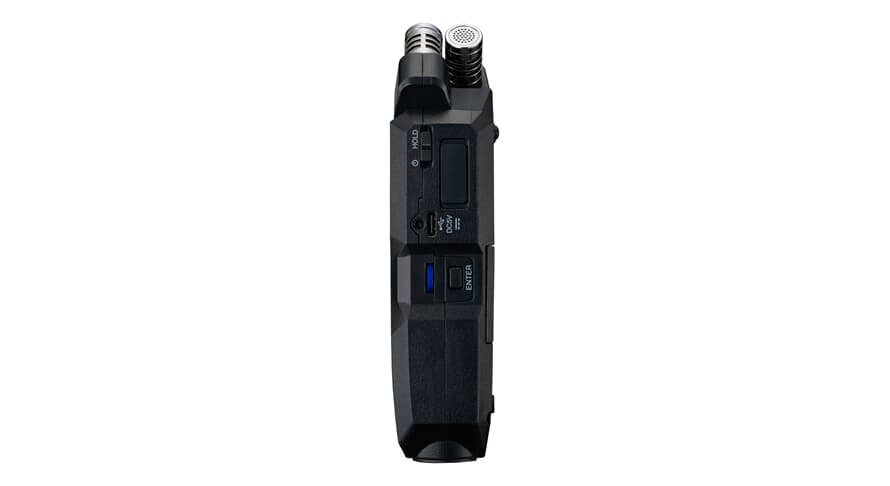

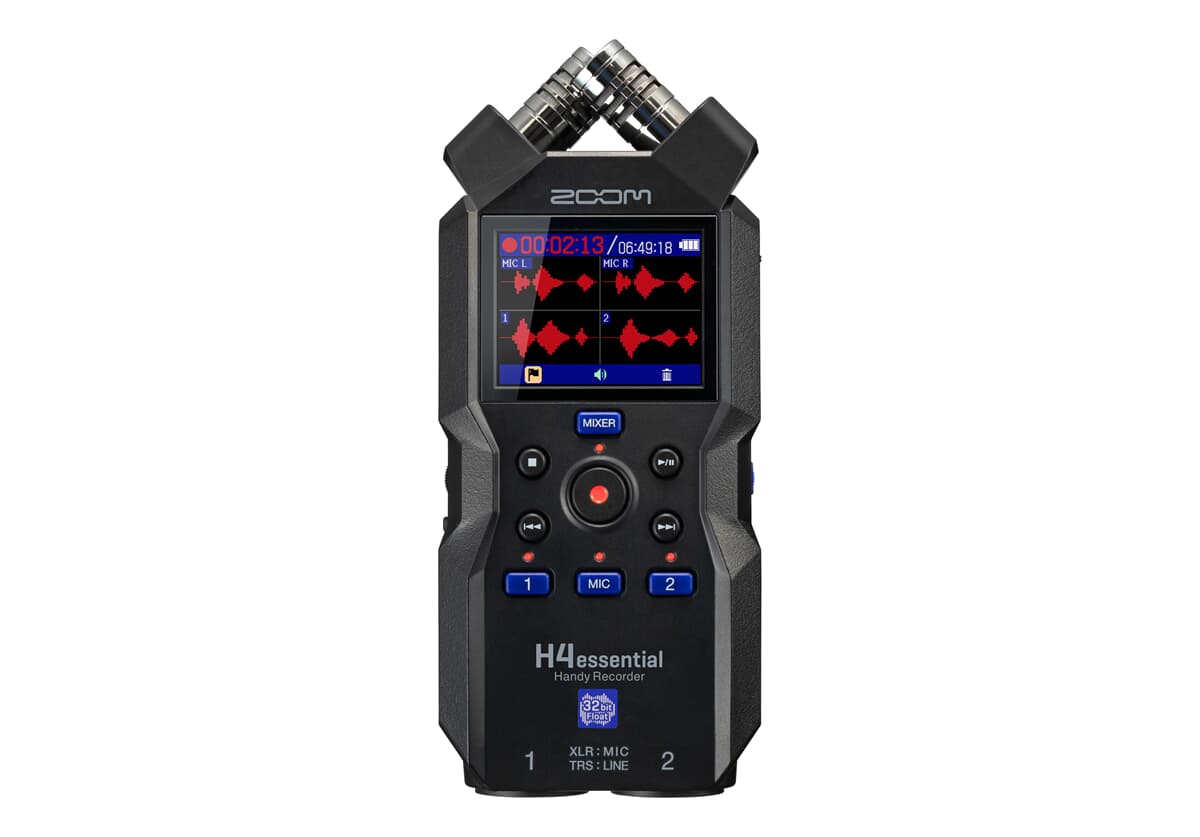

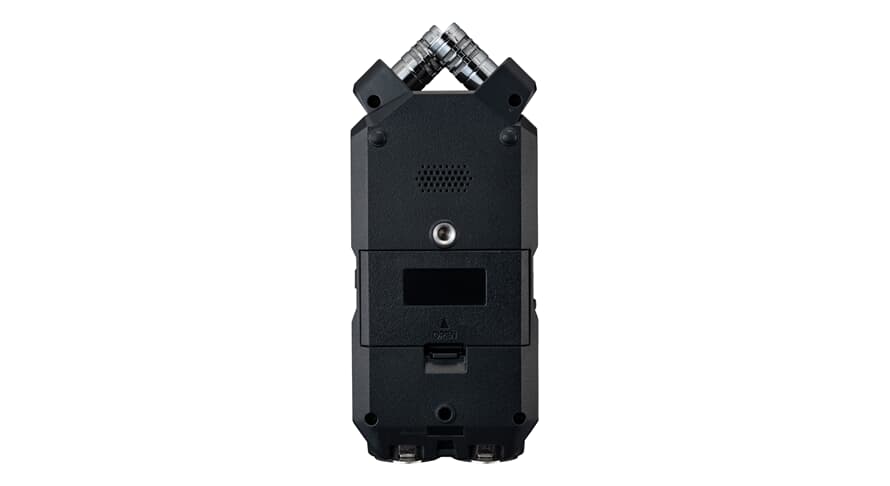

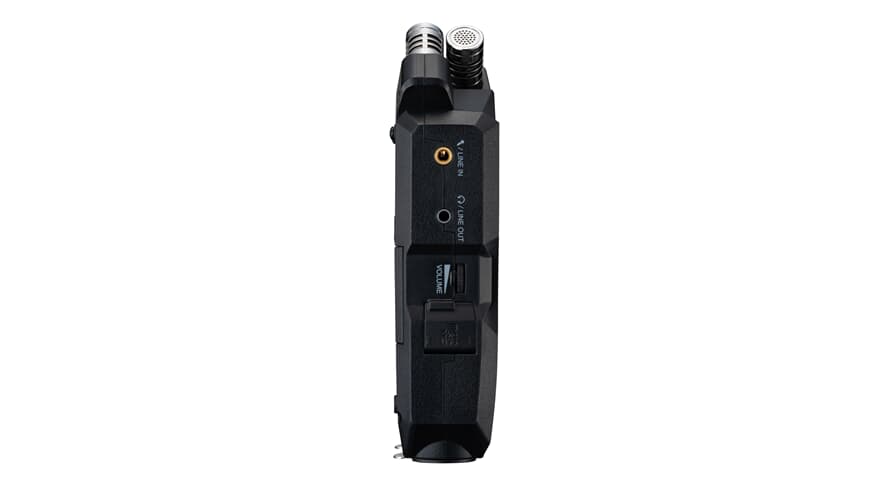

Zoom H4e Essential Handy Recorder

• Zoom 4-track, 32-bit handheld recorder with 2 XLR/TRS inputs
• Designed to record audio in an easy-to-use, yet user-friendly way Inputs and outputs
  Inputs
  Built-in microphone (stereo): 1
  XLR/TRS: 2
  MIC/LINE IN: 1
  Outputs
  Headphones: 1
  Built-in speaker (mono): 1
  Inputs
  Built-in microphone: 90º XY stereo format
  Omnidirectional: Unidirectional
  Sensitivity: -43 dB/1 Pa at 1 kHz
  Maximum sound pressure input: 130 dB SPL
  XLR/TRS connector
  XLR/TRS combo jacks × 2 (XLR: 2 HOT TRS: TIP HOT)
  Input gain: Adjustment unnecessary
  Input impedance
  XLR: 3 k or more
  TRS: 3 k or more
  Maximum input level
  XLR: +4 dBu
  TRS: +24 dBu
  Phantom voltage: +48 V, channel total 10 mA or less
  Equivalent input noise -120 dBu or less (IHF-A) @150 input
  MIC/LINE IN jack
  Stereo mini jack ×1 (supports plug-in power)
  Input gain: No adjustment required
  Input impedance: 2 k or more
  Outputs
  Headphone jack: Stereo mini jack ×1
  Maximum output level: 20 mW + 20 mW (into 32 load)
  Output impedance: 15 or less
  Built-in speaker: 250 mW 8 mono speaker
  Recorder
  Maximum simultaneous recording tracks: 4
  Maximum simultaneous playback tracks: 4
  Recording formats: WAV
  44.1/48/96 kHz,
  32-bit float mono/stereo
  BWF and iXML formats supported.
  Recording media
  4-32GB card compatible with microSDHC specification
  64GB-1TB card compatible with microSDXC specification
  Display: 2.0-inch full color LCD (360 x 240)
  USB connector: USB Type-C
  Use a USB cable that supports data transfer.
  USB bus power is supported.
  USB microphone: USB2.0 High Speed
  44.1/48 kHz
  24-bit/32-bit float
  4-in/2-out
  File transfer: USB2.0 High Speed
  Remote control: Dedicated wireless adapter (ZOOM BTA-1)
  Power

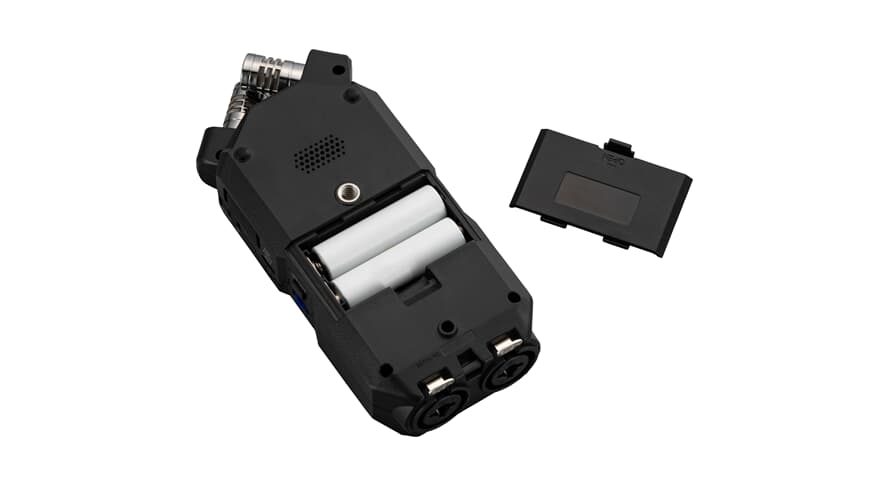

  4 AA batteries (alkaline, NiMH or lithium)
  AC adapter ZOOM AD-17): DC 5V/1A
  USB bus power supported.
  Expected continuous operating time when using 2-track recording (built-in XY microphone), 48 kHz/32-bit float phantom power off, no headphones, no remote control, monitor power savers on:
  Alkaline batteries: Approx. 9 hours
  NiMH batteries (1900 mAh): Approx. 14 hours
  Lithium batteries: Approx. 20 hours
  These values are approximate. Continuous battery runtimes were determined using internal testing methods. They will vary greatly depending on conditions of use.
  Power consumption: Maximum 3 W
  Dimensions: 66.9 mm (W) × 156.1 mm (D) × 38.0 mm (H)
  Weight (incl. batteries): 226geffective way
• Very good sound quality

Zoom H4e Essential Handy Recorder

• With fire tracks, 32-bit float recording, advanced X/Y microphones and 2 XLR/TRS inputs, this Zoom recorder is ideal for recording your music, podcasts and audio to video.
• 32-bit float recording provides consistently high quality without the need for level adjustment.
• It features ultra-clean preamps and X/Y microphones for impressive sound quality.
• Record and stream simultaneously in 32-bit float via SD card or USB-C.
• Use the built-in mixer to adjust the sound level and see the waveform during recording.
• Perfect for music, interviews and location sound with XLR inputs and built-in microphones.
• Use the optional Bluetooth adapter for remote control and timecode synchronization.
• The H4essential is compact yet powerful, with long battery life and large storage space.

Indgange og udgange kanaler

• Indbygget mikrofon (stereo): 1
• XLR/TRS: 2
• MIC/LINE IN: 1
• Hovedtelefoner: 1
• Indbygget højttaler (mono): 1

Indgange

• Indbygget mikrofon: 90º XY stereo-format
• Retningsløshed: Unidirectional
• Følsomhed: –43 dB/1 Pa ved 1 kHz
• Maksimal lydtryk-indgang: 130 dB SPL
• XLR/TRS-connector
• XLR/TRS kombinationsjacks × 2 (XLR: 2 HOT TRS: TIP HOT)
• Indgangsforstærkning: Justering unødvendig
• Indgangsimpedans
• XLR: 3 kΩ eller mere
• TRS: 3 kΩ eller mere
• Maksimalt indgangsniveau
• XLR: +4 dBu
• TRS: +24 dBu
• Fantomspænding: +48 V, kanal total 10 mA eller mindre
• Ækvivalent indgangsstøj -120 dBu eller mindre (IHF-A) @150 Ω indgang
• MIC/LINE IN-stik
• Stereo mini jack ×1 (understøtter stik-i-strøm)
• Indgangsforstærkning: Justering unødvendig
• Indgangsimpedans: 2 kΩ eller mere

Udgange

• Hovedtelefonstik: Stereo mini jack ×1
• Maksimalt udgangsniveau: 20 mW + 20 mW (ind i 32 Ω belastning)
• Udgangsimpedans: 15 Ω eller mindre
• Indbygget højttaler: 250 mW 8 Ω monohøjttaler

Optager

• Maksimale samtidige optagelsesspor: 4
• Maksimale samtidige afspillingsspor: 4
• Optagelsesformater: WAV
• 44.1/48/96 kHz,
• 32-bit float mono/stereo
• BWF og iXML-formater understøttes.

Optagelsesmedier

• 4-32GB-kort kompatibelt med microSDHC-specifikationen
• 64GB–1TB-kort kompatibelt med microSDXC-specifikationen
• Skærm: 2,0-tommer fuld farve LCD (360 x 240)
• USB-stik: USB Type-C
• Brug et USB-kabel, der understøtter dataoverførsel.
• USB bus strøm understøttes.
• USB mikrofon: USB2.0 High Speed
• 44.1/48 kHz
• 24-bit /32-bit float
• 4-in/2-out
• Filoverførsel: USB2.0 High Speed
• Fjernbetjening: Dedikeret trådløs adapter (ZOOM BTA-1)

Strøm

• 4 AA-batterier (alkalisk, NiMH eller lithium)
• AC-adapter ZOOM AD-17): DC 5V/1A
• USB bus strøm understøttes.
• Forventet kontinuerlig driftstid ved brug af 2-sporsoptagelse (indbygget XY-mikrofon), 48 kHz/32-bit float fantomspænding slukket, ingen hovedtelefoner, ingen fjernbetjening, skærmstrømsparere på:
• Alkaliske batterier: Ca. 9 timer
• NiMH-batterier (1900 mAh): Ca. 14 timer
• Lithiumbatterier: Ca. 20 timer
• Strømforbrug: Maksimum 3 W
• Dimensioner: 66,9 mm (B) × 156,1 mm (D) × 38,0 mm (H)
• Vægt (inklusiv batterier): 226g
