• Hardware Sequencer
• MIDI, CV and USB
• 16 Pads
• Groovebend
• Randomizer
• Harmonizer

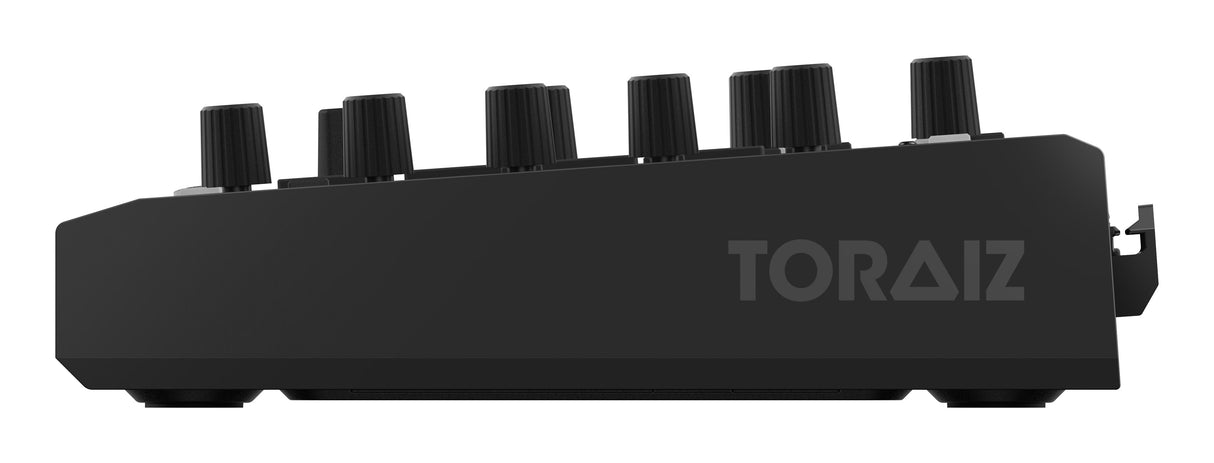

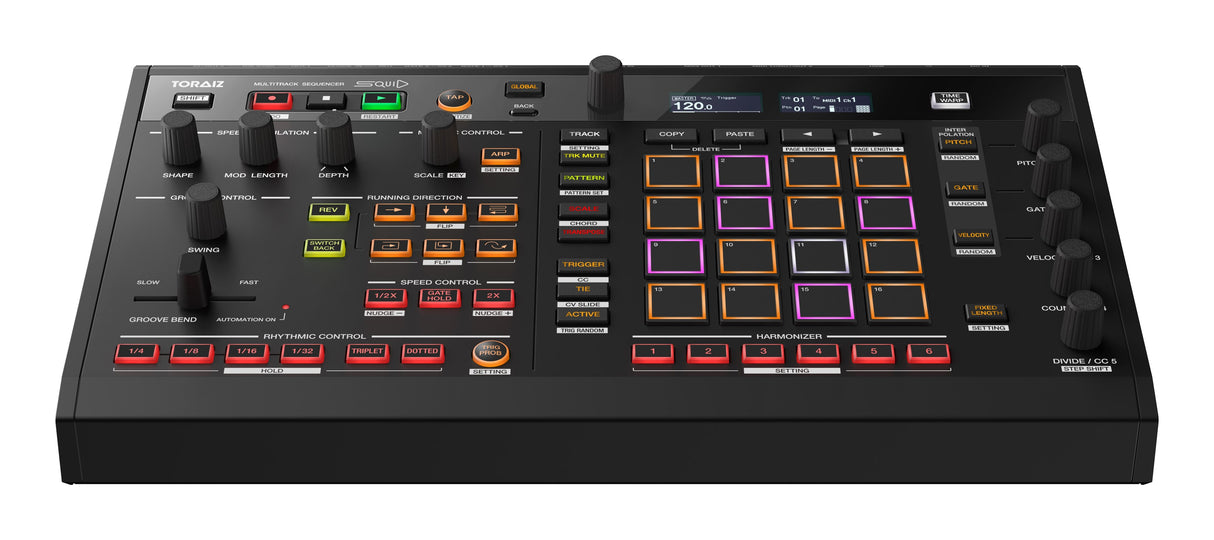

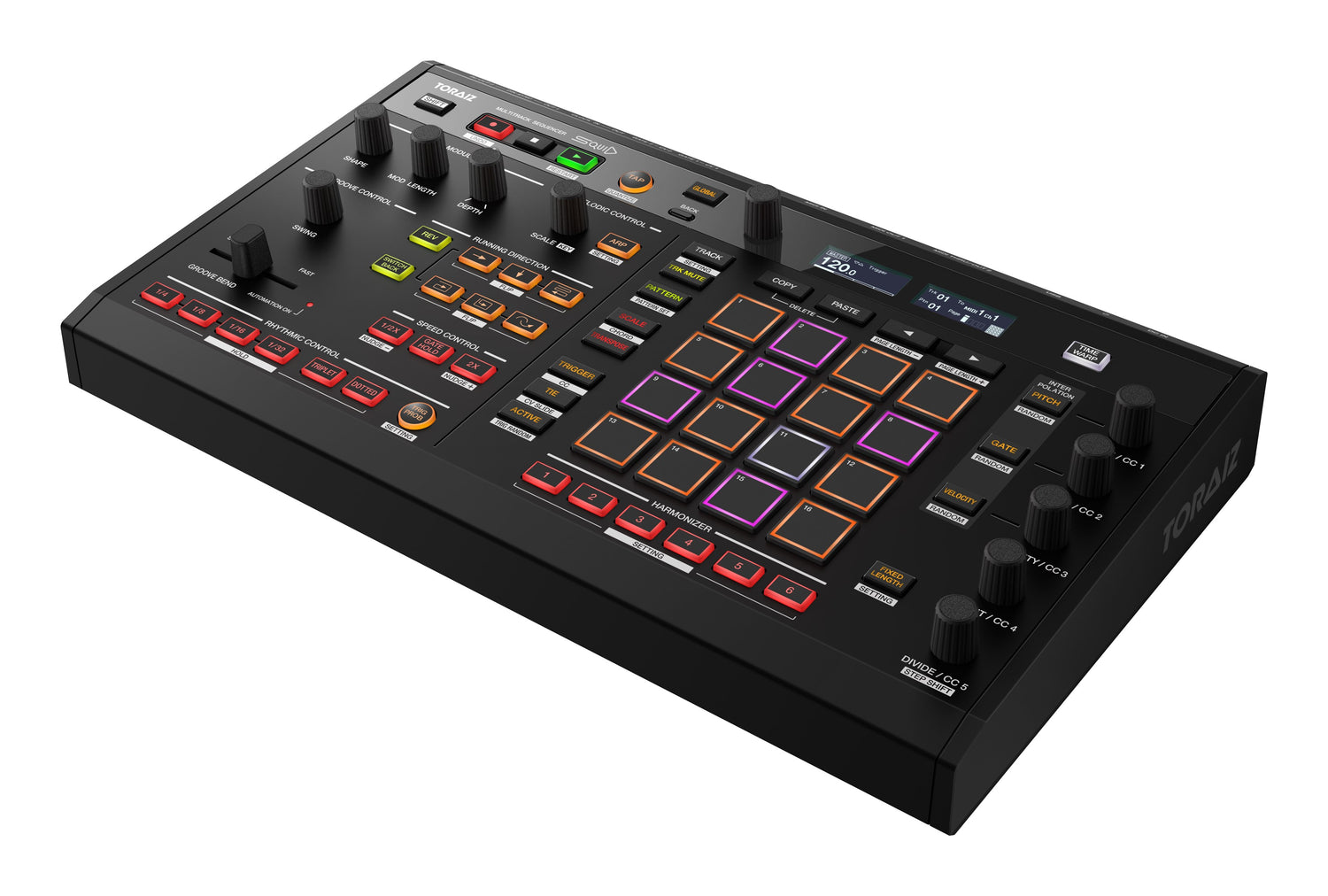

Pioneer TORAIZ SQUID

Pioneer DJ Toraiz Squid, is a hardware sequencer for creating music in the studio or for use live on stage. A sequencer is a machine that does not output the sound itself, but sends out control signals (MIDI) to connected musical instruments (or your DAW).

Unique Features
- Groovebend, change your groove "on the fly" via fader/slider
- Speed Modulation, manipulate Pitch, Gate and Velocity for each step
- Running Direction, Play your sequnces in 48 different directions
- Time Warp, remember your patterns without pressing REC
- Interpolation, change values for each step and let Squid interpolate the values
- Undo

Other Features
- Randomize, create unique patterns with the push of a button
- 16 rubber pads with multicolored LEDs
- Harmonizer, create a chord from a single note

Specifications

Dimensions
Width: 374.8 mm
Height: 223.9 mm
Depth: 72.1 mm
Weight: 1.9 kg

Included Accessories
• AC adaptor

• Power cord

• Quick Start Guide

Sequencer
Maximum number of tracks: 16 tracks
Maximum number of patterns per track: 64 patterns
Maximum number of steps per track: 64 steps

Step resolution
• Quarter note

• Eighth note

• Sixteenth note

• Twenty-fourth note

• Thirty-second note

Maximum number of notes per step (polyphony): 8 notes
Maximum number of projects: 128 projects

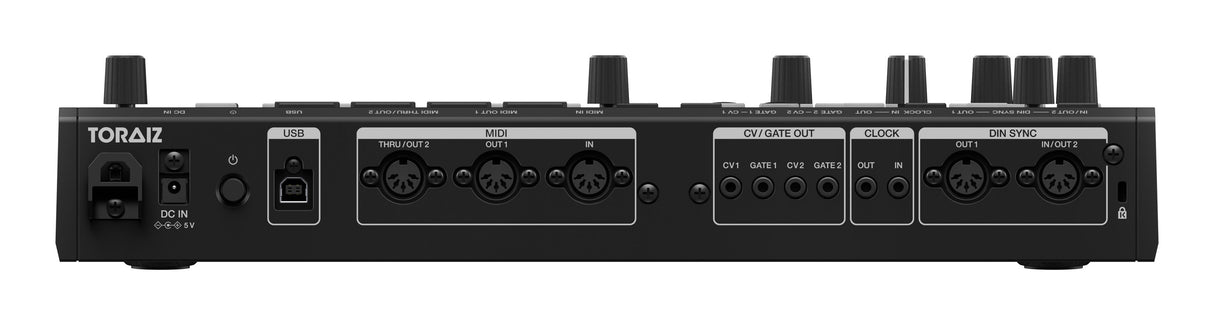

Terminals
MIDI IN
MIDI OUT 1
MIDI THRU / OUT 2
USB (Type B)
CV OUT 1, CV OUT 2 (V/Oct, Hz/V)
GATE OUT 1, GATE OUT 2 (V-Trigger, S-Trigger)
CLOCK IN (step, 1, 2, 4, 24, 48ppqn, Gate) CLOCK OUT (1, 2, 4, 24, 48ppqn)
DIN SYNC IN / OUT 2 (24, 48ppqn) DIN SYNC OUT 1 (24, 48ppqn)
