Yamaha DZR315 Aktiv PA Højttaler
€19.252,55
Unit price
/
Not available
Description
Description
- DZR-serie PA højtaler i verdensklasse
- 3-vejs højtaler i bedste kvalitet
Yamaha DZR315
- 2000W 3-vejs Yamaha PA speaker.
- 3 højtalere: 2" HF, 8" MF og 15" LF speaker.
- D-klasse forstærkermodul.
- 96kHz DSP output giver lyd af højeste kvalitet med lav latency.
- Avanceret FIR-X tuning og filtrering minimer phase distortion.
- D-contour bygning og gennemført beskyttelse af intern kredsløb.
- Lavet af krydsfinertræ, der gør højtaleren let men hårdfør.
Specifications
Specifications
-
ColorBlack
-
Weight (kg)
More specifications
More specifications
| Speaker type |
| 3-way, Bi-ampled Powered Speaker, Bass-reflex |
| Frequency range (-10dB) |
| 31Hz - 20kHz |
| Coverage area |
| H75ﾟ x V50ﾟ |

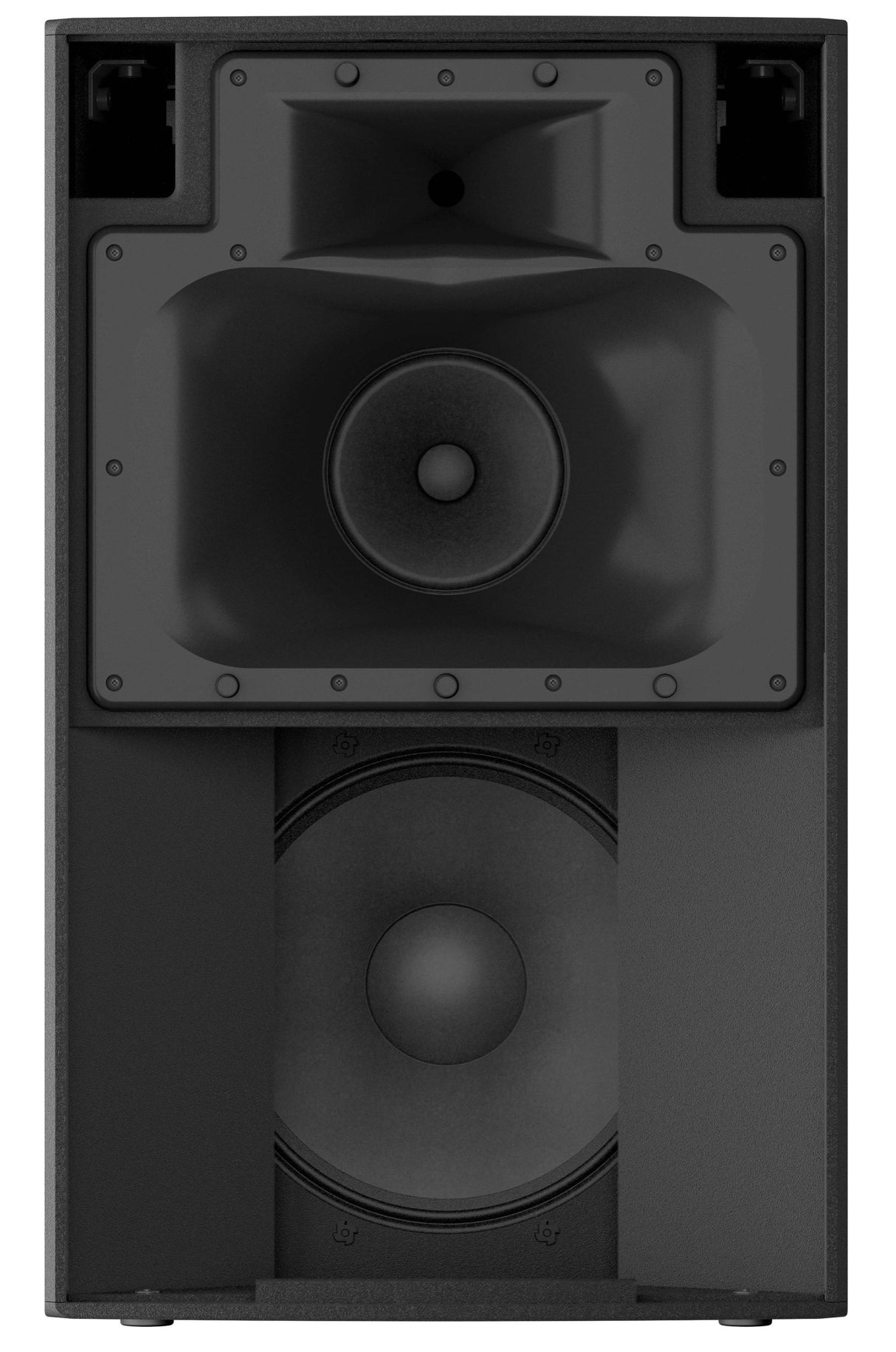

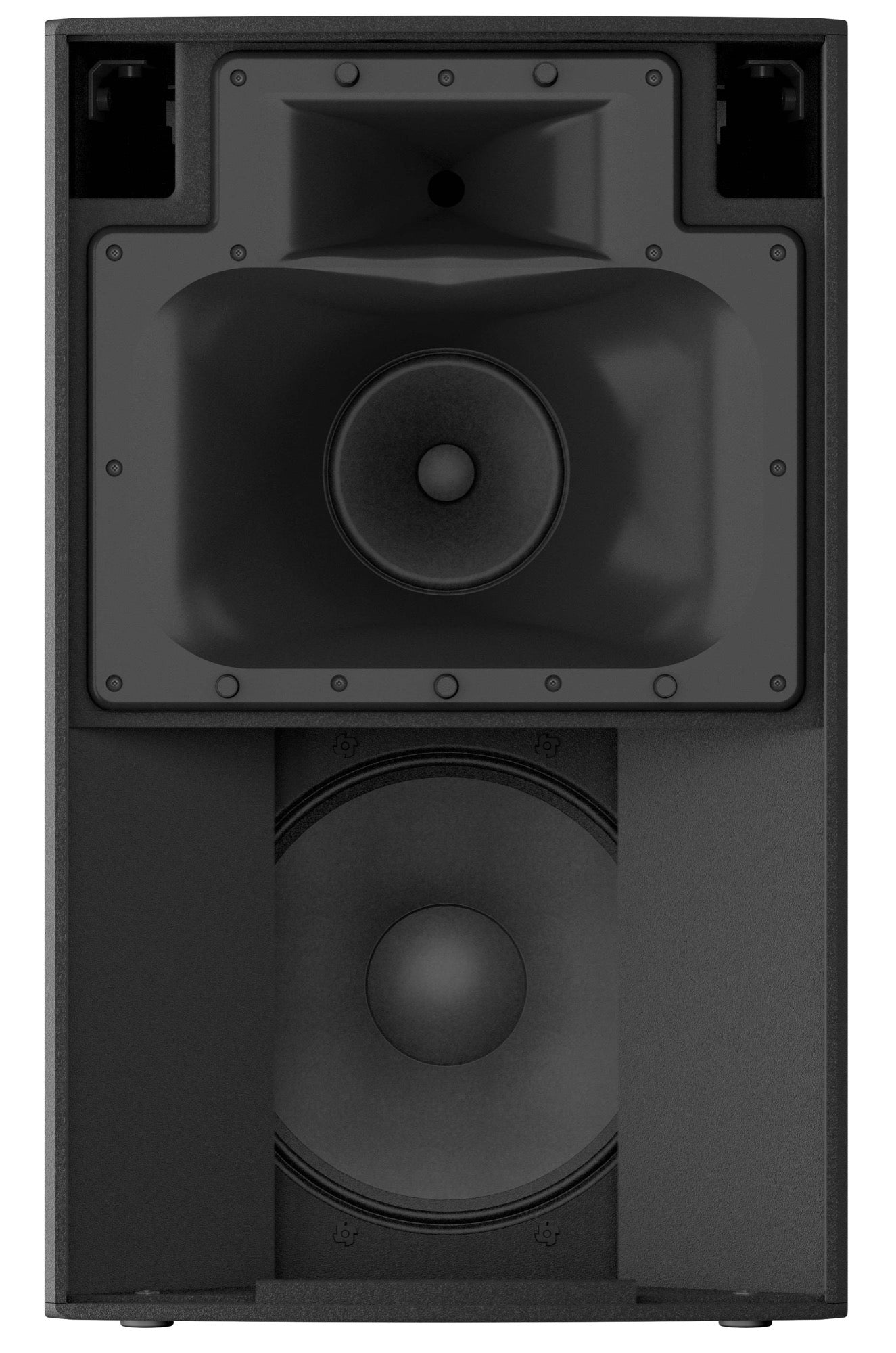

| Components | LF | 15" Cone, 3" Voice Coil, Neodymium magnet |
| MF | 8" Cone, 1.5" Voice Coil, Ferrite magnet | |
| HF | 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet | |
| Crossover |
| 700Hz (FIR-X), 2.5kHz (Passive) |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters |
| 96kHz AD/DA |
| Maximum output level (1m; on axis) |
| 143dB SPL *1 |
| Power rating | Dynamic | 2000W (LF:1000W, MF/HF: 1000W) *2 |
| Continuous | 1300W (LF: 920W, MF/HF: 380W) | |

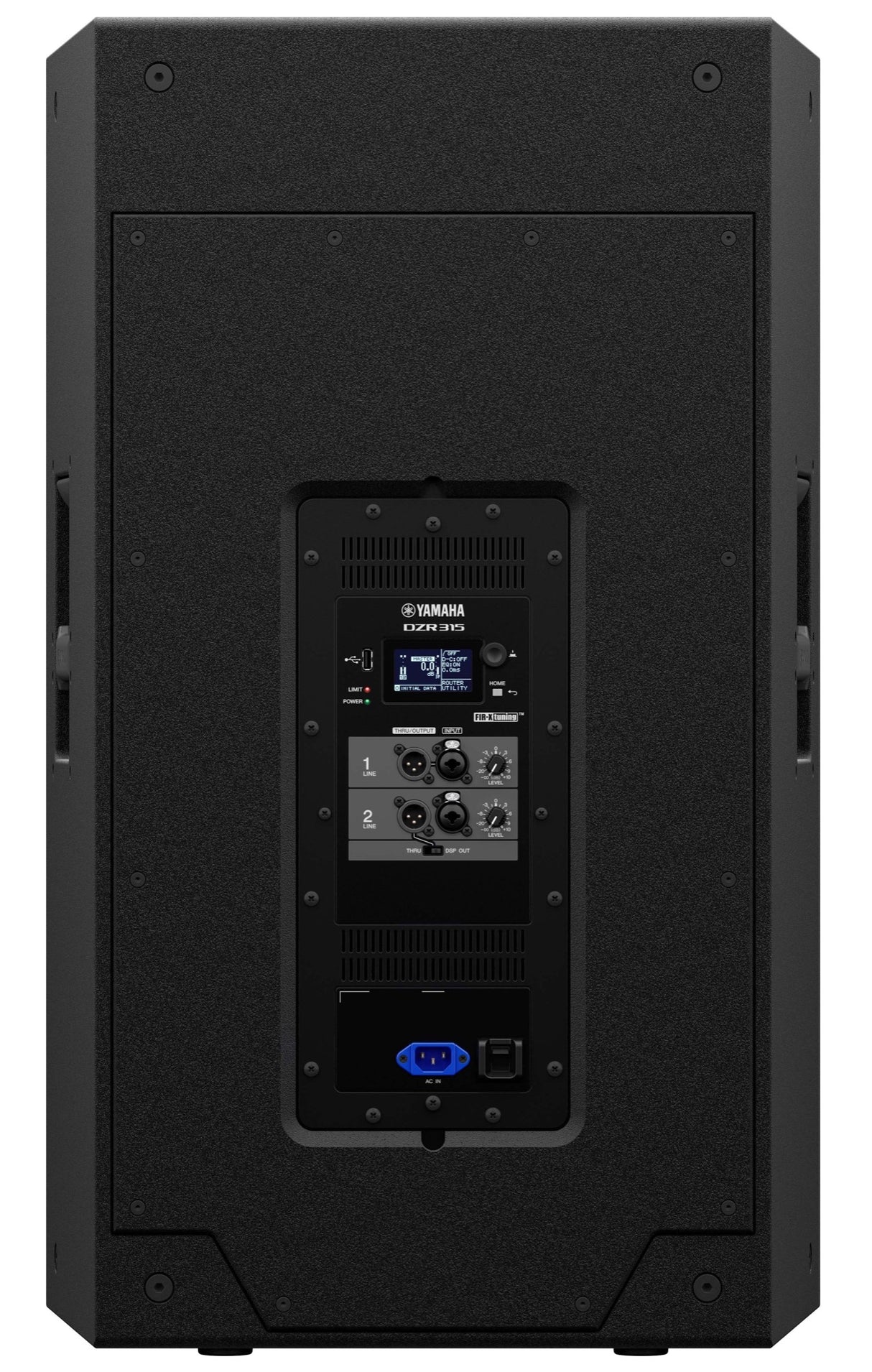

| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class |
| Class-D |
| Cooling |
| Fan cooling, Variable speeds |
| Power consumption |
| 45W (Idle), 150W (1/8) <
Brand: Yamaha
SKU: CDZR315
Weight: 54.0 kg
