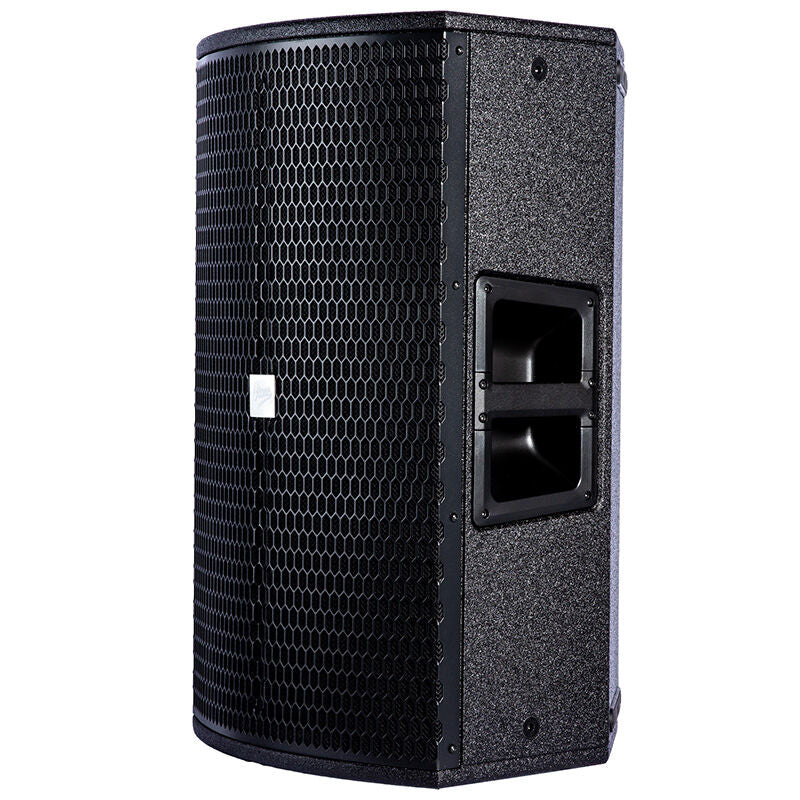

V-TONE NBX-112A Active 12" PA Speaker with DSP

V-TONE NBX-112A is a professional 2-way active loudspeaker with 500W RMS (1000W peak), equipped with a powerful 12” mid-bass driver, 1” tweeter and built-in DSP digital signal processor. The loudspeaker is designed for concerts, live performances, shows, presentations, community halls, clubs and discotheques – as well as for mobile DJs and bands who require reliable, powerful sound.

With a maximum sound pressure capability of up to 128 dB, the NBX-112A delivers impressive performance and high clarity. The wide frequency response ensures a full and detailed reproduction across the entire audible frequency range. A built-in limiter with LED indicator protects the system against distortion and ensures stable operation – even under high load.

The integrated DSP provides flexible sound tailoring via a clear LCD display. The loudspeaker can be configured as a front speaker, floor monitor or satellite speaker. Selection of placement (Field, Monitor, Bracket) and sound mode (Normal, Live, Club, Speech) optimises reproduction for concert use, club environments and speech. The DSP also offers a high-pass filter (HPF) at 150, 120, 100 and 80 Hz.

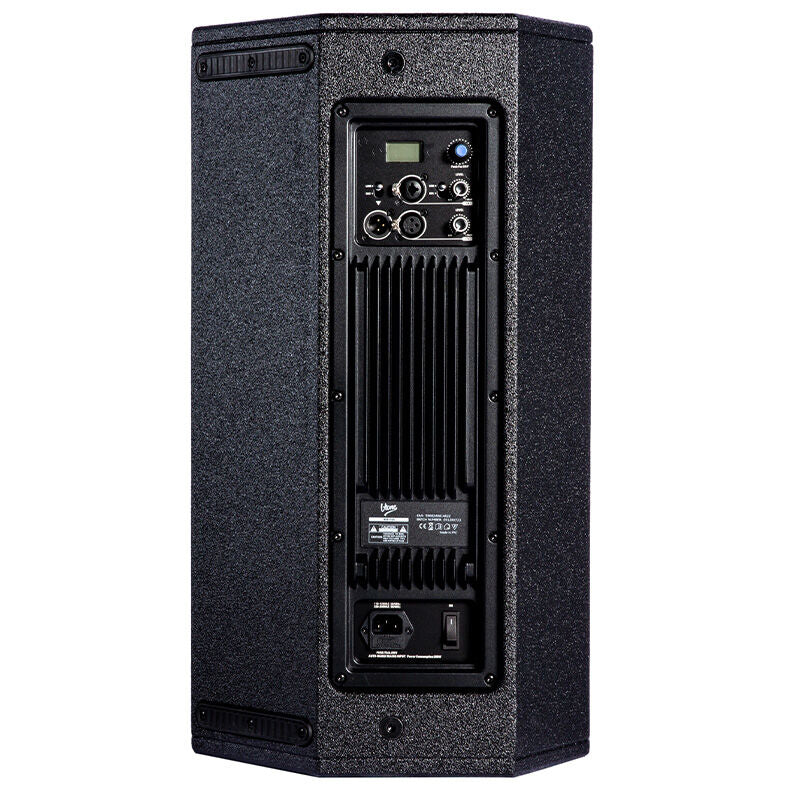

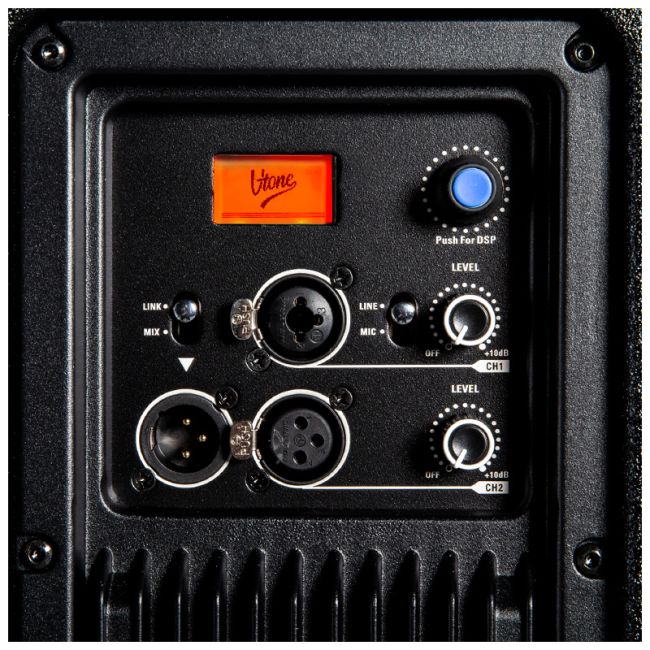

On the rear panel there is a combined mic/line input (XLR/6.35 mm jack), making it possible to connect dynamic microphones, guitars, bass, keyboards, drum machines, CD players and other line equipment. In addition, there is a 3-pin XLR input and XLR output with Link/Mix function. Separate volume controls ensure precise adjustment of input signals.

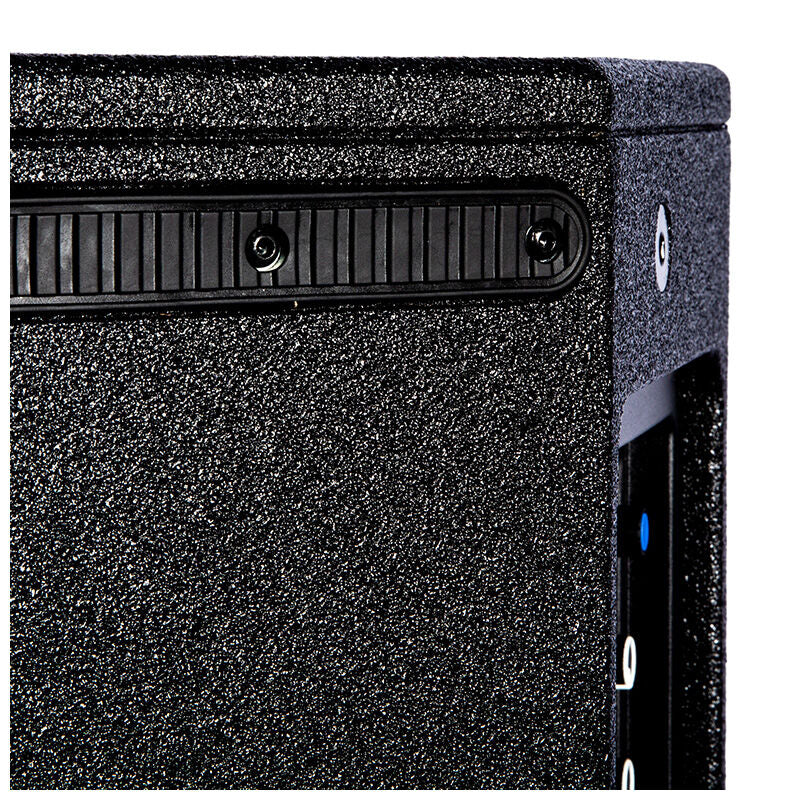

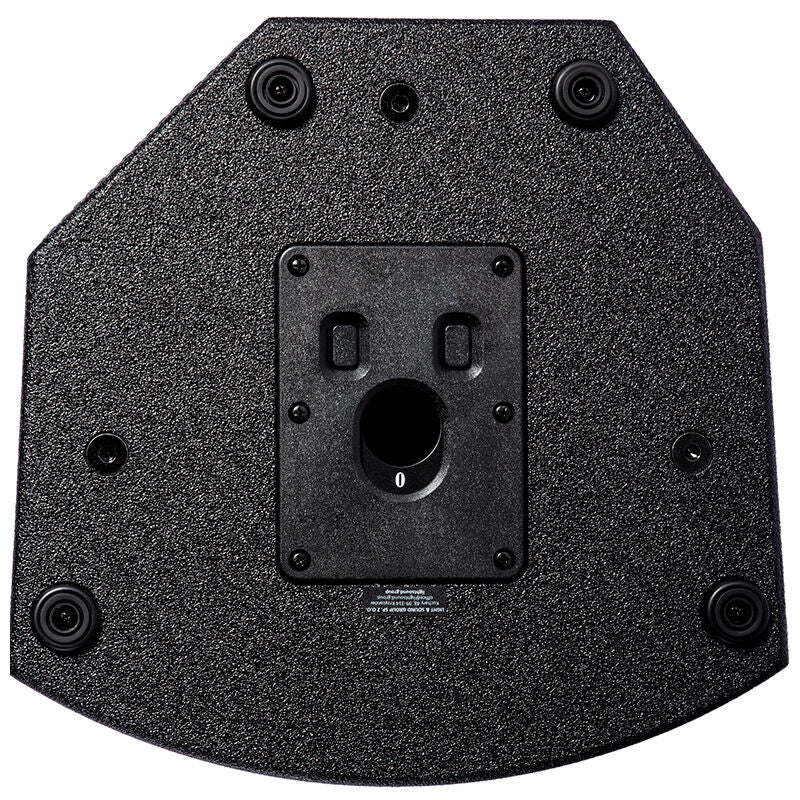

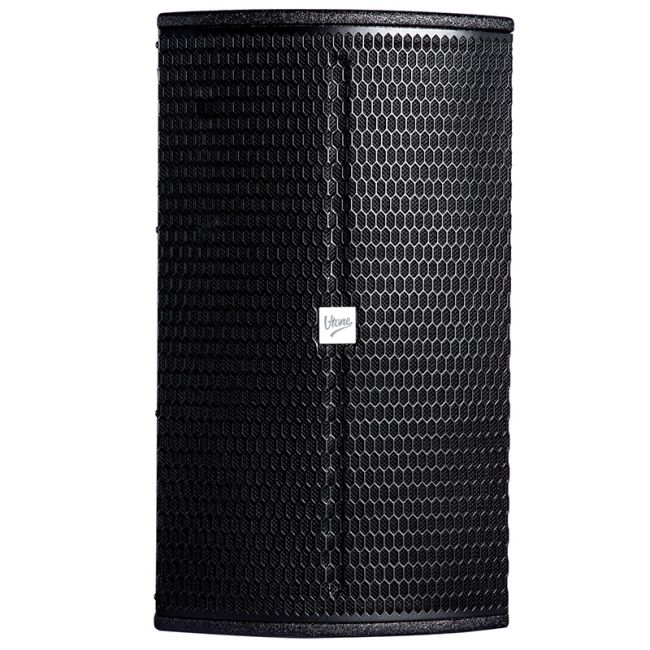

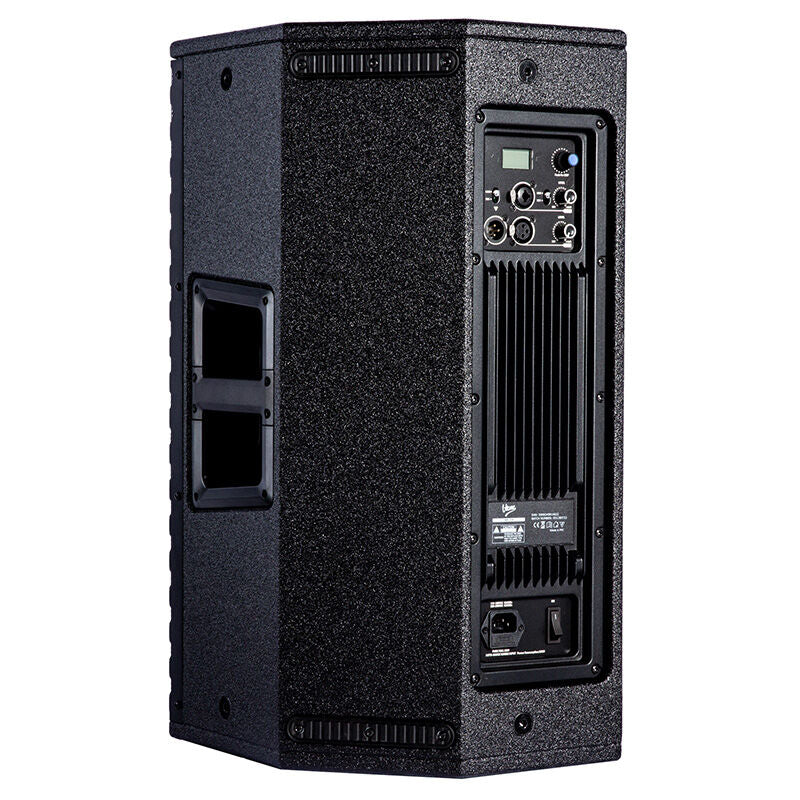

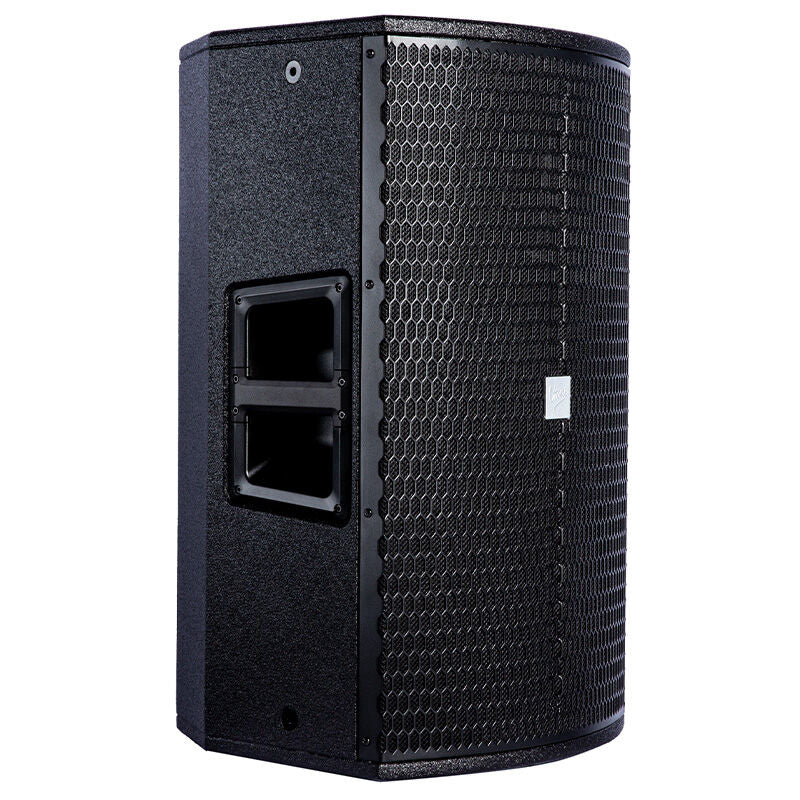

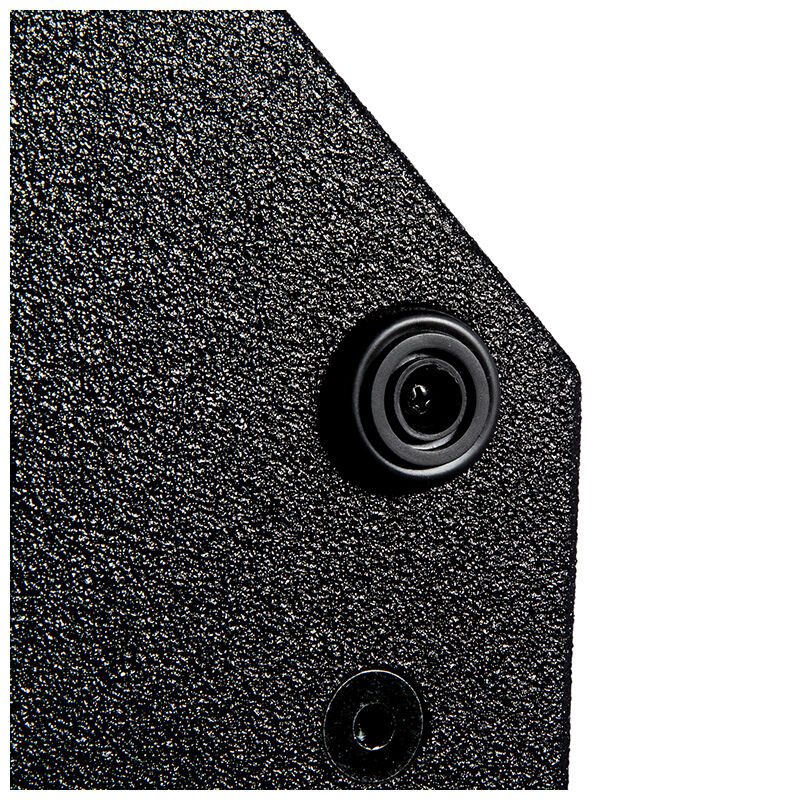

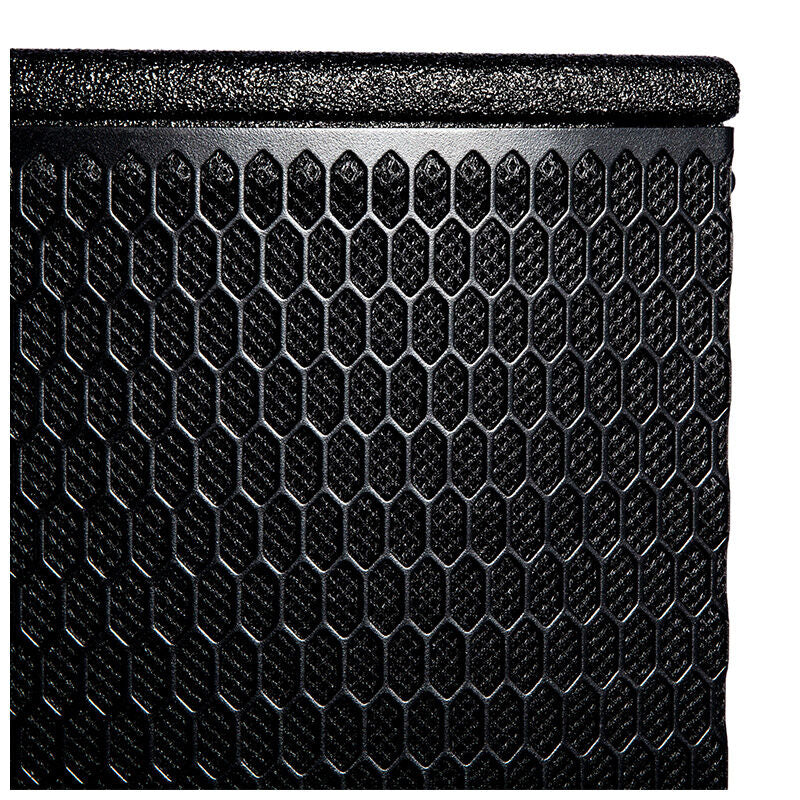

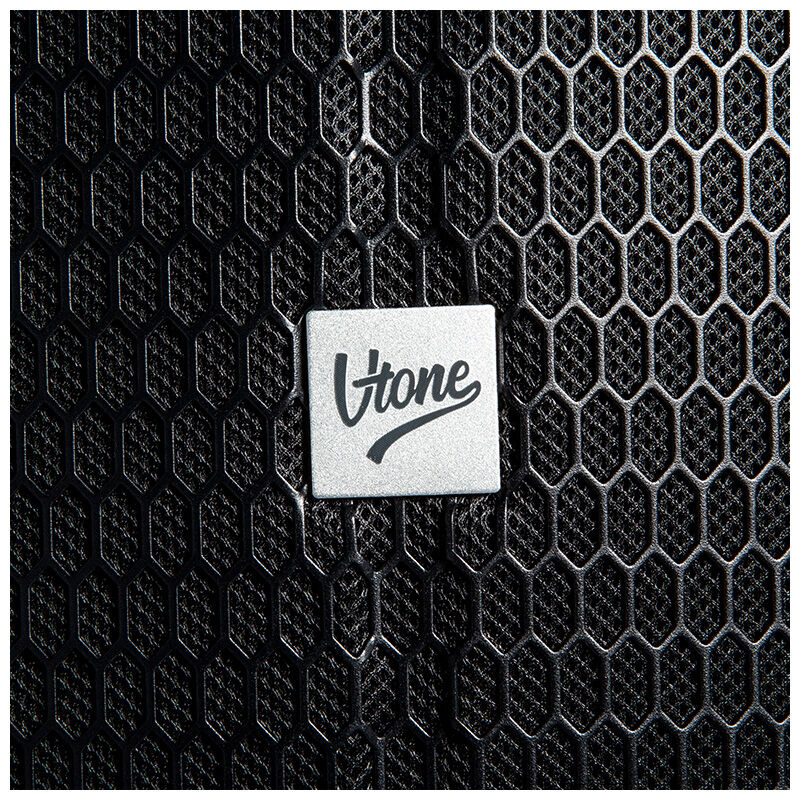

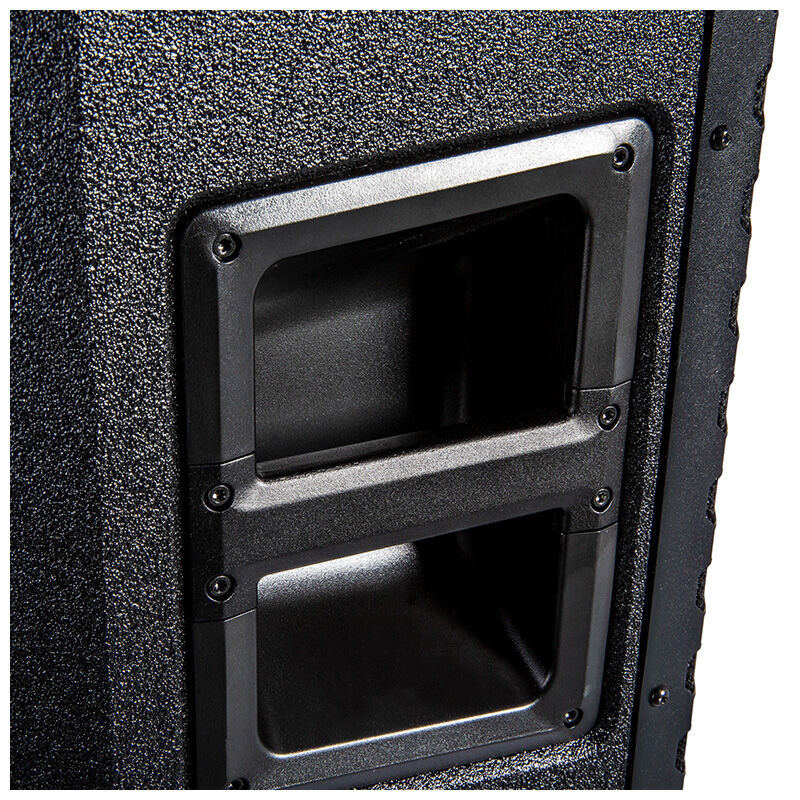

The rugged 15 mm birch plywood cabinet combines low weight with high durability. The loudspeaker can be mounted on a stand via a 35 mm pole mount, and the ergonomic side handles make transport easy. Rubber feet reduce vibrations, and the solid metal grille protects the drivers against dust and mechanical impact.

V-TONE NBX-112A is a versatile, professional choice for both fixed installations and mobile sound solutions.

• Type: 2-vejs aktiv højttaler med DSP
• Effekt: 500W RMS / 1000W peak
• Strømforsyning: AC 100-240V, 50/60 Hz
• Maks. SPL: 128 dB (1W/1M)
• Frekvensområde: 50 Hz – 20 kHz
• Indgangsfølsomhed: -10 dBV
• Bas/mellemtone: 12”
• Tweeter: 1”
• Delefrekvens: 1,9 kHz
• DSP: Ja, med LCD-display
• HPF-indstillinger: 150 / 120 / 100 / 80 Hz
• Indgange: Combo XLR/6,35 mm jack, XLR 3-pin
• Udgange: XLR
• Spredning: 90° (horisontal) / 60° (vertikal)
• Monteringspunkter: 9 x M8

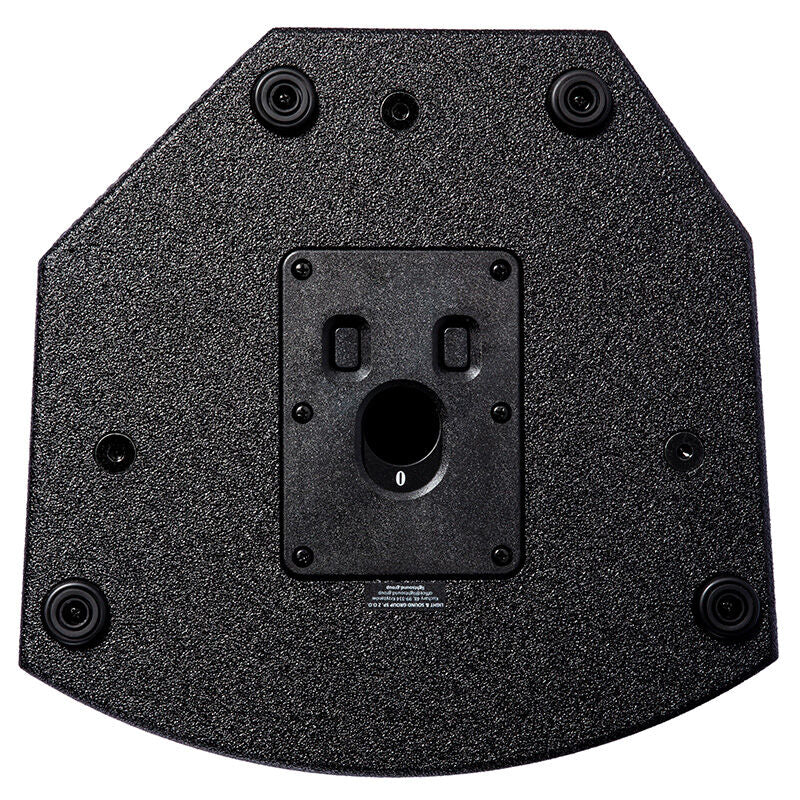

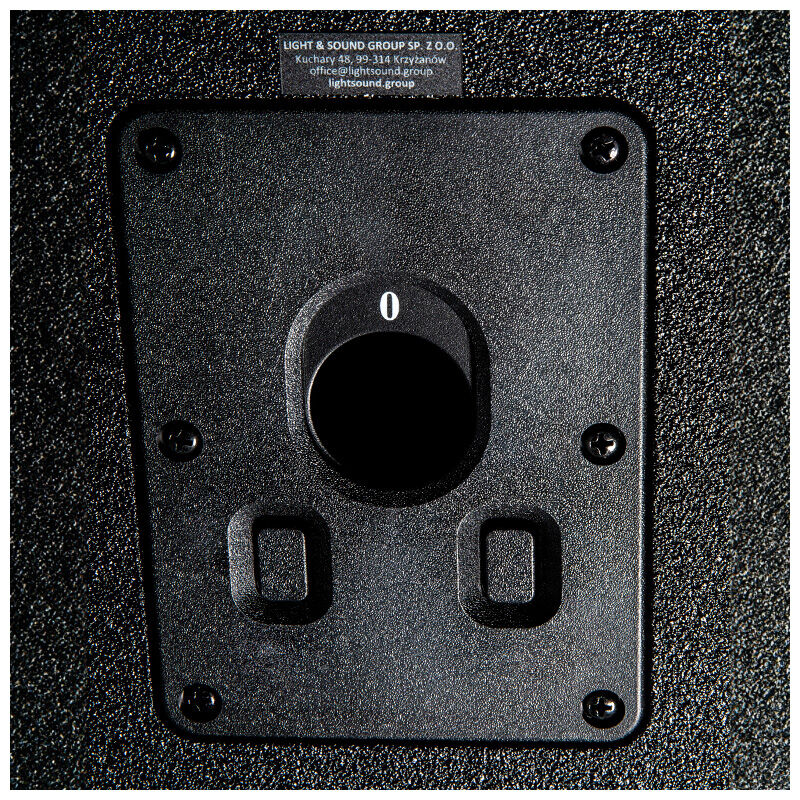

• Stativfatning: 35 mm
• Kabinet: 15 mm birkekrydsfiner

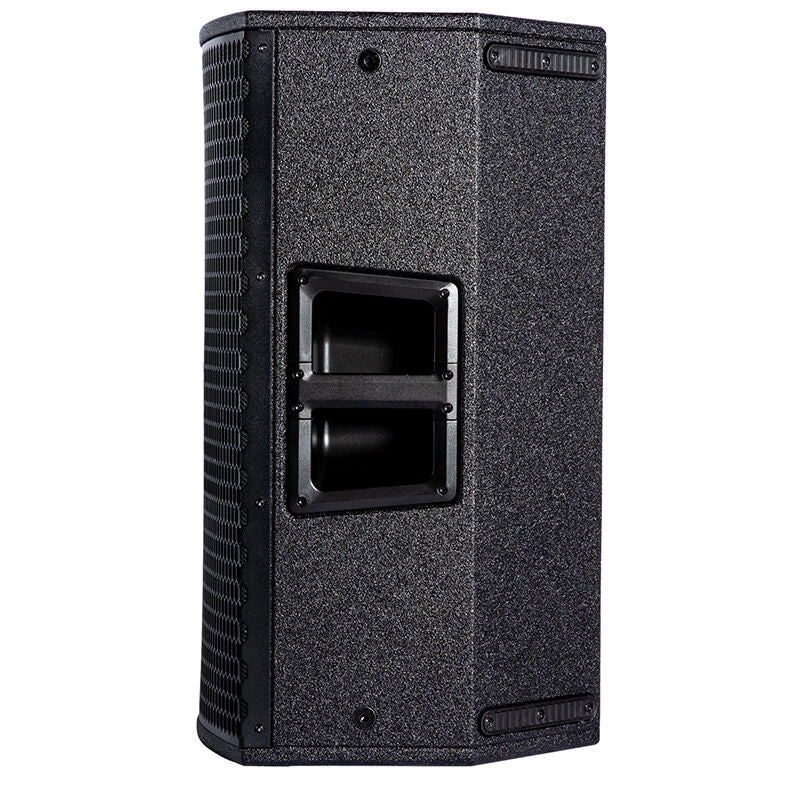

• Håndtag: 2 stk. på siderne
• Mål: 63 x 36 x 35,4 cm
• Vægt: 21 kg
