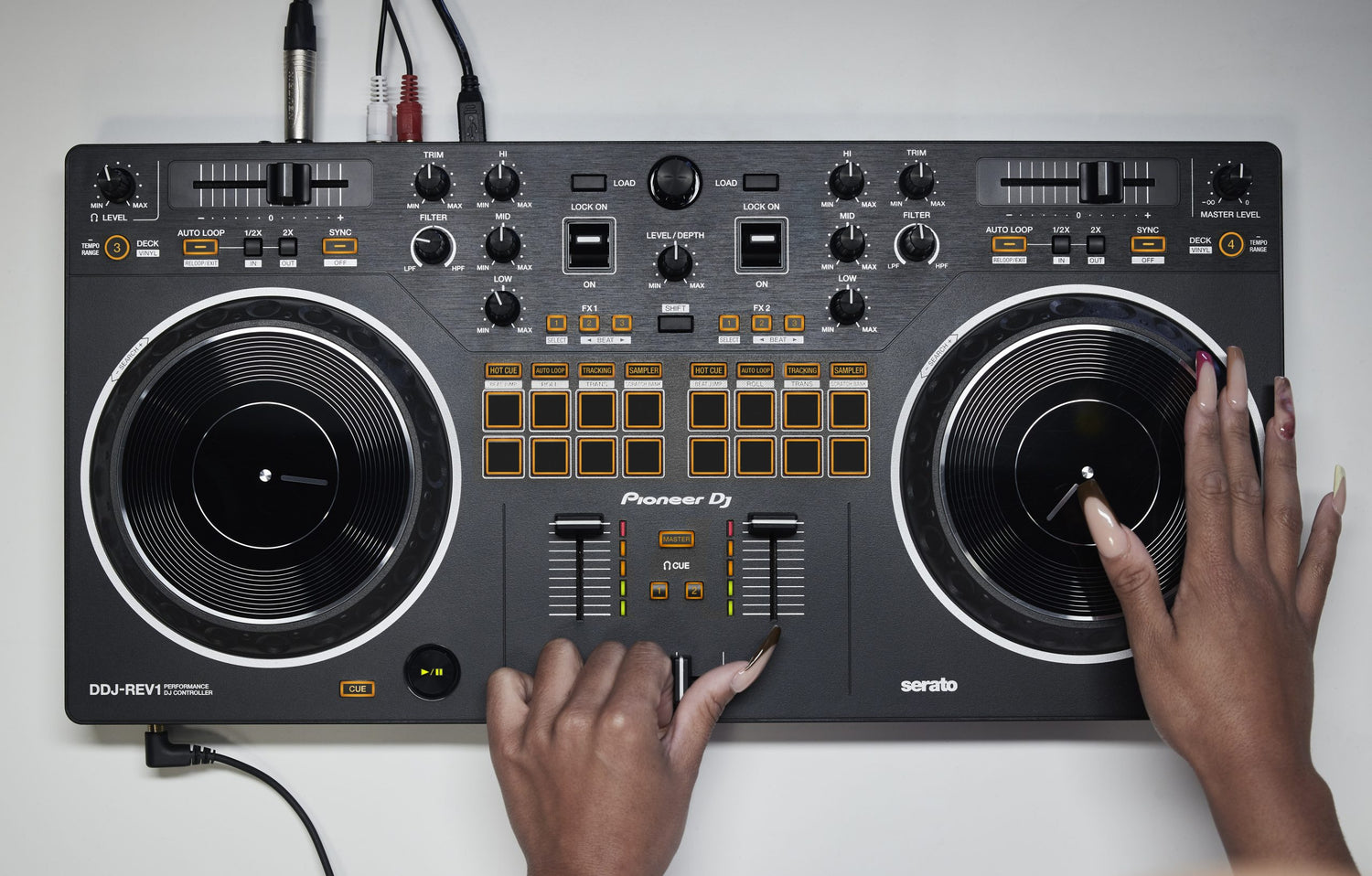

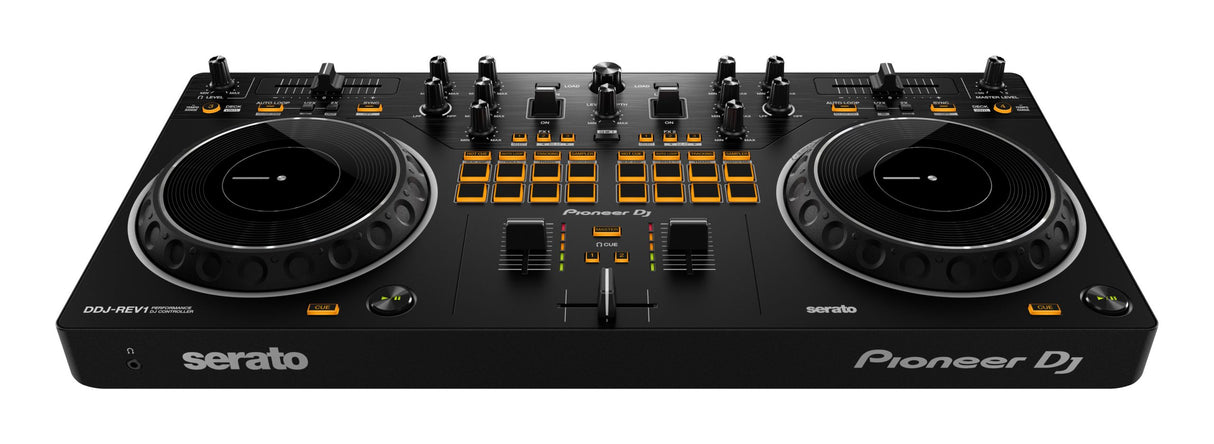

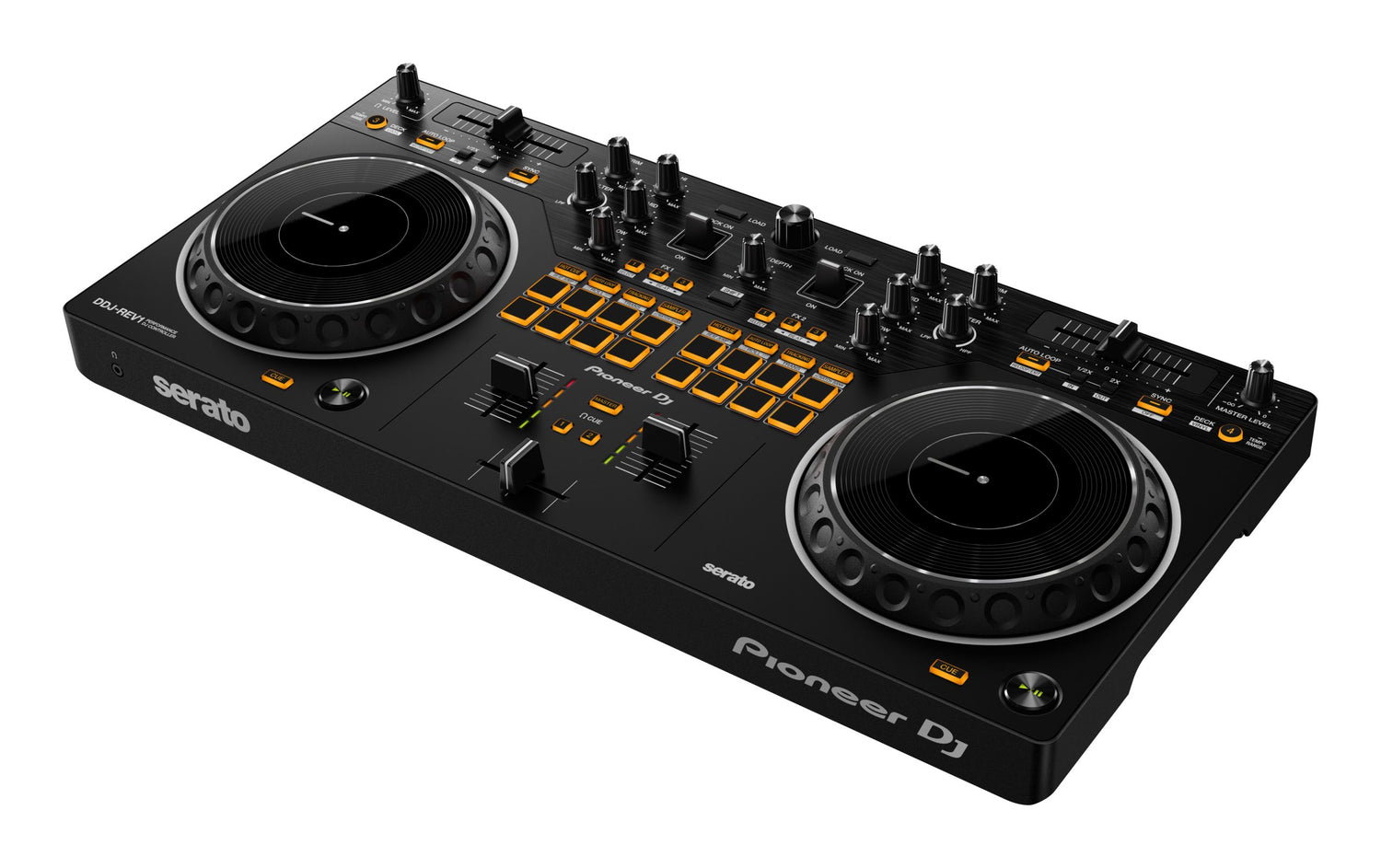

Pioneer DJ DDJ-REV1

• Classic battle-style design
• Plug'n'play USB controller
• Ideal for the quality-conscious beginner
• Horizontal pitch faders
• Larger jog wheels
• Centered performance pads
• 60mm tempo sliders
• Serato DJ Lite version
• Scratch bank
• Lever FX paddles
• Tracking scratch FX

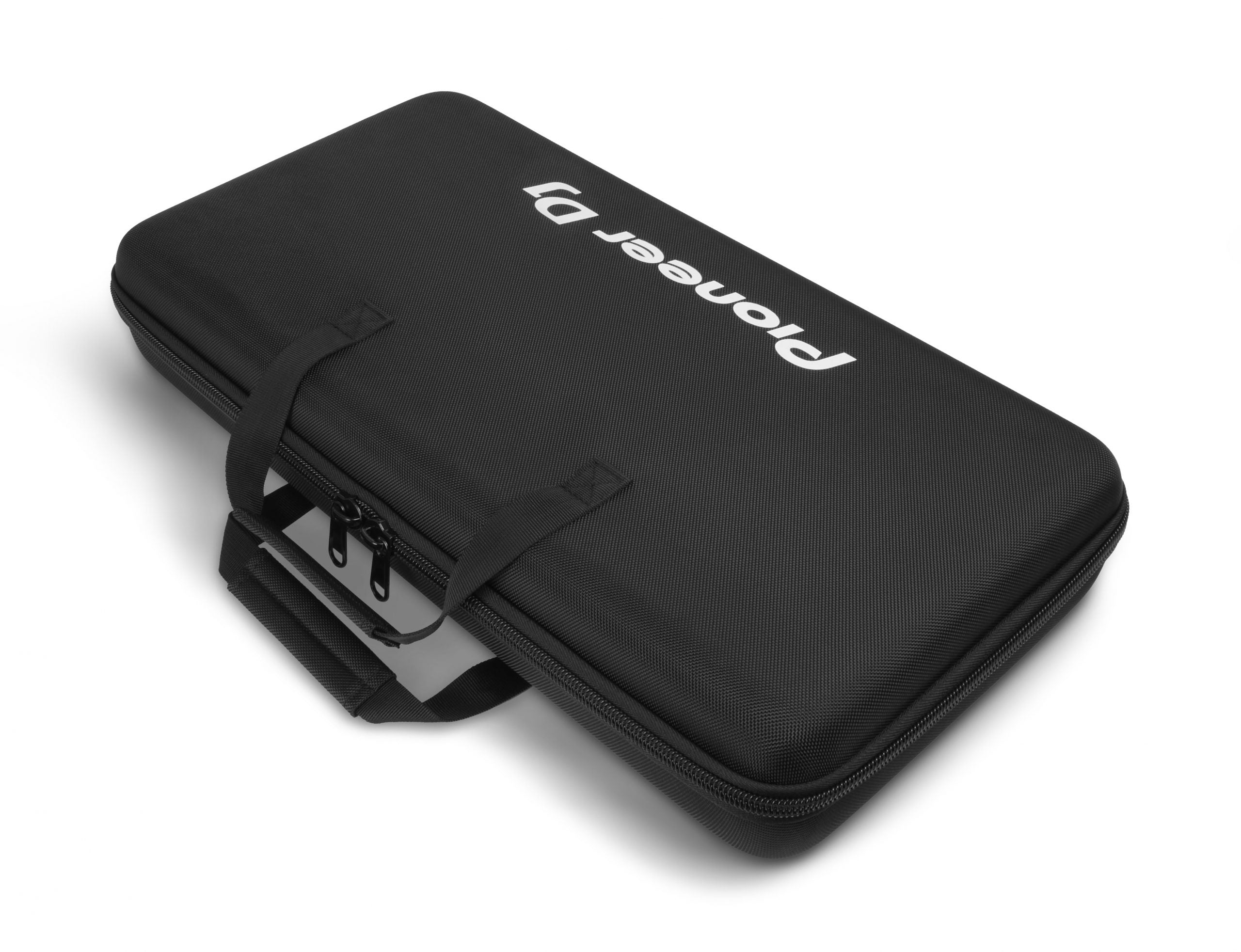

• Carrying case available for purchase

Pioneer DDJ-REV1

• New generation of beginner DJ controllers.
• Classic battle-style design with horizontal pitch faders in PLX turntable style.
• Ready to battle - straight out of the box: with the included Serato DJ Lite software and USB connection, it's pure plug'n'play.
• Serato DJ Lite is packed with plenty of modern and retro samples and sound effects.
• With the Scratch Bank setting, you can instantly load a range of samples to your performance pads from up to 4 sound banks.

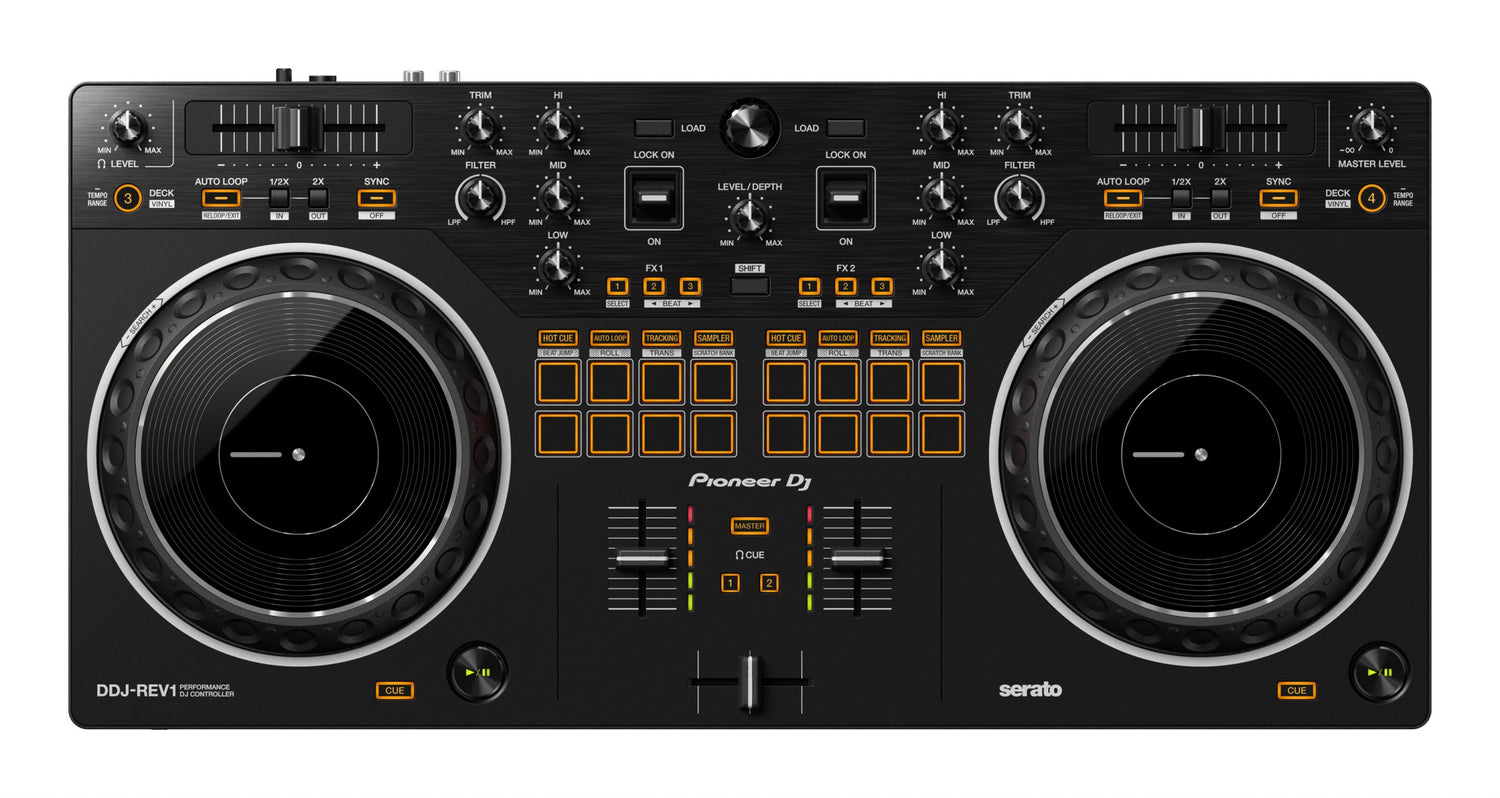

• Intuitive, spacious, and easy layout - centered performance pads, larger jog wheels, and 60mm long tempo sliders.
• The Tracking Scratch function automatically ensures the music returns to the cue point when you spin the wheel forward or lift your hands.
• With Pioneer's unique Lever FX paddles, you can add automatic Serato DJ Lite sound effects, leaving your hands free to scratch or browse the next track.

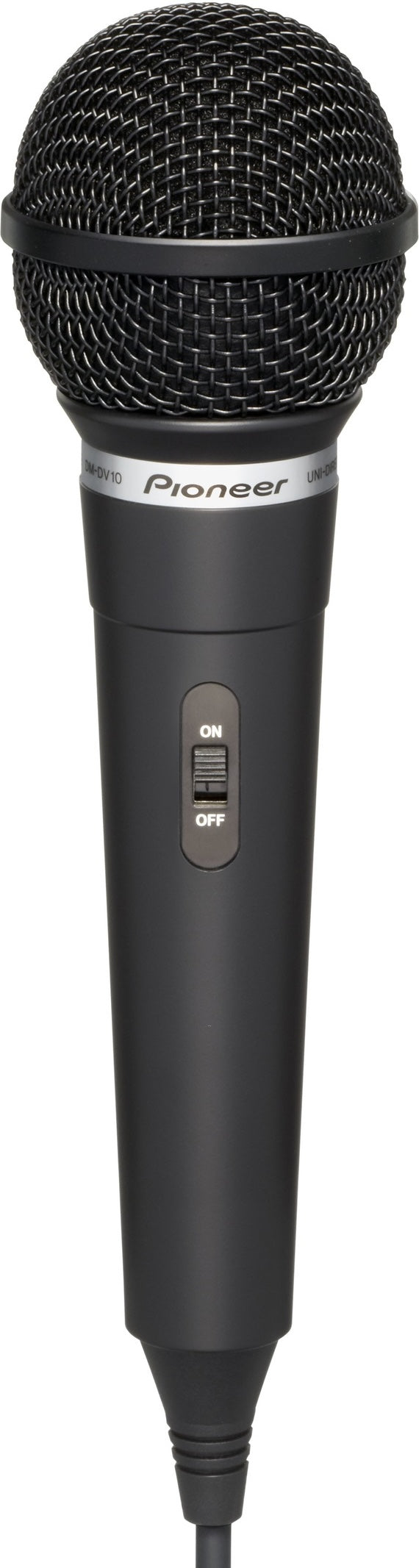

• With Master Audio directly mixed with your microphone input, you don't need additional equipment - the signal goes directly through Serato DJ Lite.
• Serato DJ Lite allows loading up to 4 decks.

Beginner DJ? See our DJ school in 6 episodes

Compatible DJ Software

• Serato DJ Lite
• Serato DJ Pro (License/subscription not included)
• Software System Requirements
• Serato DJ Lite System requirements
• Serato DJ Pro System requirements

Accessories

• DDJ-REV1
• USB cable
• Warranty (for some regions)
• Quick start guide
• Precautions for use

Specifications

• Width: 526 mm
• Height: 59.2 mm
• Depth: 255.5 mm
• Weight: 2.1 kg
• Soundcard: 24 bit/48 kHz
• Signal-to-Noise Ratio: 103 dB
• Distortion: < 0.005 %
• Power Consumption: 5V 500mA
• Weight: 2.1 kg
• Power Supply: USB  Type-B bus powered
• Frequency Range: 20 - 20000 Hz

Performance Control

• Channels: 2
• Deck Control: 4
• Trim knob: Yes
• Jog Wheel (Maximum Dimensions): 154 mm
• Filter: Yes
• Sampler: Yes
• Hot Cues: 4
• Pad Modes: Hot Cue, Auto Loop, Tracking Scratch, Sampler, Trans, Scratch Bank
• Manual Loop: Yes
• Autoloop: Yes

Fader

• Channel Fader Start: Yes
• Crossfader Start: Yes
• Crossfader Curve Adjust: Yes

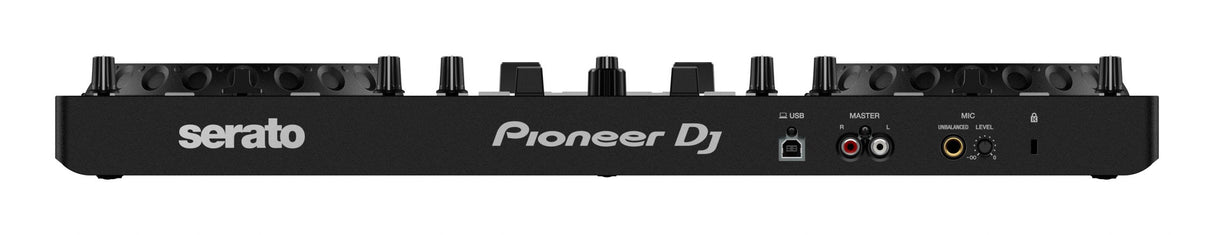

Terminals

• Inputs: 1 MIC (1/4 inch TS Jack)
• Outputs: 1 MASTER (RCA), 1 PHONES (3.5-mm stereo mini jack)

USB

• 1 USB B port

Manual:

• DDJ-REV1 manual EN
