Description

  • The 2M Red series is equipped with an improved motor, which provides an increased output of 5.5mV
  • It features an elliptical diamond and split pole pins with a copper wire

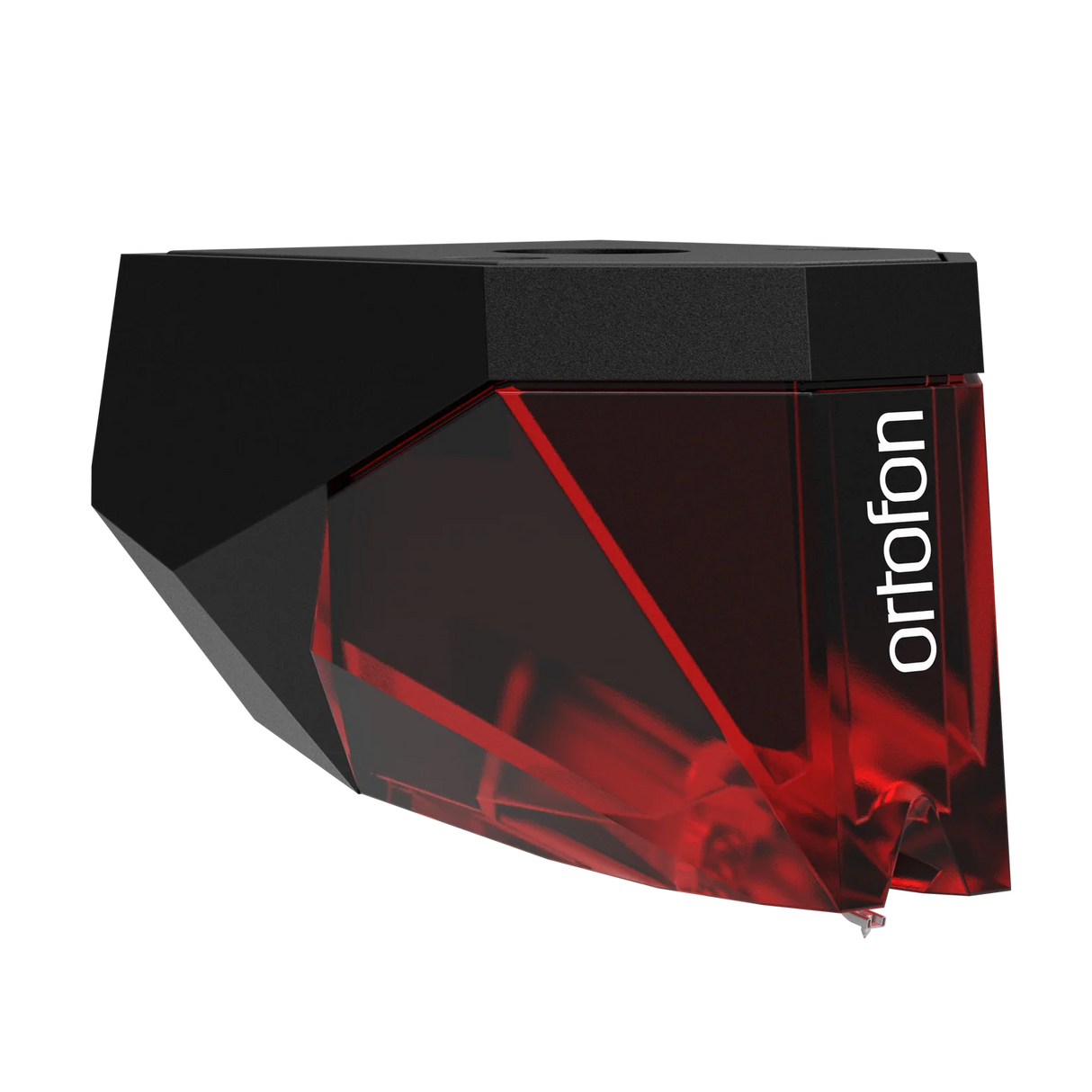

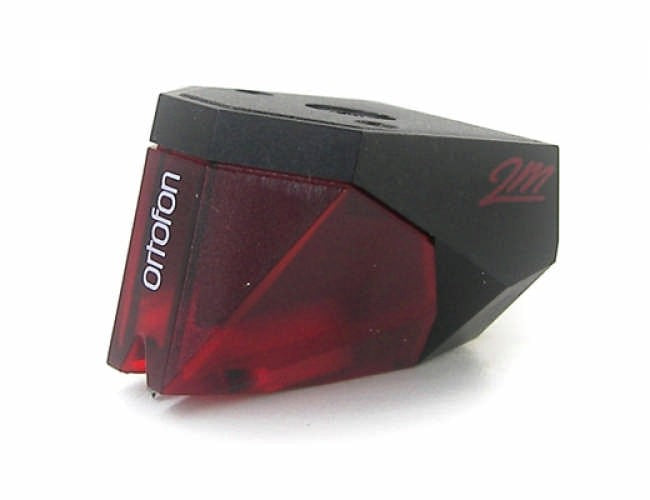

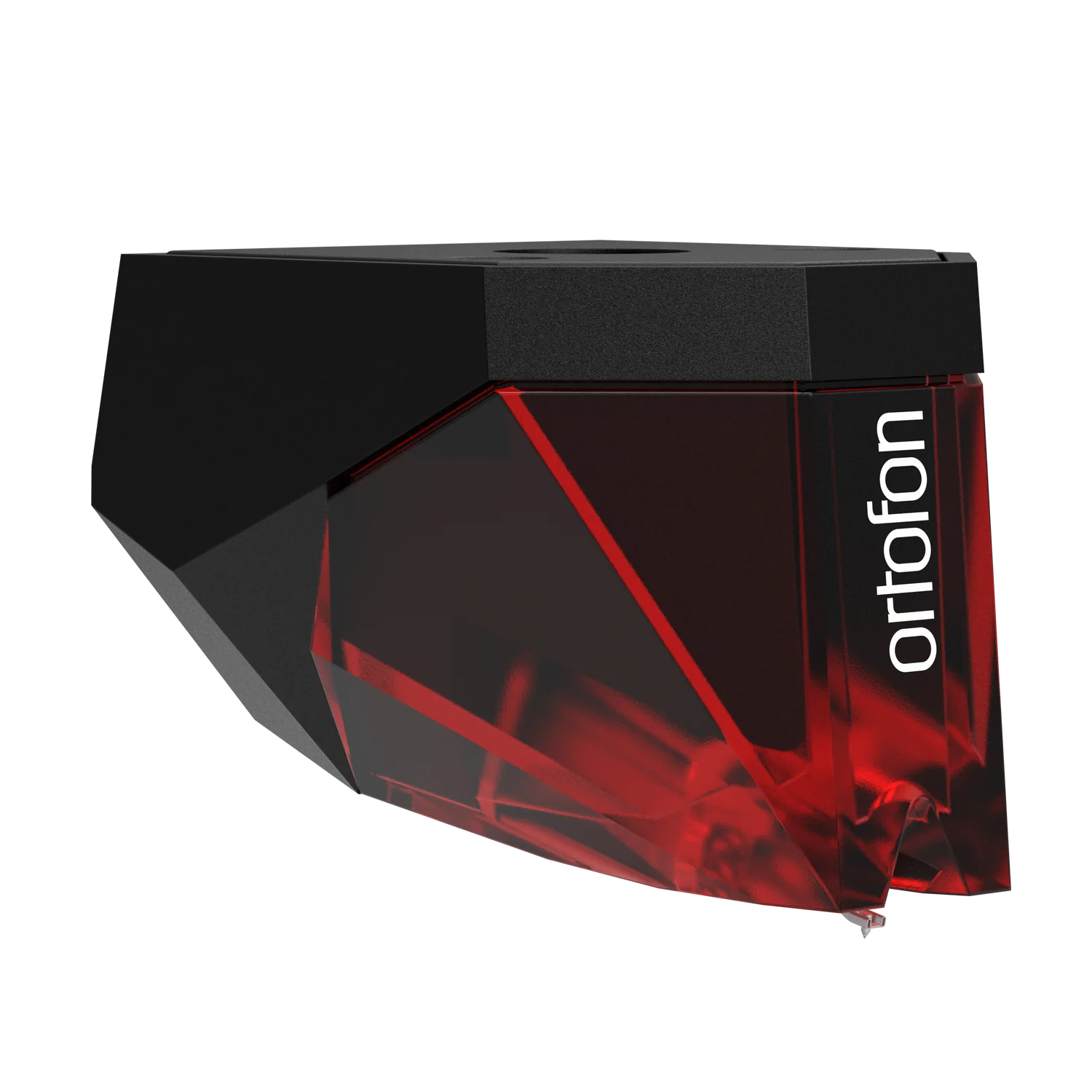

Ortofon 2M Red Pick-up


The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound

The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

The 2M series of cartridges feature Ortofon?s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.

Specifications

  • Weight (kg)
    0.1

More specifications

Output voltage at 1000 Hz, 5cm/sec. 5.5 mV
Channel balance at 1 kHz  1.5 dB
Channel separation at 1 kHz 22 dB
Channel separation at 15 kHz 15 dB
Frequency range at - 3dB 20-22.000 Hz
Frequency response 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force 70 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1.6-2.0g (16-20 mN)
Tracking force, recommended 1.8 g (18 mN)
Tracking angle 20°
Internal impedance, DC resistance 1.3 kOhm
Internal inductance 700 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Red
Cartridge weight 7,2 g
Replacement stylus unit 2M Red  (interchangeable with 2M Blue)
Stylus protection guard 2M Red

Brand: Ortofon
SKU: 560001
Barcode: 4039373023411
Weight: 0.1 kg
