Yamaha MG16XU Live Mixer

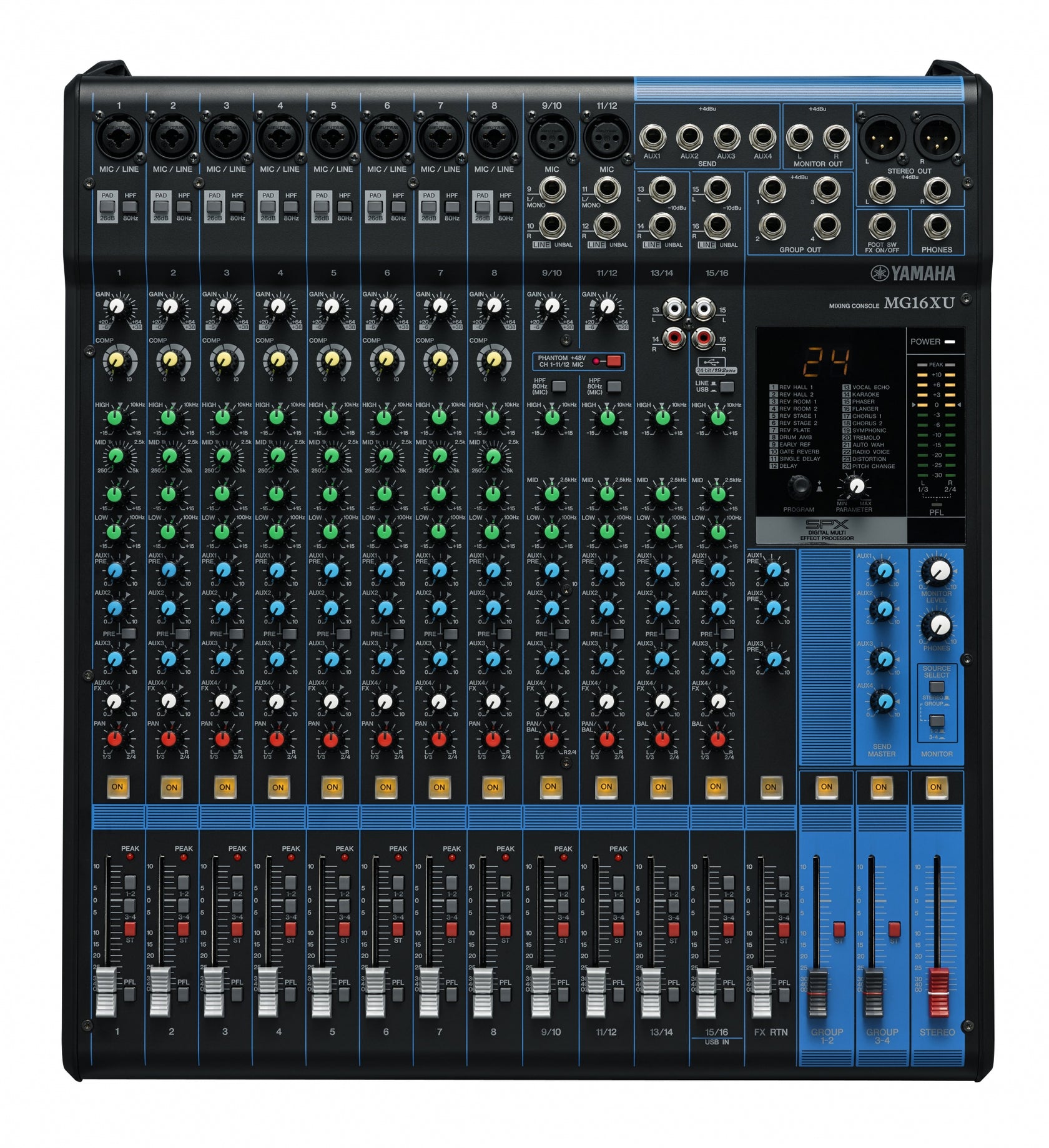

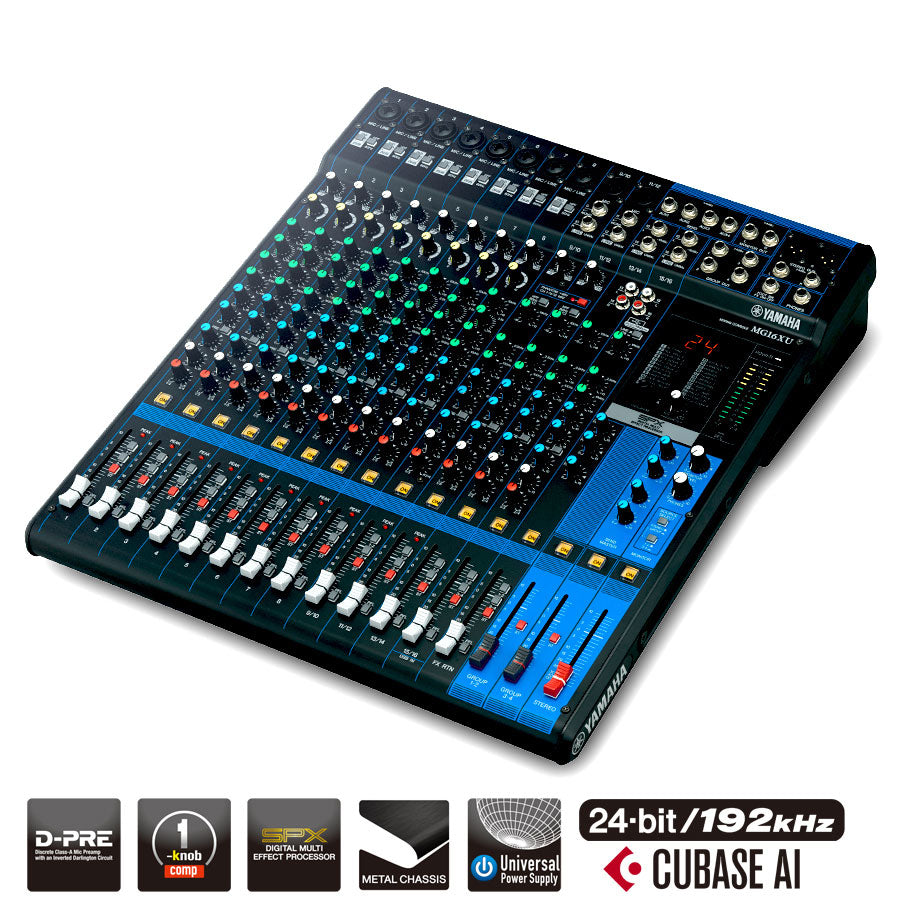

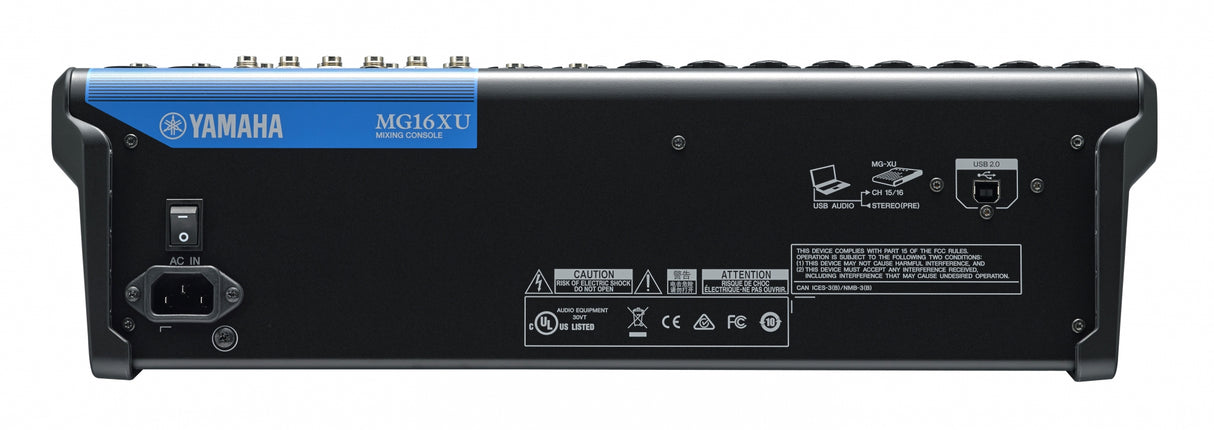

Yamaha The MG16XU is a 16-channel live mixer with 10 mic/16 line inputs (8 mono + 4 stereo), 4 AUX sends, compressors, 48 V phantom power, PAD switch on mono inputs, 3-band EQ, and high pass filter to eliminate low frequencies.

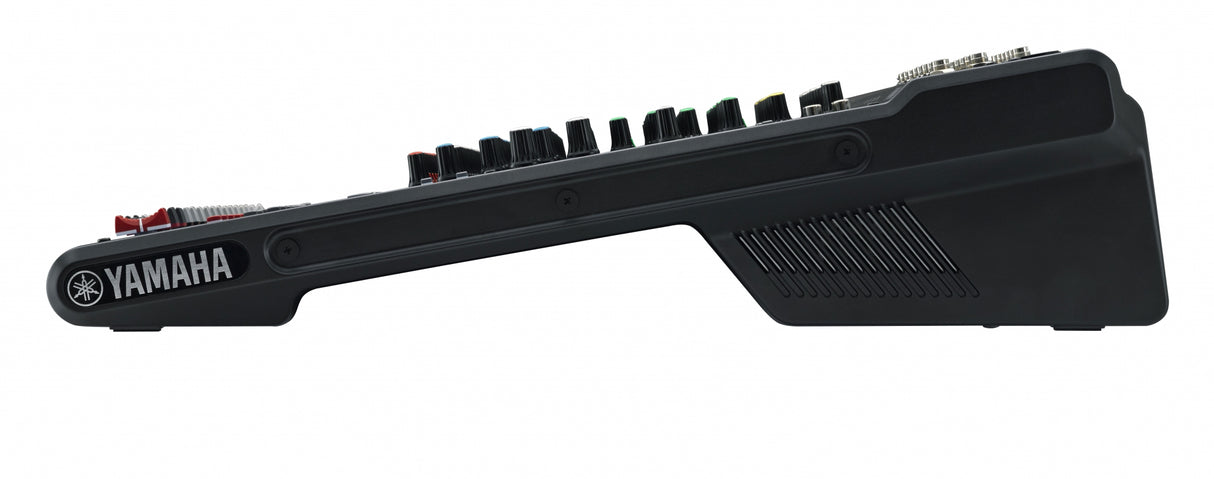

MG models are all built with powder-coated metal chassis that make the mixer rugged and durable, while the design acts as passive cooling for components.
D-PRE mic preamps
D-PRE mic preamps use inverted Darlington circuitry with two transistors in cascade, giving Yamaha MG16XU more power and lower impedance. The preamp also has particularly wide frequency response, enabling the mixer to amplify all audio signals.
24 SPX effects + Cubase AI DAW software
Yamaha The MG16XU is equipped with 24 adjustable SPX digital effects that help make your mix truly unique. You'll find high-resolution chorus, flanger, distortion, reverb and delay, all of which have parameters that can be adjusted as needed.
Yamaha The MG16XU also comes licensed with Cubase AI DAW software, giving you more tools for music production.
Specifications | |
Outline | |
| Mixing capability, On-board processors | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| Phantom Power I/O | +48 V |
| Digital I/O | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
Input Channels | |
| Mono[MIC/LINE] | 8 |
| Mono/Stereo[MIC/LINE | 2 |
| Stereo[LINE] | 2 |
Output Channels | |
| STEREO OUT | 2 |
| MONITOR OUT | 1 |
| PHONES | 1 |
| AUX SEND | 4 |
| GROUP OUT | 4 |
| Bus | Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) |
Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
General Specifications | |
| Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk | -78 dB |
| Power requirements | AC 100 – 240 V, 50 / 60 Hz |
| Power consumption | 30 W |
| Width | 444 mm (17.5") |
| Height | 130 mm (5.1") |
| Depth | 500 mm (19.7") |
| Net weight | 6.8 kg (15.0 lbs.) |
| Accessories | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5 |
| Others | Operating Temperature: 0 to +40˚C |
