Description
Description
- 20-channel live mixer
- 16 mic/ 20 line inputs
- PAD switch + phantom power
- D-PRE mic preamps + compressors
- 24 built-in effects

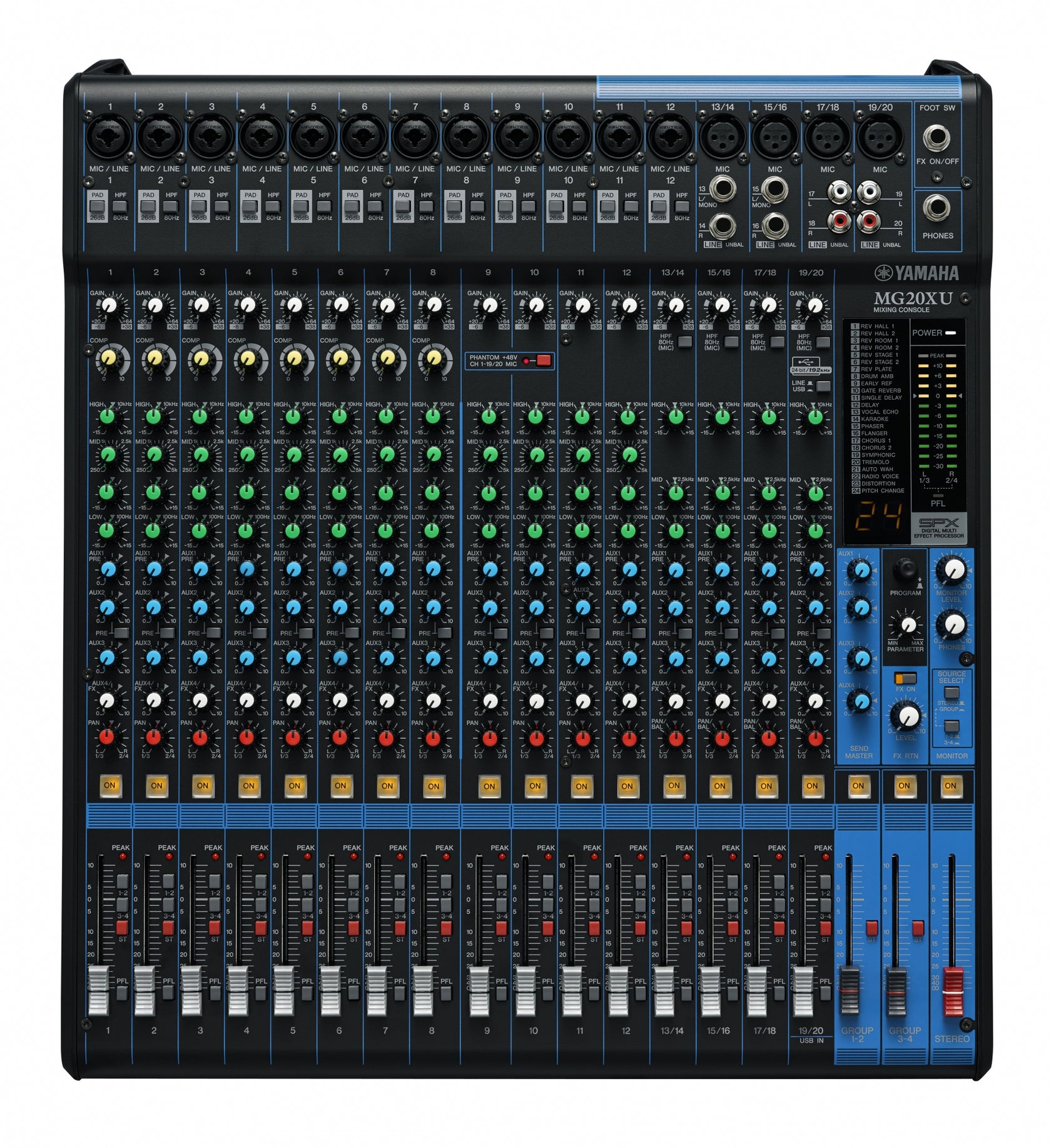

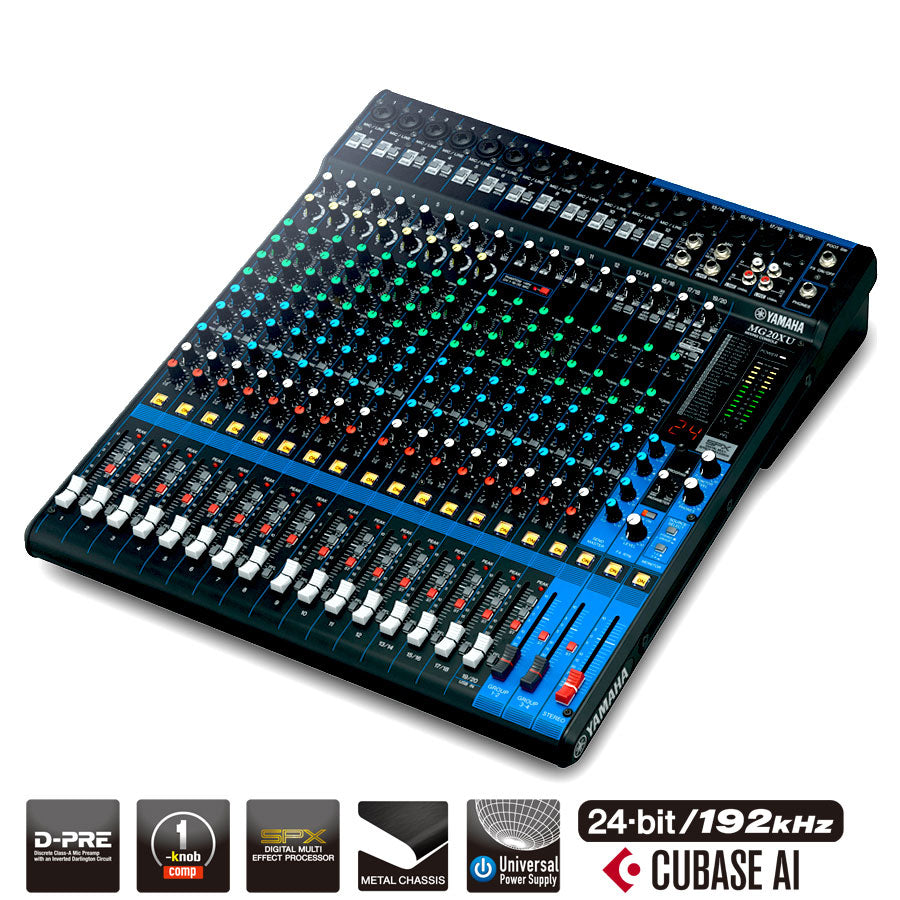

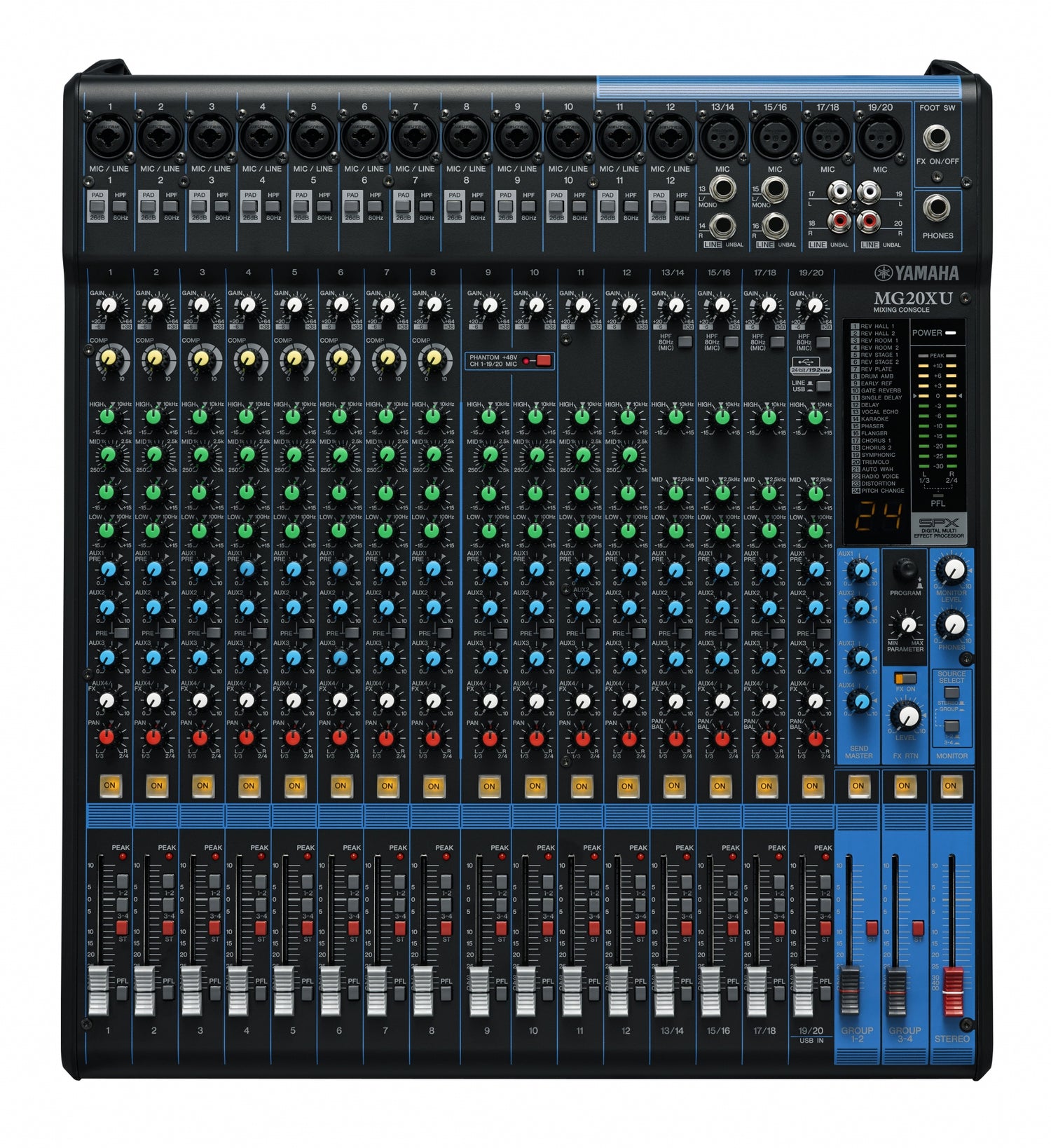

Yamaha MG20XU Live Mixer
Yamaha The MG20XU is a 20-channel live mixer with 16 mic/ 20 line inputs (12 mono + 4 stereo), 4 GROUP busses, 4 AUX, 1-button compressors, PAD switch on mono inputs, 48 V phantom power, 3-band EQ and high pass filter that minimizes unwanted low frequency sounds for a cleaner mix.
The MG20XU model is compatible with iPad 2 or later and comes with Cubase AI DAW software for music production.
D-PRE mic preamps
Yamaha The MG20XU is equipped with Class A D-PRE mic preamps with operational amplifiers that use inverted Darlington circuitry for more power with lower impedance. The D-PRE preamp has wide frequency response to handle all audio signals.
SPX with 24 effects
The MG20XU sets Yamaha MG20 apart by having the SPX digital effects processor built in, giving the mixer a choice of 24 different effects for mixing. You get chorus, flanger, distortion, reverb, delay and more, all of which have adjustable parameters that can be tailored to your unique mix.
Technical specifications
Technical specifications
Features | |
| 20-Channel Mixing Console | |
| Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo) | |
| 4 GROUP Buses + 1 Stereo Bus | |
| 4 AUX (incl. FX) | |
| “D-PRE” mic preamps with an inverted Darlington circuit | |
| 1-Knob compressors | |
| High-grade effects: SPX with 24 programs | |
| 24-bit/192kHz 2in/2out USB Audio functions | |
| Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter | |
| Includes Cubase AI DAW software download version | |
| PAD switch on mono inputs | |
| +48V phantom power | |
| XLR balanced outputs | |
| Internal universal power supply for world-wide use | |
| Rack Mount Kit Included | |
| Metal chassis | |
Outline | |
| Mixing capability | |
| On-board processors: | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| I/O | |
| Phantom power: | +48 V |
| Digital I/O: | USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
| Input Channels | |
| Mono[MIC/LINE]: | 12 |
| Mono/Stereo[MIC/LINE]: | 4 |
| Output Channels | |
| STEREO OUT: | 4 |
| MONITOR OUT: | 4 |
| PHONES: | 1 |
| AUX SEND: | 4 |
| GROUP OUT: | 4 |
| Bus: | Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) |
| Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) |
| Threshold: | +22 dBu to -8 dBu |
| Ratio: | 1:1 to 4:1 |
| Output level: | 0 dB to 7 dB |
| Attack time: | approx. 25 msec |
| Release time: | approx. 300 msec |
| EQ HIGH | |
| Gain: | +15 dB/-15 dB |
| Frequency: | 10 kHz shelving |
| EQ MID | |
| Gain: | +15 dB/-15 dB |
| Frequency: | Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking |
| EQ LOW | |
| Gain: | +15 dB/-15 dB |
| Frequency: | 100 Hz shelving |
| PEAK LED: | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter: | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
General specifications | |
| Total harmonic distortion: | 0.03 % @ +14dBu (20 Hz to 20kHz) |
| GAIN knob: | Min, 0.005 % @ +24dBu (1kHz) |
| GAIN knob: | Min |
| Frequency response: | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, |
| GAIN knob: | Min |
| Hum & noise level | |
| Equivalent input noise: | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise: | -102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk: | -78 dB |
| Power requirements: | AC 100 – 240 V, 50 / 60 Hz |
| Power consumption: | 36 W |
| Dimensions (WxHxD): | 444 mm (17.5") x 130 mm (5.1") x 500 mm (19.7") |
| Net weight: | 7.1kg (15.7 lbs.) |
| Included Accessory: | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5 |
| Others: | Operating Temperature: 0 to +40˚C |
