Yamaha MG16 - Mixer
Similar products:
- 16-channel live mixer
- 10 mic/16 line inputs
- D-PRE mic preamps with op amps
- Compressor for modifying audio signals
- Rugged metal chassis

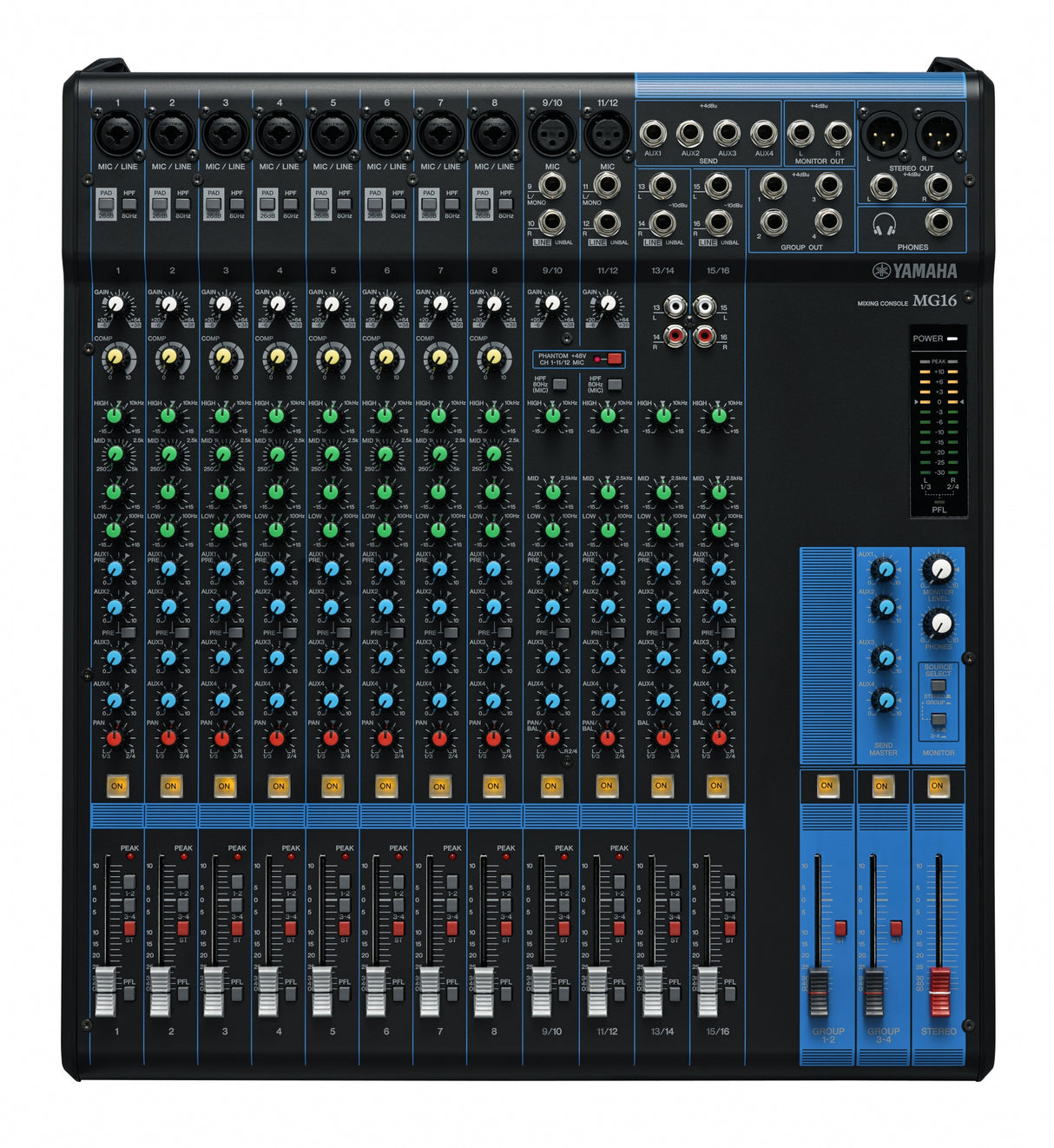

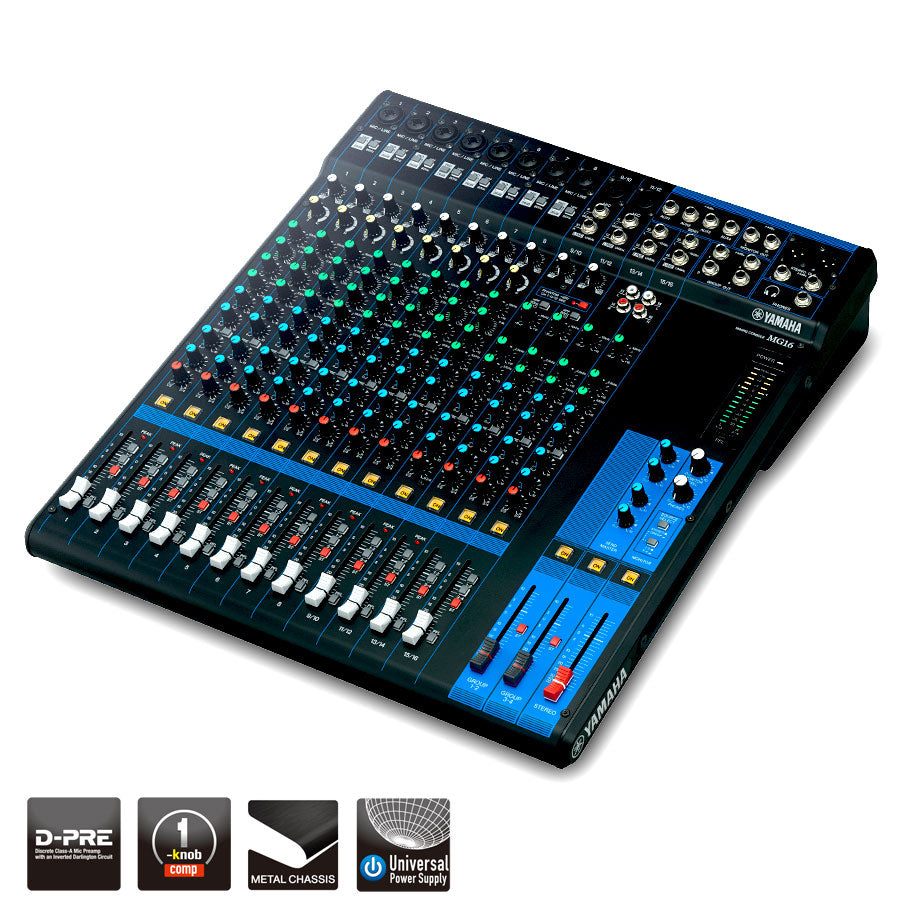

Yamaha MG16 Live Mixer
Yamaha The MG16 is a 16-channel live mixer with 10 mic/16 line inputs (8 mono + 4 stereo), 4 AUX sends, 48 V phantom power, PAD switch on mono inputs, 3-band EQ and high pass filter for mix sound optimization.
The MG16 is built in a robust powder-coated metal chassis, ensuring durability and passive cooling of components.
D-PRE mic preamps
Yamaha MG16 is equipped with class A D-PRE mic preamps with operational amplifiers that provide lower impedance and more power. The D-PRE preamp has a wide frequency response to handle signals from all audio sources.
1-button compressors
With built-in 1-button compressors on the Yamaha MG16, you can change the dynamics of audio signals, adapting the signal for guitars, basses, drums and more, at the turn of a single knob.
Specifications | |
Outline | |
| Phantom power I/O | +48 V |
Input Channels | |
| Mono[MIC/LINE] | 8 |
| Mono/Stereo[MIC/LINE] | 2 |
| Stereo[LINE] | 2 |
Output Channels | |
| STEREO OUT | 2 |
| MONITOR OUT | 1 |
| PHONES | 1 |
| AUX SEND | 4 |
| GROUP OUT | 4 |
| Bus | Stereo: 1, GROUP: 4, AUX: 4 |
Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
General specification | |
| Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk | -78 dB |
| Power requirements | AC 100 – 240 V, 50 / 60 Hz |
| Power consumption | 30 W |
| Width | 444 mm (17.5") |
| Heigth | 130 mm (5.1") |
| Depth | 500 mm (19.7") |
| Net weight | 6.6 kg (14.6 lbs.) |
| Accessories | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit |
| Others | Operating Temperature: 0 to +40˚C |
