Description
Description
- 10-channel mixer with phantom power
- D-PRE mic preamps with operational amplifiers
- 1-button compressors
- 3-band EQ and high pass filters
- Wide range of input and output options

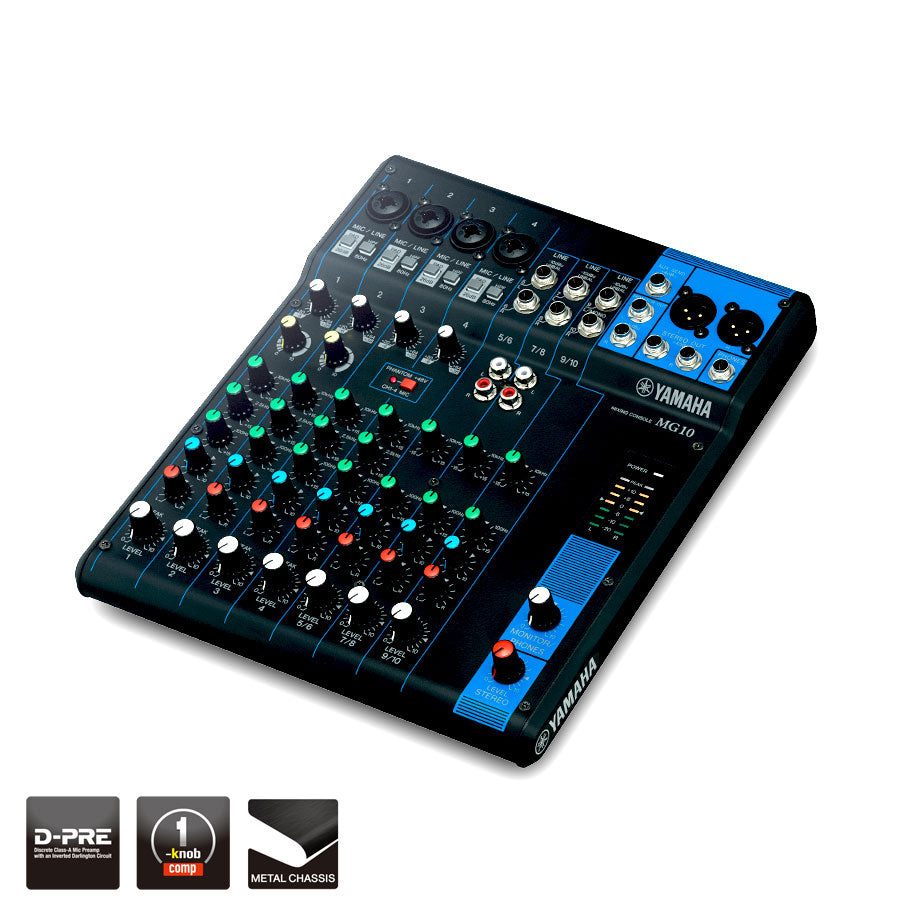

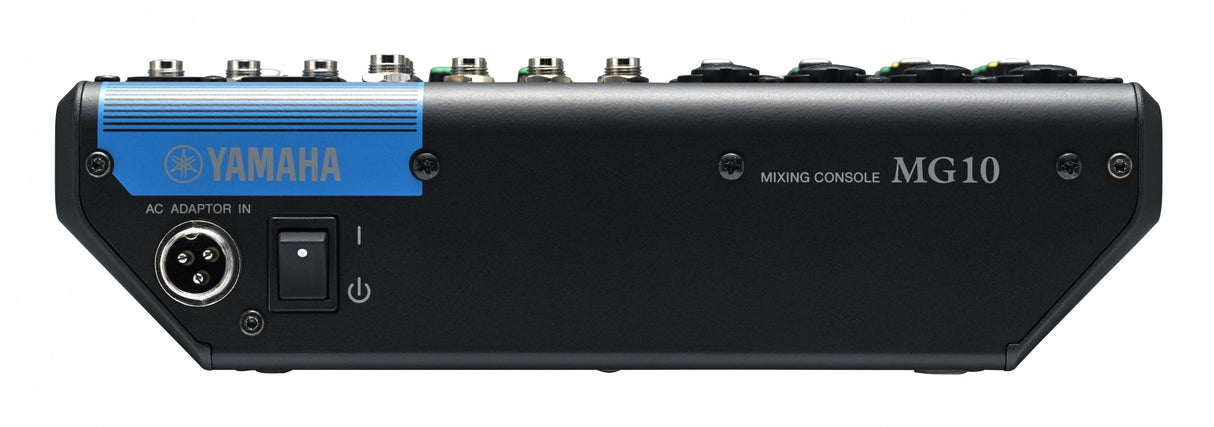

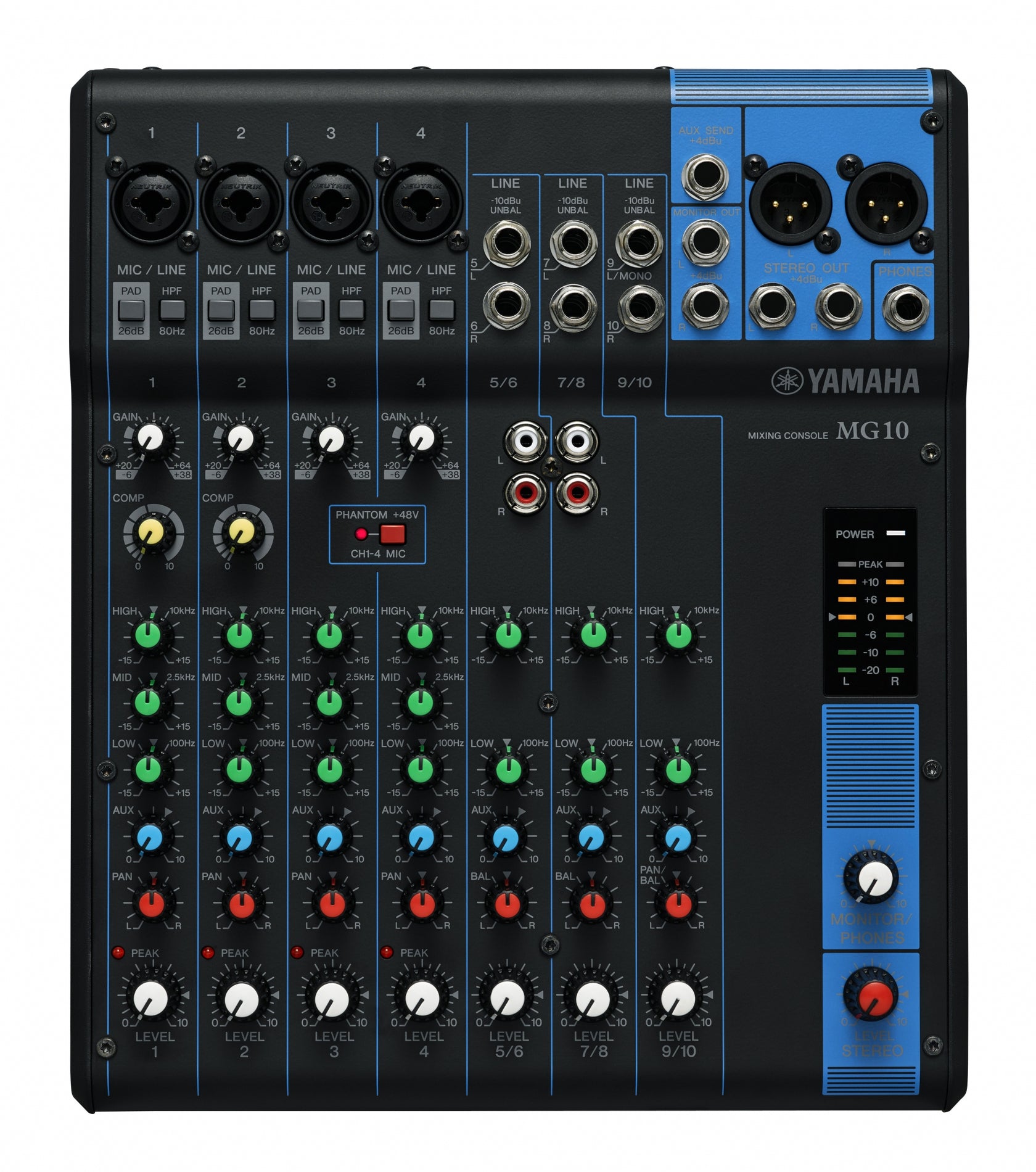

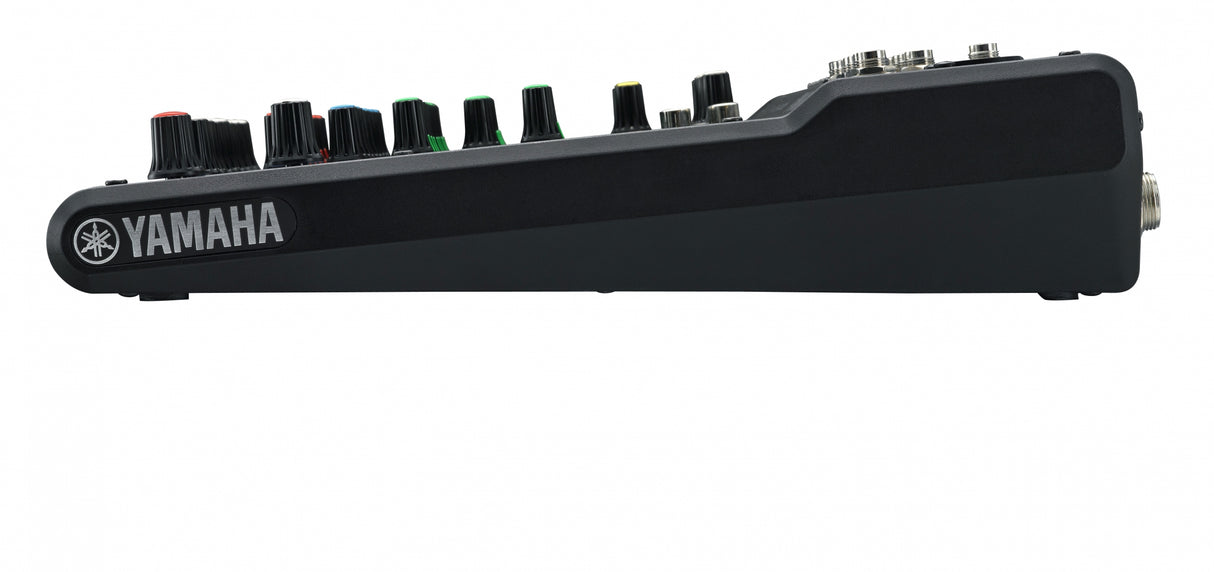

Yamaha MG10 Live Mixer
Yamaha The MG10 is a 10-channel live mixer with 48 V phantom power, 4 mic/line inputs, plus 3-band EQ and high pass filters. The MG10 has up to 4 AUX sends, so you can send audio to other effects machines, external recorders or monitor musicians etc.
D-PRE mic preamps
Yamaha The MG10 is equipped with D-PRE mic preamps that provide optimal power and lower impedance. With D-PRE, you get a wider frequency response, allowing the mixer to handle a wider range of sound sources.
1-button compressors
With a wide range of 1-button compressors, the Yamaha MG10 lets you alter the dynamics of audio signals from guitars, drums, basses and more to sound exactly the way you want.
Technical specifications
Technical specifications
Specifications | |
Outline | |
| I/O Phantom Power | +48 V |
| Input Channels Mono [MIC/LINE] | 4 |
| Input Channels Stereo[LINE] | 3 |
| Output Channels Stereo Out | 2 |
| Output Channels Monitor Out | 1 |
| Output Channels Phones | 1 |
| Output Channels AUX send | 1 |
| Bus | Stereo: 1, AUX[FX]: 1 |
Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono) |
| COMP | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] |
General specifications | |
| Total harmonic distortion | 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response | +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) |
| Crosstalk | -83 dB |
| Power requirements | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| Power consumption | 22.9 W |
| Width | 244 mm (9.6") |
| Hight | 71 mm (2.8") |
| Depth | 294 mm (11.6") |
| Net weight | 1.9 kg (4.19 lbs.) |
| Accessories | Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A |
| Others | Operating Temperature: 0 to +40˚C |
