• 10 Channel Stereo Mixer
• 48V Phantom Power
• Three-band EQ
• 24 digital effects
• Two compressor channels

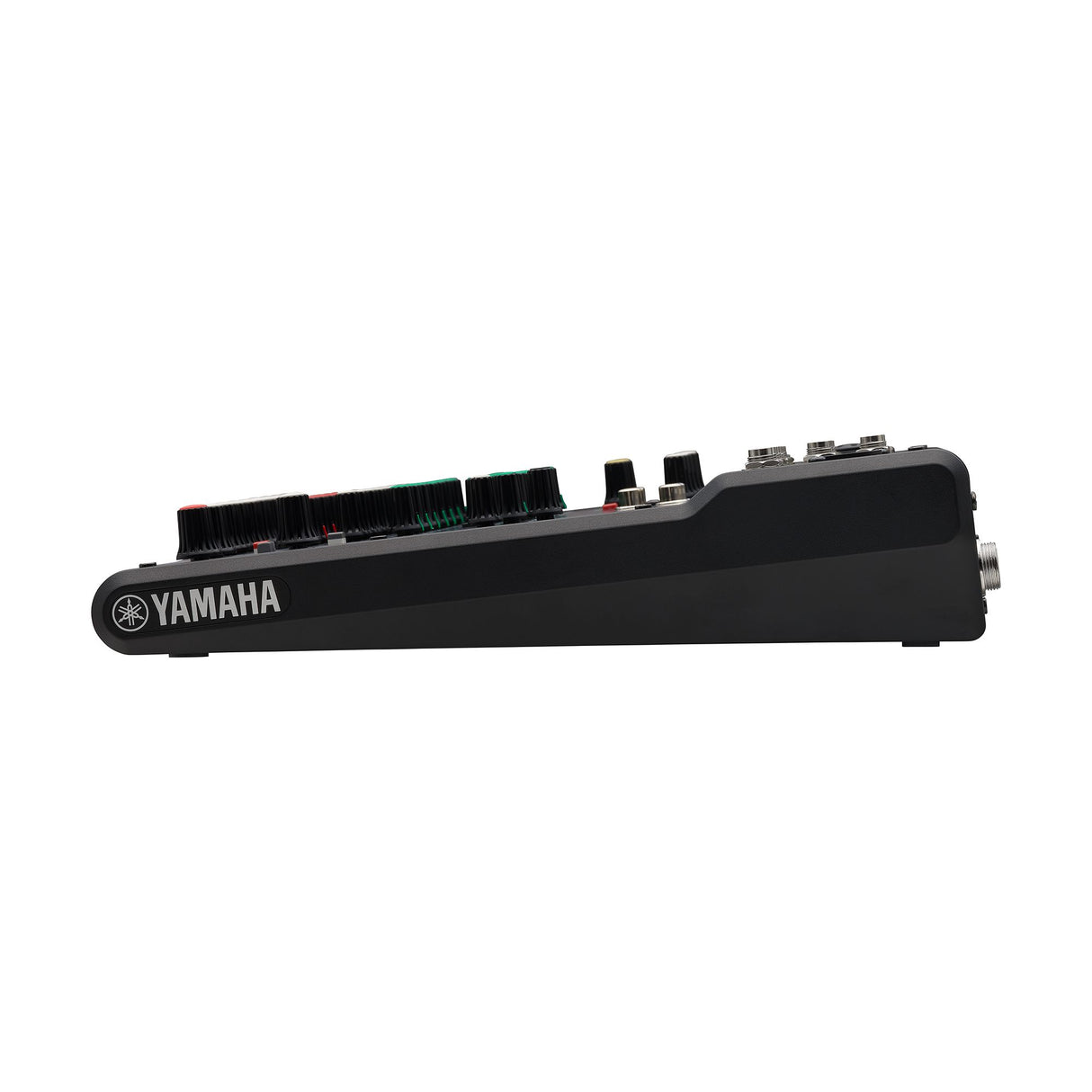

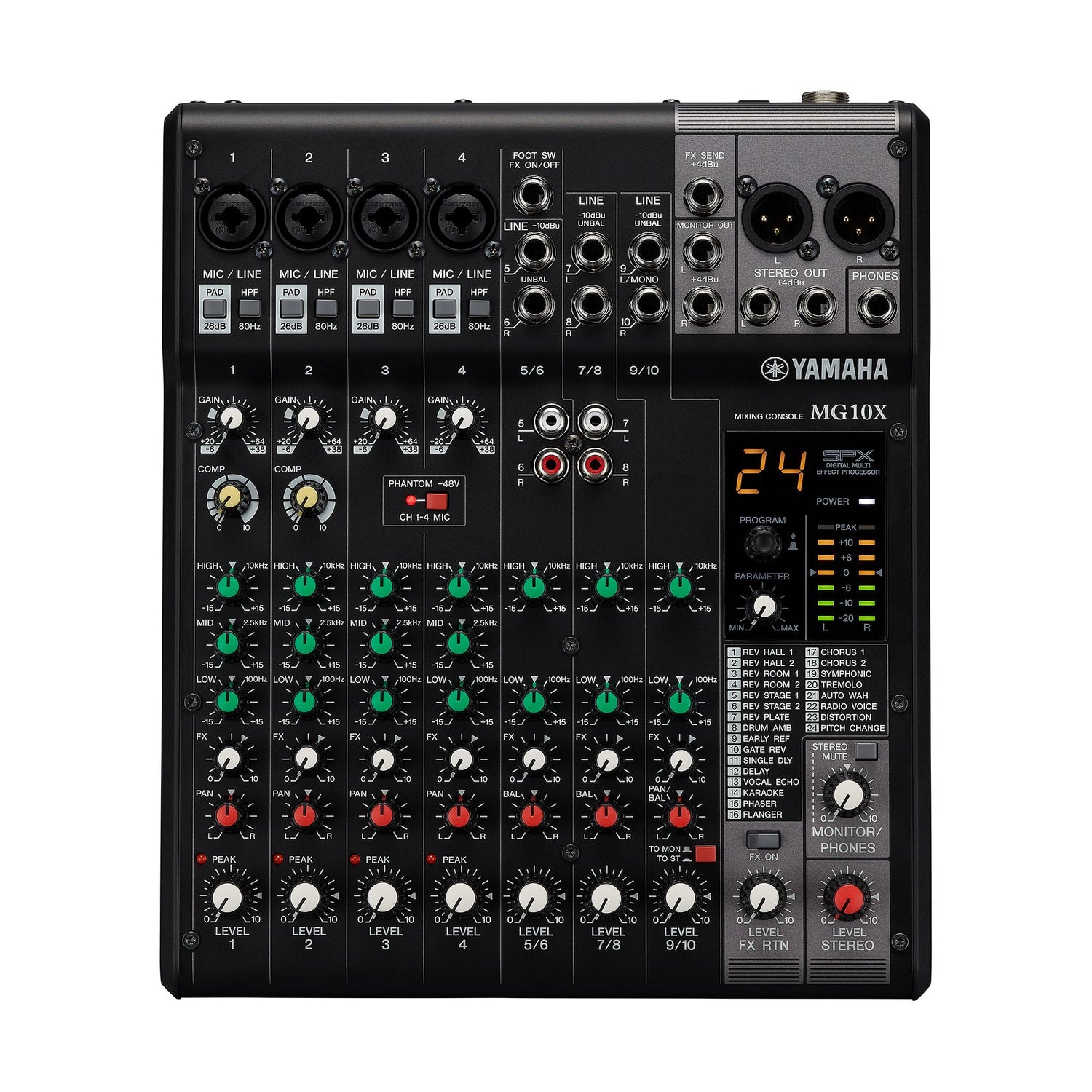

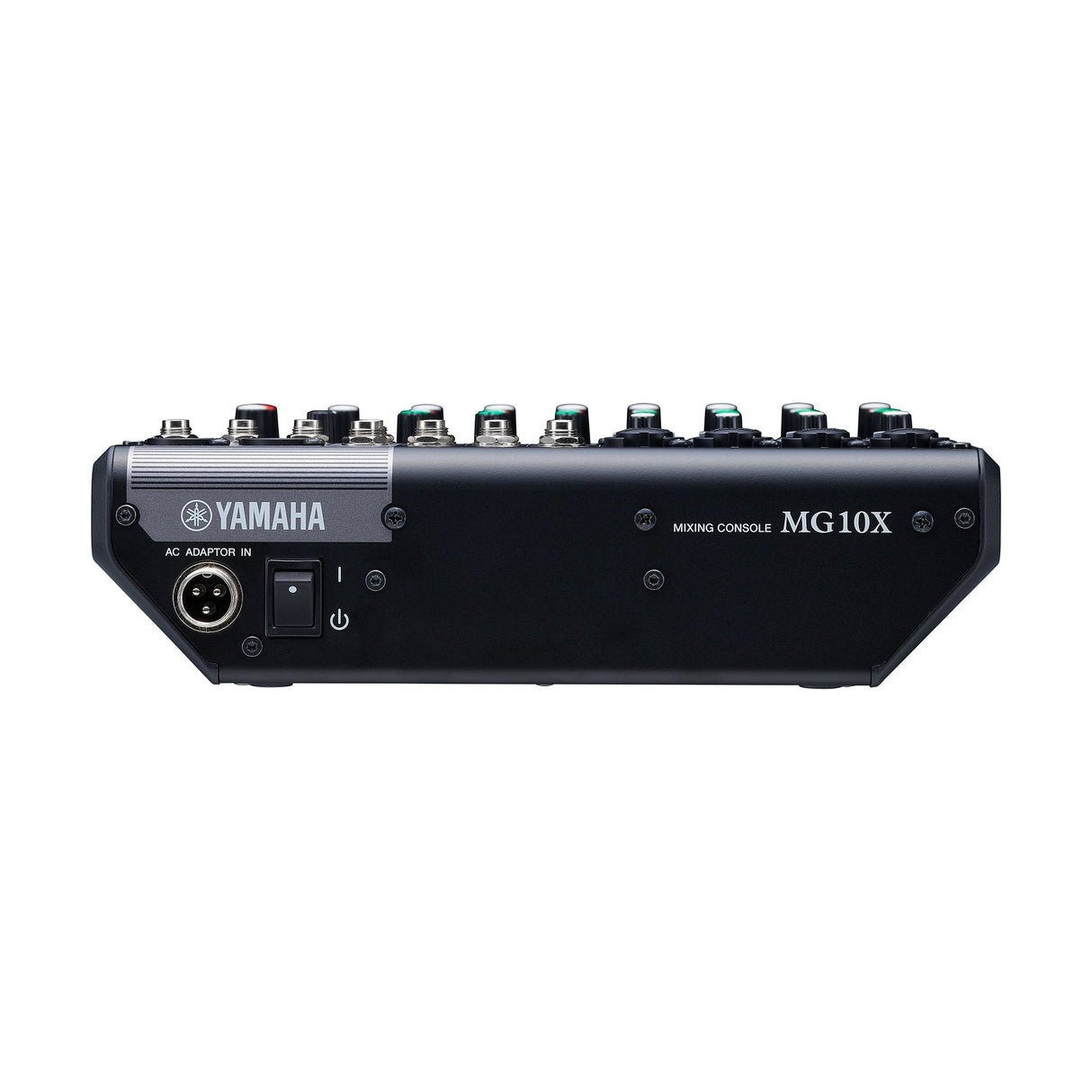

Yamaha MG10X Mixer

• 10-channel stereo mixer with plenty of effects and great compatibility despite its compact size
• Lots of input/output: XLR, 1/4", 2 mono, balanced XLR and line etc.
• Class A D-Pre preamp provides well balanced and clear sound with more power at lower impedance - especially the mic.
• Modify the sound with the built-in 24 digital effects.
• Two stand-alone channels with compression make it easy to tweak the sound when you need to go fast.
• With +48V phantom power, the mixer is compatible with condenser microphones.
• Rugged and road-proof metal chassis.
• Clearly color-coded sections and illuminated on/off channel switch make it easy to navigate in dimly lit environments.
• Can be connected to the FC5 foot pedal.

• On-board processors : SPX algorithm: 24 programs
• Phantom power: +48 V
• Digital I/O: USB Audio Class 2.0 compliant, Max 192 kHz, 24-bit
• Input Channels: 4 Mono [MIC/LINE], stereo [LINE]: 3
• Output Channels: STEREO OUT: 2
• MONITOR OUT: 1
• PHONES: 1
• AUX SEND: 1
• Bus: Stereo: 1, AUX[FX]: 1
• Input Channel Function
• PAD: 26 dB (Mono)
• HPF: 80 Hz, 12 dB/oct (Mono)
• COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
• EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
• EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
