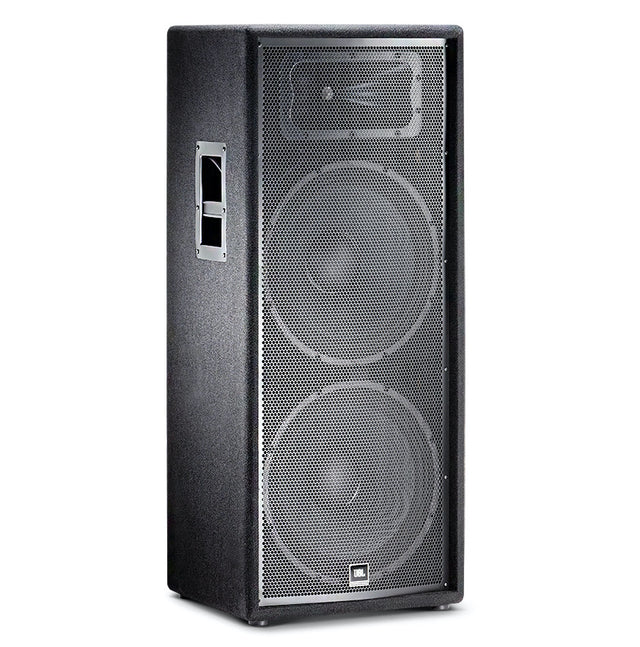

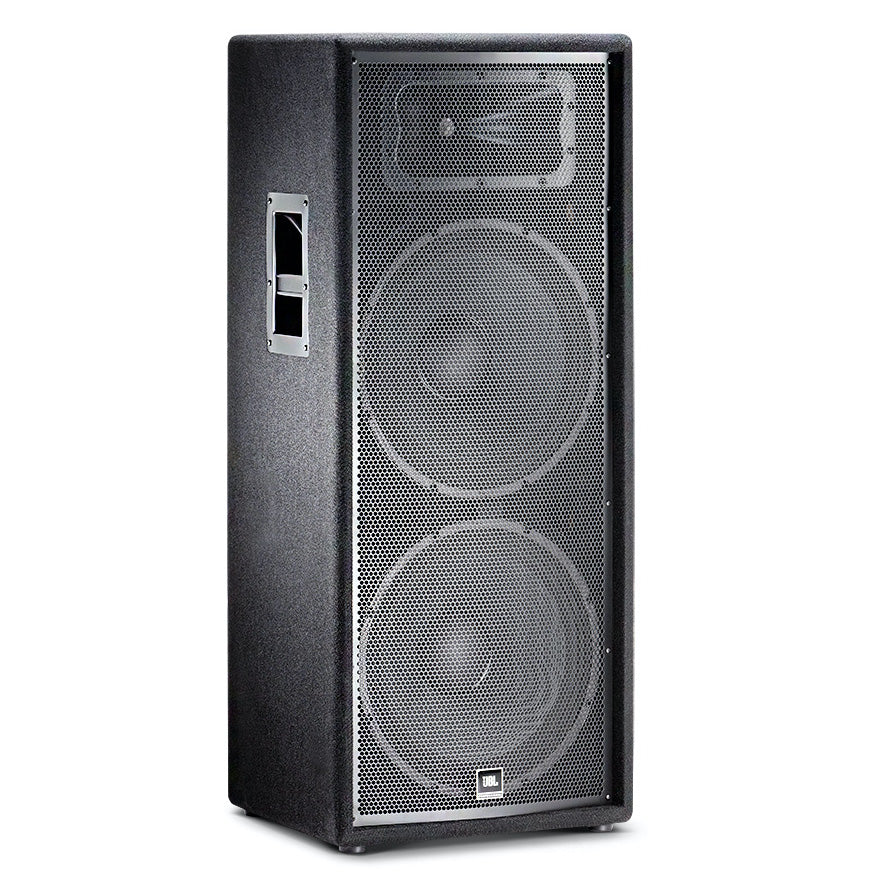

JBL JRX225 er en 2-vejs passiv 500 Watt højttaler med 2 stk. 15" basenhed og 1" compression driver.

JRX-225 fra JBL er en del af JRX200 serien, en del af den ny entry level serie der bygger på høj kvalitet til lav pris.

JBL har udviklet JRX 225 i 19mm MDF træ kabinet, kraftige håndtag og metal gitter for optimal ydelse, beskyttelse og komfort.The JRX225 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback.

• Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
• JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
• The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
• A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
• High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
• Progressive Transition? high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
• The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
• SonicGuard? protects the highfrequency driver from excess power without interrupting the performance.
• Non-resonant, all-steel handles are used.
• Attractive 18-gauge perforated, steel grille protects components from damage.

Power Rating   :   500 W / 2000 W

Frequency Range (-10 dB)   :   36 Hz - 19 kHz

Frequency Response (±3 dB)   :   45 Hz - 16 kHz

Sensitivity (@1m)   :   100 dB SPL (1w/1m)

Nominal Impedance   :   4 ohms

Recommended Amplifier Power   :   500 W to 1000 W into 4 ohms

Maximum SPL   :   133 dB

Nominal Dispersion   :   90º x 50º

Crossover Frequency   :   2 kHz

Dimensions (H x W x D)   :   1092 mm x 464 mm x 426 mm (43 in x 18.3 in x 16.8 in)

Weight   :   42.6 kg (94 lb)

High Frequency Driver   :   JBL 2414H-C 25mm (1 in) polymer diaphragm compression driver mounted on Progressive Transition™ Waveguide

Low Frequency Driver   :   JBL M128 x 2

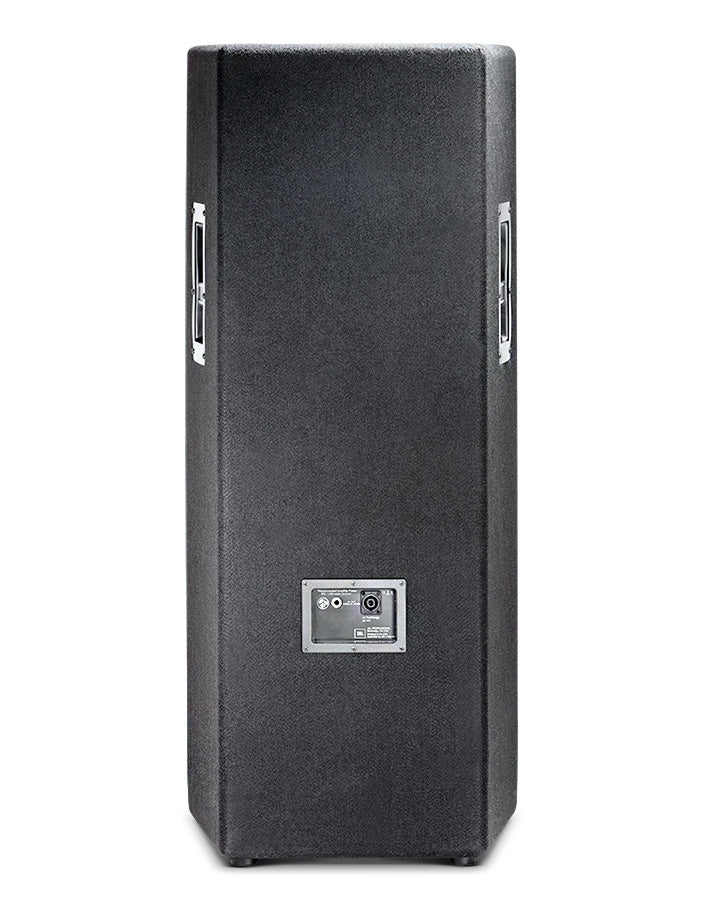

Input Connectors   :   Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
