Audio-Technica System 10

(0)
€283,62
Incl. VAT
Shipping within: 12 hours 59 min. 24 sec.

Description

  • Wireless microphone set
  • use 8 channels without frequency interference
  • Receiver with digital ID display
  • Handheld microphone
  • Body / Beltpack not included.

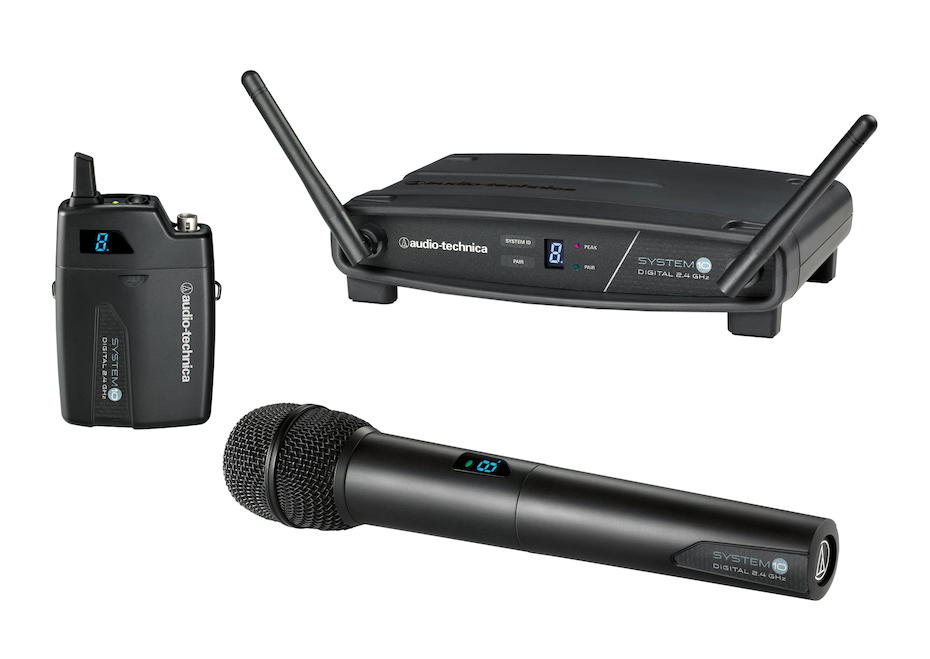

Audio-Technica System 10 Microphone Set


The Audio-Technica System 10 is a wireless microphone set for lecturers and musicians. The system is easy to set up and operates in a 2.4 GHz range. Use up to 8 different channels at the same time without frequency issues.

ATW-R1100 receiver


The Audio-Technica System 10 comes with an ATW-R1100 receiver with digital ID display. The receiver also has volume control, AF peak and pair indicator light.

Also available with bodypack.

Specifications

  • Weight (kg)
    2

More specifications

Specifications




Overall System


Operating Frequencies: 2.4 GHz ISM band
Dynamic Range: >109 dB (A-weighted), typical
Total Harmonic Distortion: <0.05% typical
Operating Range: 30 m (100') typical Open range environment with no interfering signals
Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Frequency Response: 20 Hz to 20 kHz Depending on microphone type


Reciever Specifications


Receiving System: Diversity (frequency/time/space)
Maximum Output Level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Dimensions: 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
Net Weight: 290 grams (10.2 oz)
Accessory Included: Power supply







Handheld Transmitter


Rf Power Output High: 30mW; Low: 10mW, nominal
Spurious Emissions: According to National Regulations
Batteries: Two 1.5V AA not included
Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
Dimensions: 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Net Weight: 280 grams (9.9 oz) without batteries
Accessory Included: AT8456a Quiet-Flex stand clamp

SKU: AUT-ATW-1102
Barcode: 4961310120856
