• 4-channel DJ controller with completely unique design
• All-in-one dj system with 2 x jog wheels + mixer section
• 10.1" touchscreen as we know from CDJ3000 or XDJ-RX3
• Individual light in jog wheels to match the deck you are working on
• Compatible with Pioneer Rekordbox and Serato DJ Pro (Summer 2023)
• Possibility of zoning of sound - 2 zones

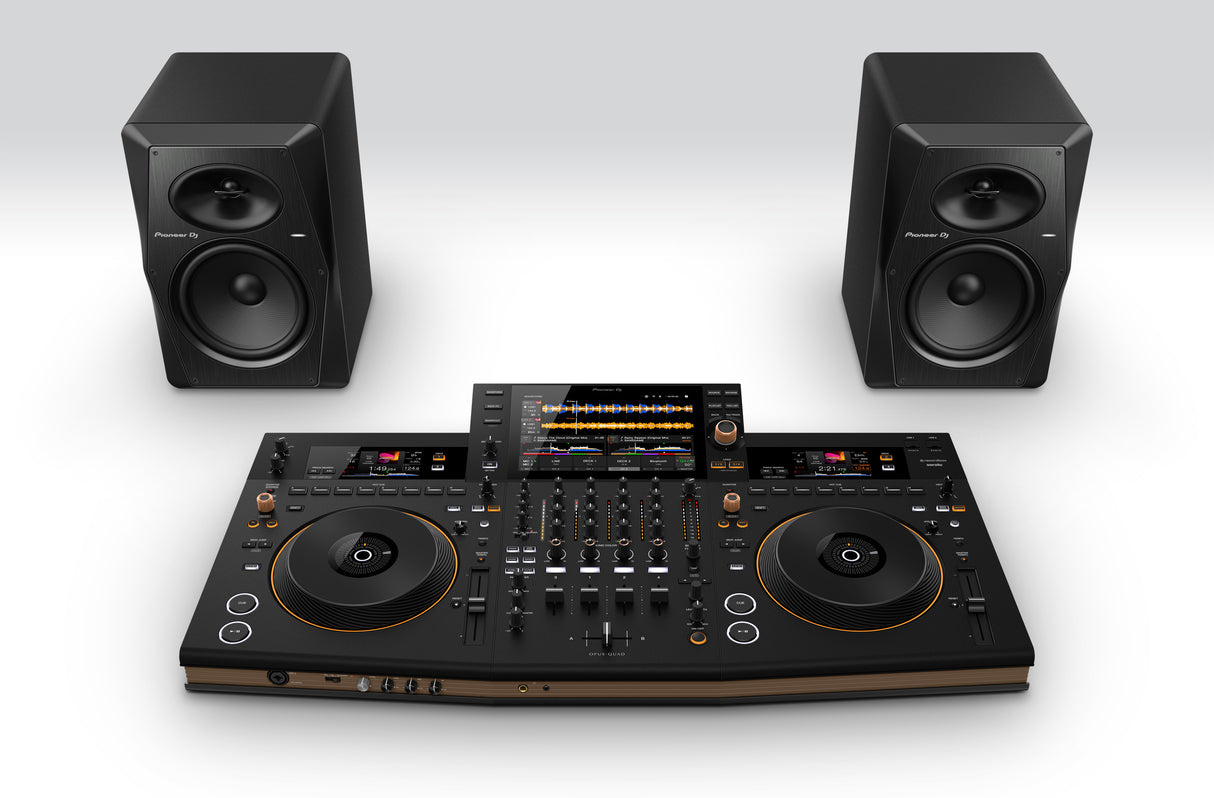

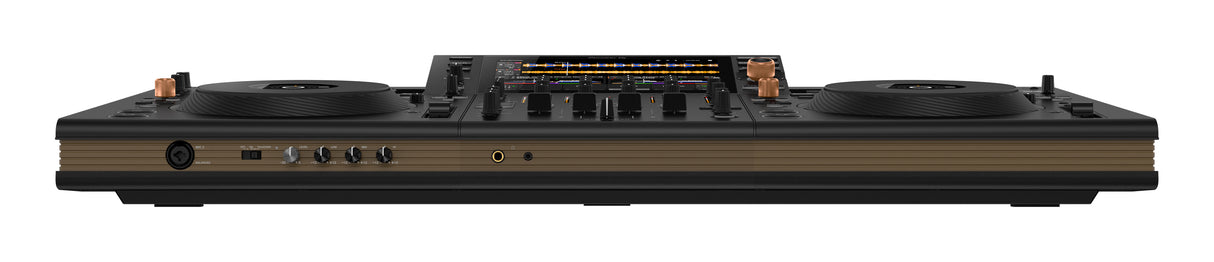

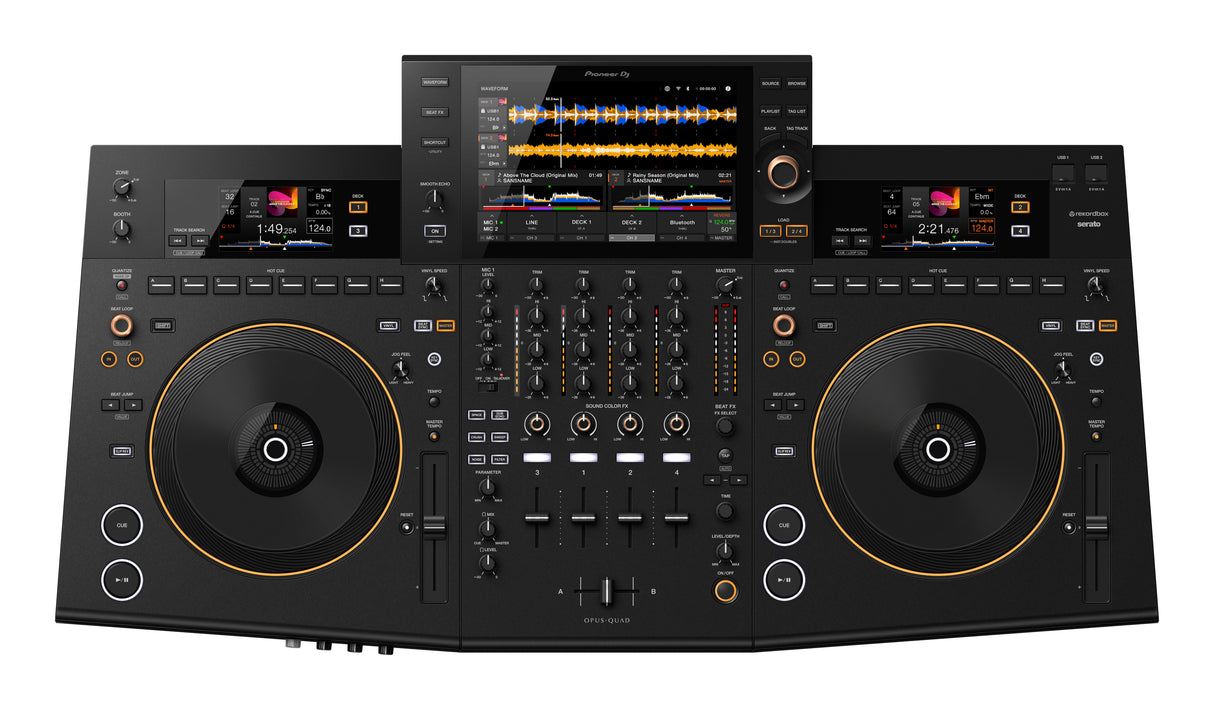

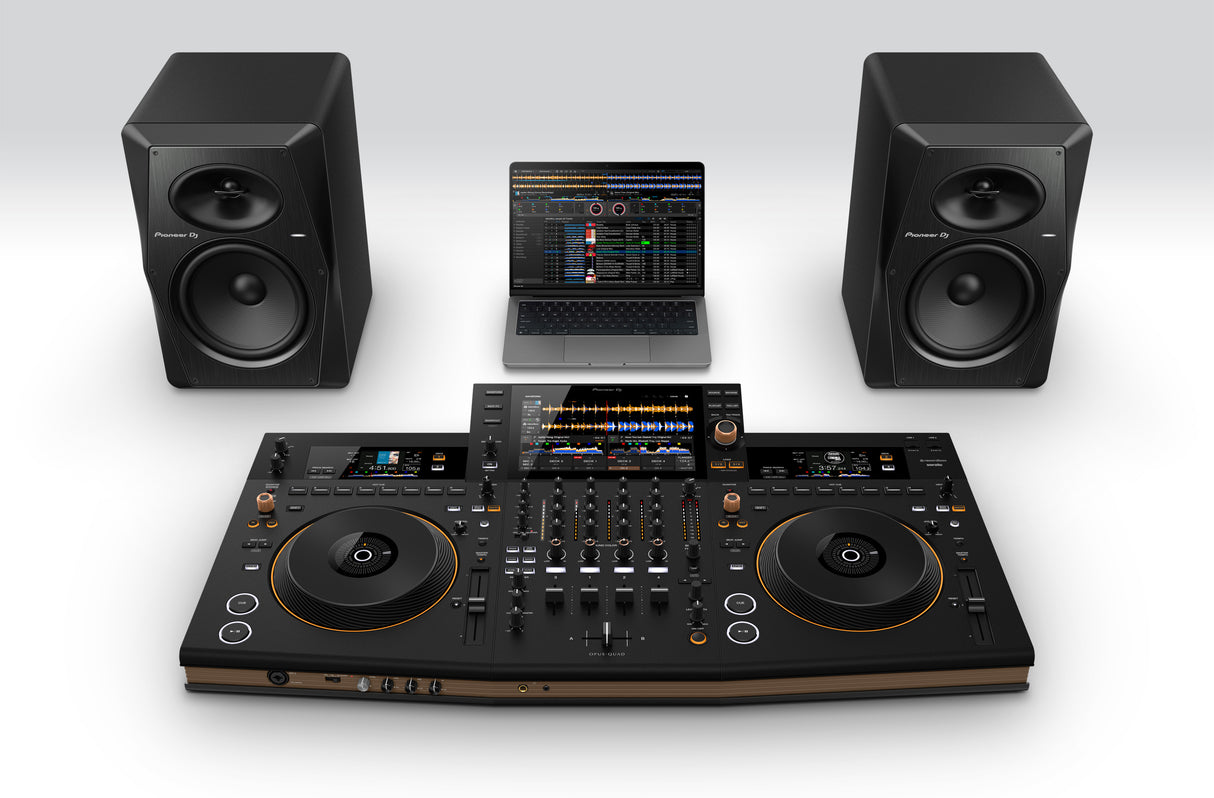

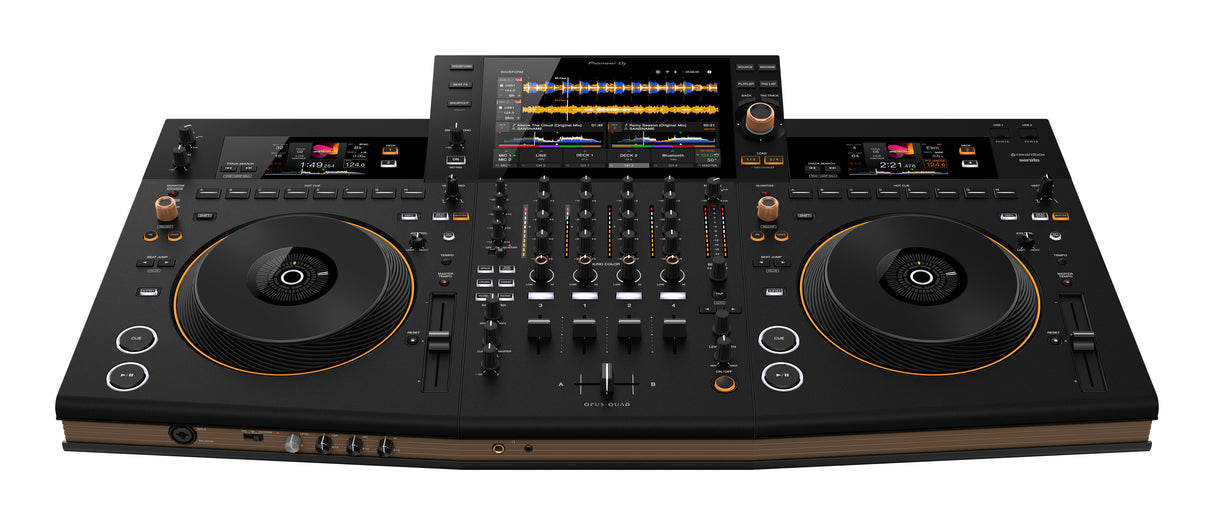

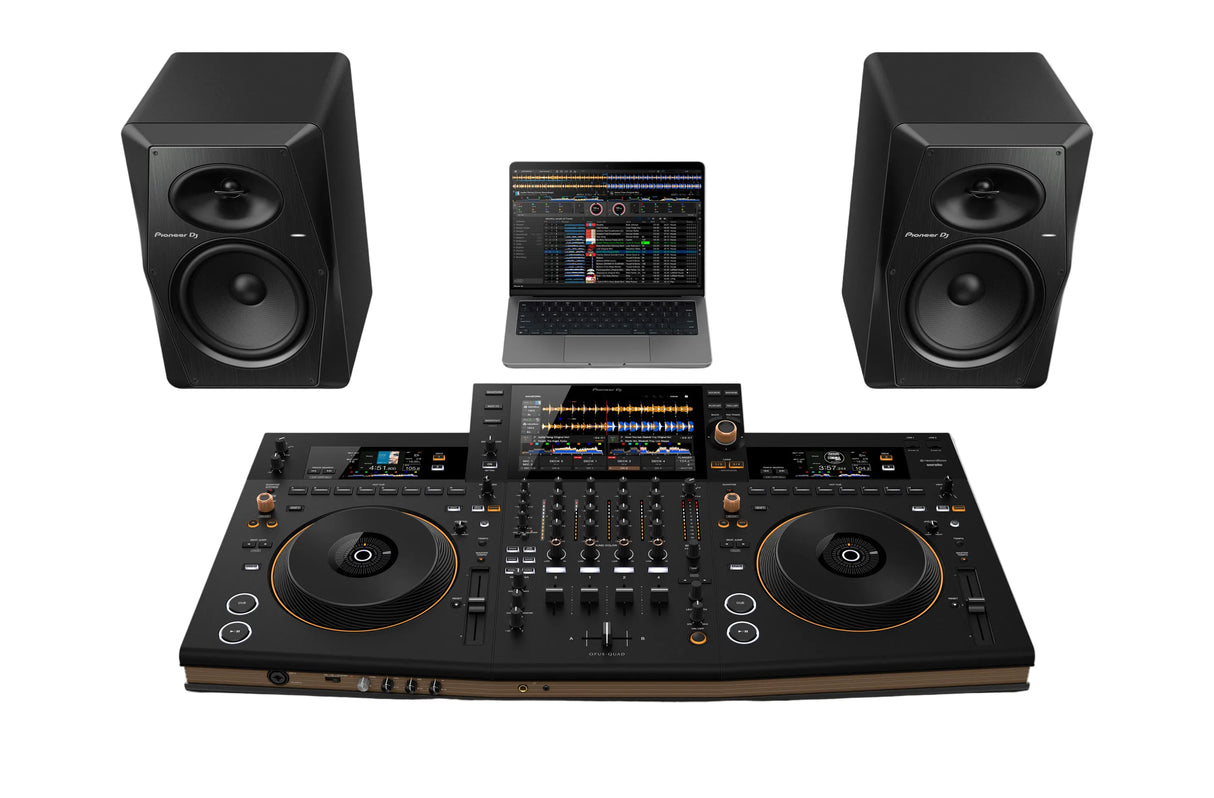

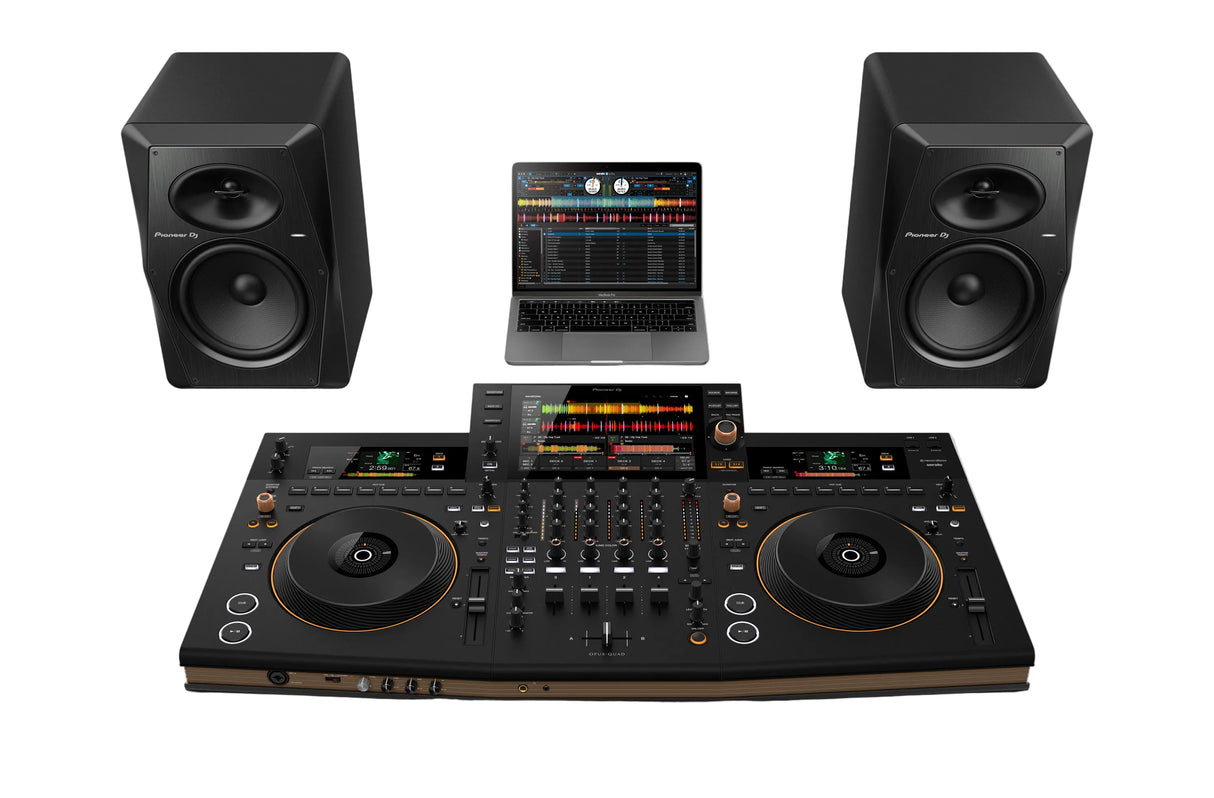

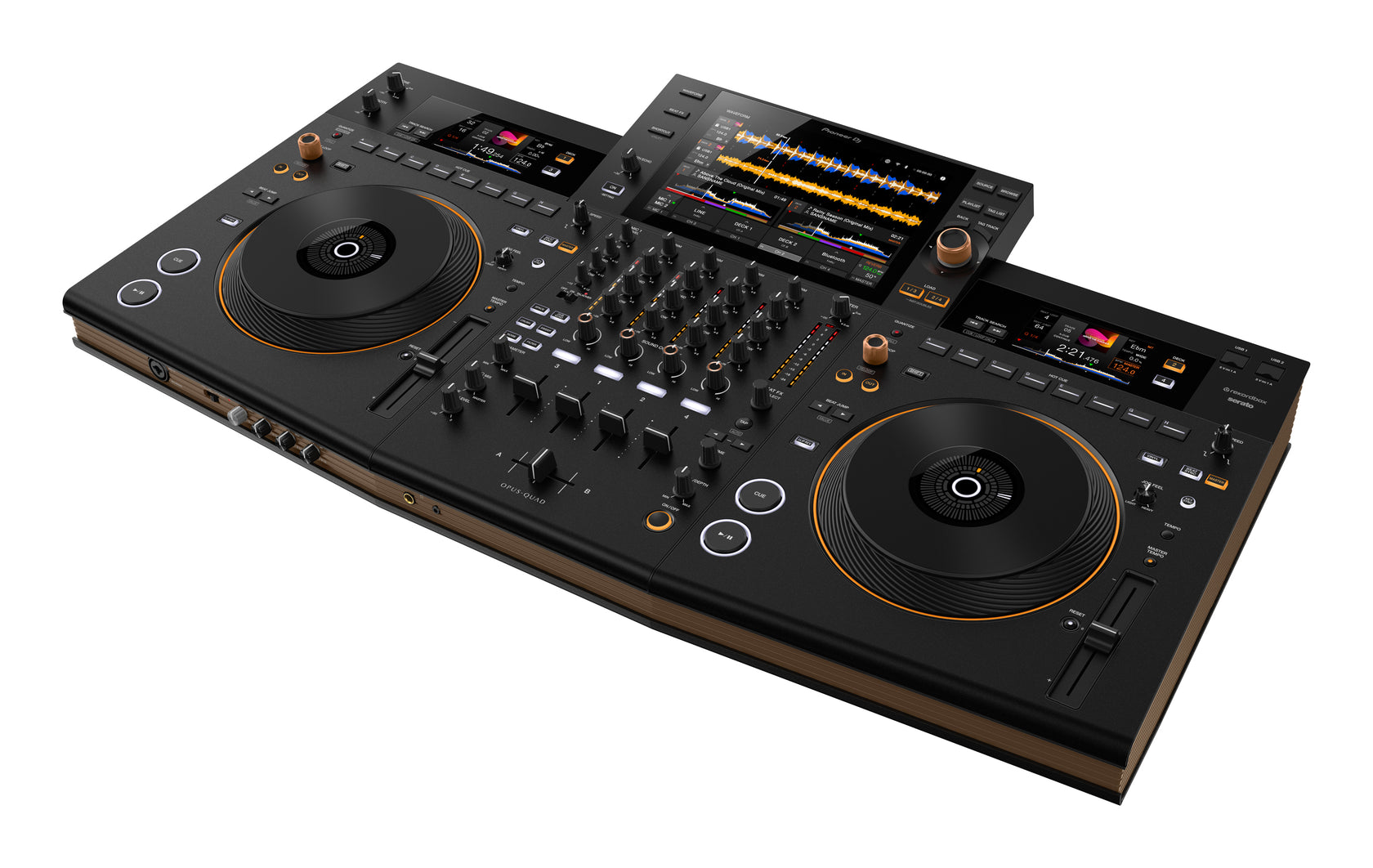

Pioneer DJ OPUS-QUAD

• You get effects, features, improved sound and a brand new design that has never been seen before.

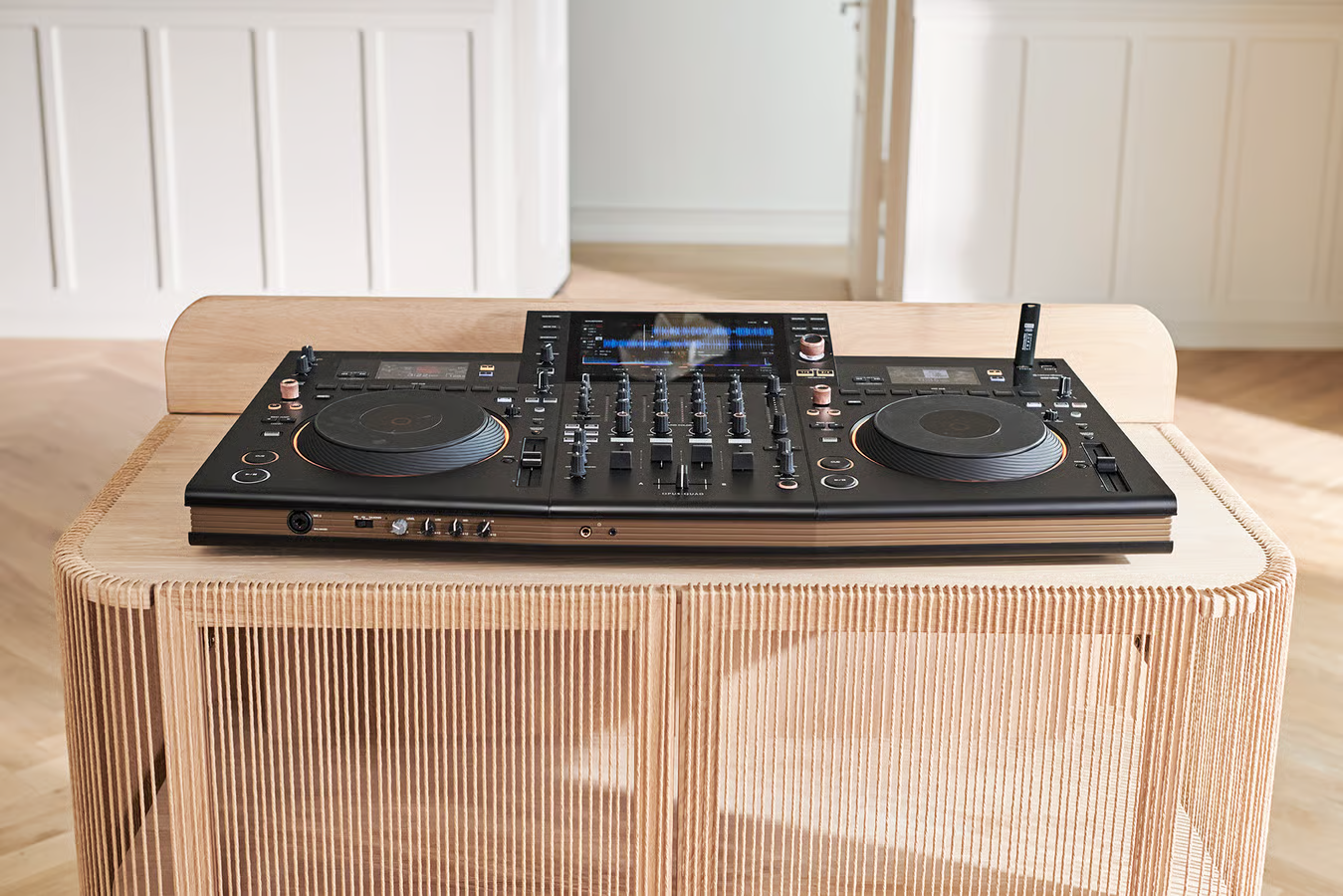

• In addition to the new elegant design that will decorate any space, you also experience easy accessibility and intuitive operation.
• As DJ you can play 4 tracks on 4 different decks simultaneously, prepare tracks, or have a free deck for music requests. All with just one device. It is even possible to give each Deck a unique color, which will be displayed on the single luminous jog-wheel, depending on which Deck you are playing on.
• DJ The XY-Pad makes it easy to control functions such as FX Bank and channel selection, as the Beat FX parameters and filter cut-off frequency are controlled by movement on the X and Y axes respectively, allowing you to mix both effects with a single finger. There's also the famously popular Smooth Echo and Sound Color FX.
• The new 10.1-inch touchscreen makes finding your way around your libraries easier, faster and more accurate than before.
• Via the zone output, it is now possible to output sound that is separate from the master, it is now possible to play different music in different rooms from just one OPUS-QUAD.

Main Features

• USB record: Yes
• MIDI Control: Yes
• Plug and Play: Yes
• Auto Standby: Yes

Supported music file formats

• MP3
• AAC
• WAV
• AIFF
• Apple Lossless
• FLAC

File systems

• FAT16
• FAT32
• exFAT
• HFS+
• (NTFS isn’t supported.)

Compatible DJ Software

• rekordbox for Mac/Windows: Hardware Unlock
• rekordbox for iOS/Android
• Serato DJ Pro: Hardware Unlock

Accessories

• OPUS-QUAD
• Power cord
• Quick Start Guide
• Precautions for Use
• Warranty (Only products in Europe. Products in North America and Japan include warranty information in the “Precautions for Use”)

Specifications

• Width: 925.7 mm
• Height: 142 mm
• Depth: 499.7 mm
• Dimensional Outline drawing: Click here for the details.
• MASTER DA converter: 32 bit
• A/D Converter: 24 bit
• Weight: 13.2 kg
• Signal-to-Noise Ratio: USB: 114 dB, LINE: 96 dB, PHONO: 85 dB, MIC: 79 dB
• Power Supply: AC 100-240 V, 50 Hz / 60Hz
• Power Consumption: 60 W
• Sampling Rate: 44.1 kHz
• Distortion: USB: 0.003 %, LINE: 0.005 %
• Frequency Range
• 20 - 20000 Hz

Performance Control

• Channels: 4
• Deck Control: 4 (USB storage device)+ 4 (DJ Software control)
• Jog Wheel: 206 mm
• Jog Feeling: Yes
• Sound Color FX: Space, Dub Echo, Sweep, Noise, Crush, Filter
• Beat FX: Delay, Echo, Ping Pong, Spiral, Reverb, TransFilter, Flanger, Phaser, Pitch, Slip Roll, Roll, Vinyl Brake, Helix
• Hot Cues: 8 per deck
• Beat Loop: Yes
• Beat Jump: Yes
• Beat Sync: Yes
• Quantize: Yes
• WaveZoom: Yes
• Manual Loop: Yes
• Trim knob: Yes
• EQ Isolator: Yes

Mic

• Mic Connection: XLR connector & 1/4 inch TRS jack
• Mic EQ: 3 band
• Talkover: MIC OFF/ON/TALK OVER slide SW

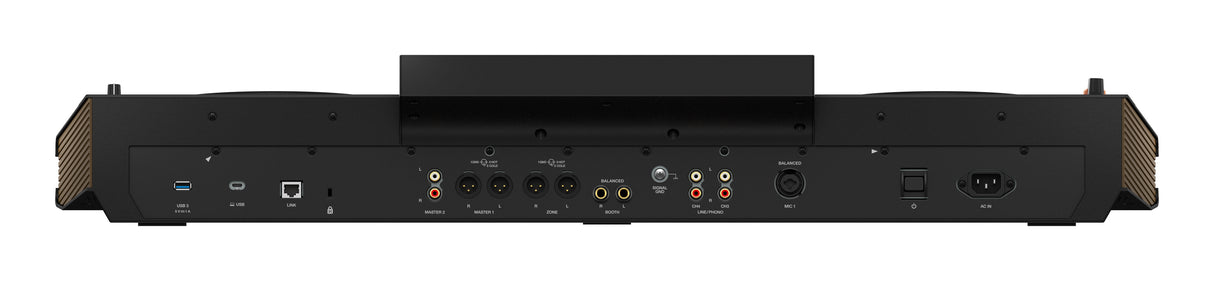

Terminals

• Inputs: 2 LINE (RCA), 2 PHONO (RCA), 2 MIC (XLR connector & 1/4 inch TRS jack)
• Outputs: 1 MASTER (XLR),  1 MASTER (RCA), 1 ZONE (XLR), 1 BOOTH (1/4 inch TRS Jack), 1 PHONES (1/4 inch stereo phone Jack), 1 PHONES (3.5-mm stereo mini jack)
• USB: 3 USB A ports,1 USB C port

Wireless LAN

• Supported standards: IEEE 802.11 a / b / g / n / ac
• Frequency band used: 2.4 GHz / 5 GHz

Bluetooth

• Wireless system: Bluetooth ver. 4.2
• Frequency band used: 2.4GHz
• Compatible codecs: SBC, AAC
