• Powerful and versatile active speaker
• Powerful 2000 W Class D amplification
• 4 DSP Preset Modes, 16 User DSP modes
• Full-range speaker design
• Max SPL of 133 dB, frequency response of 45 Hz-20 kHz

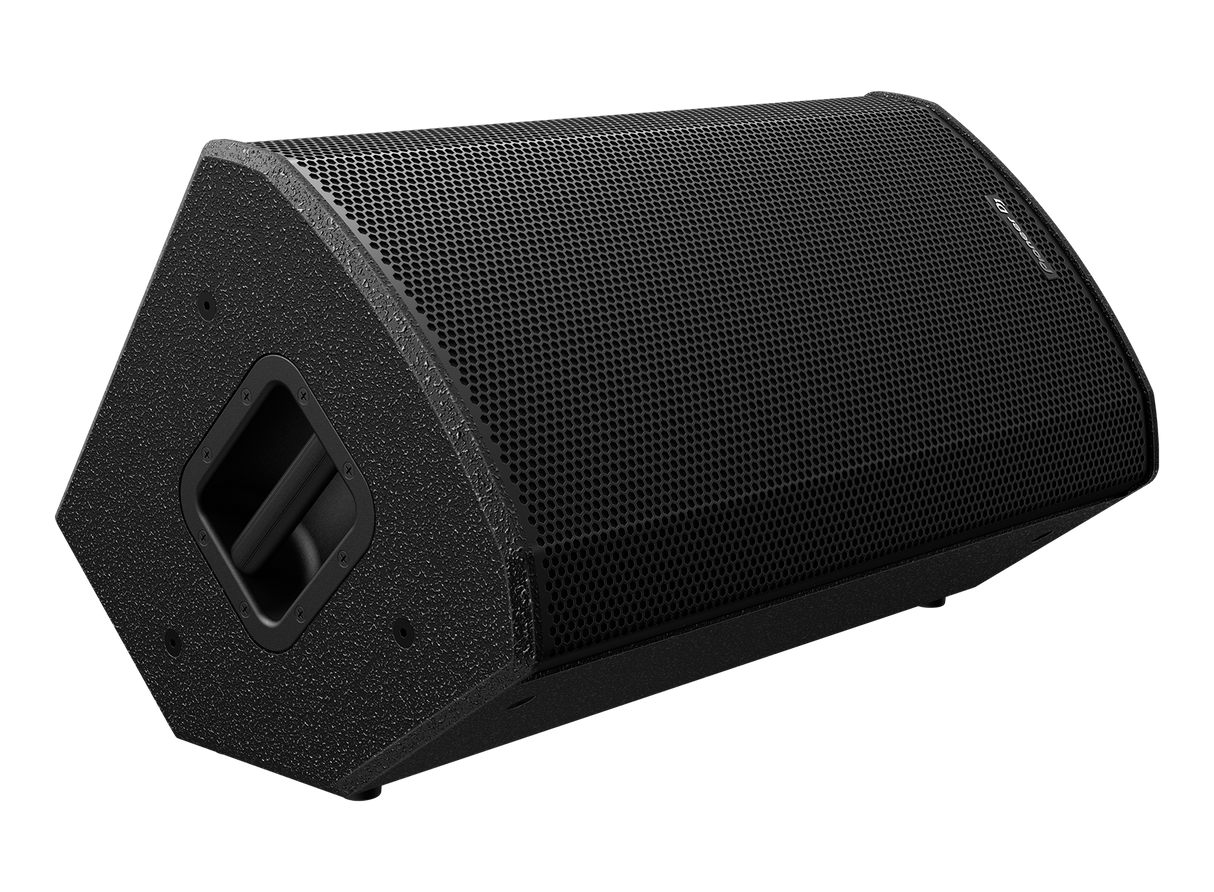

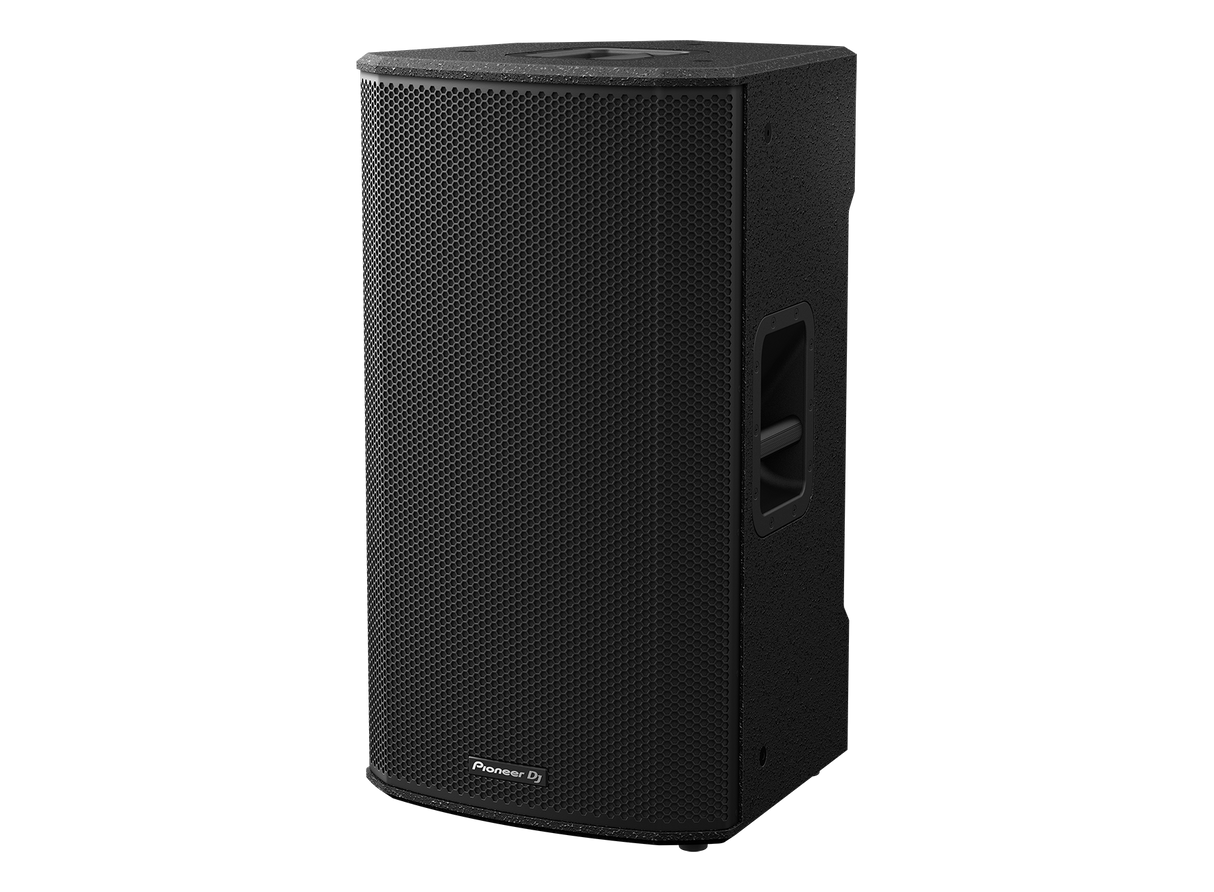

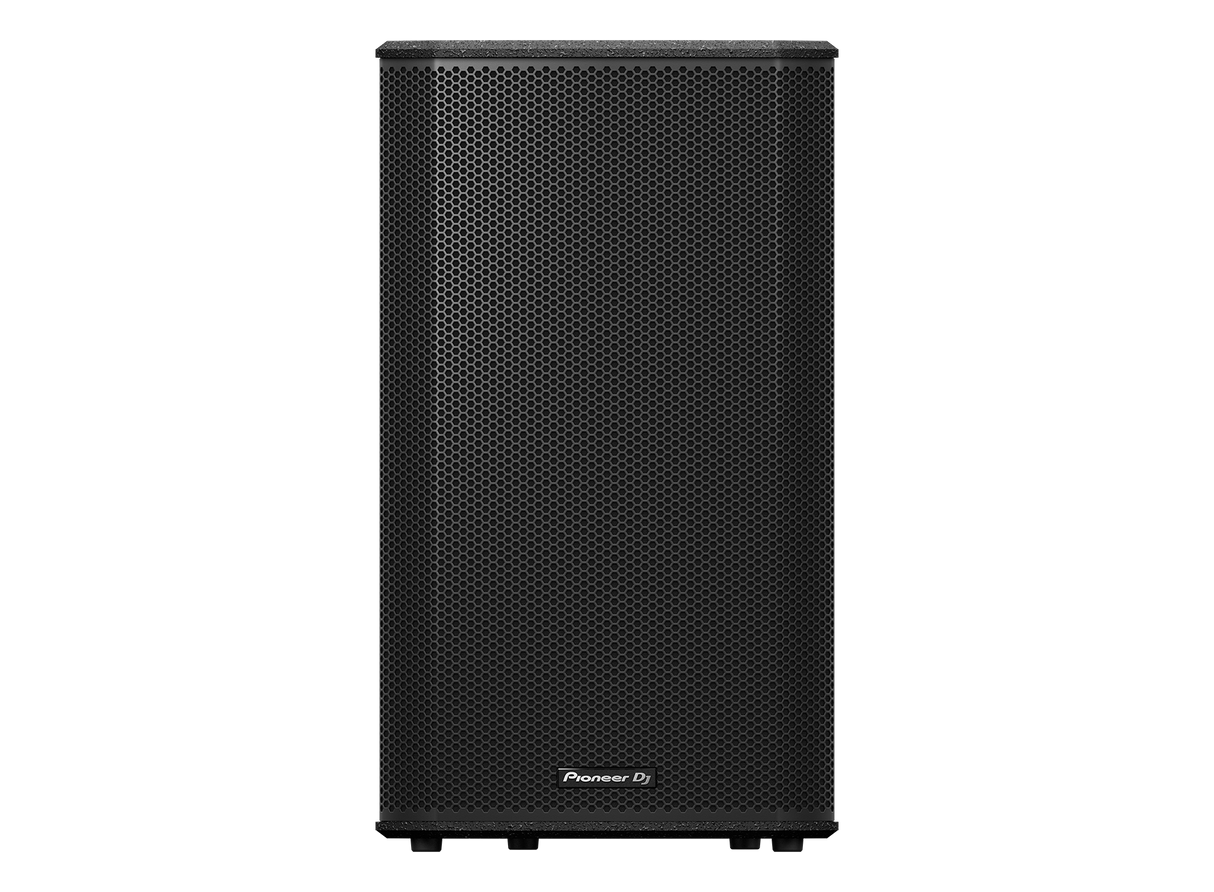

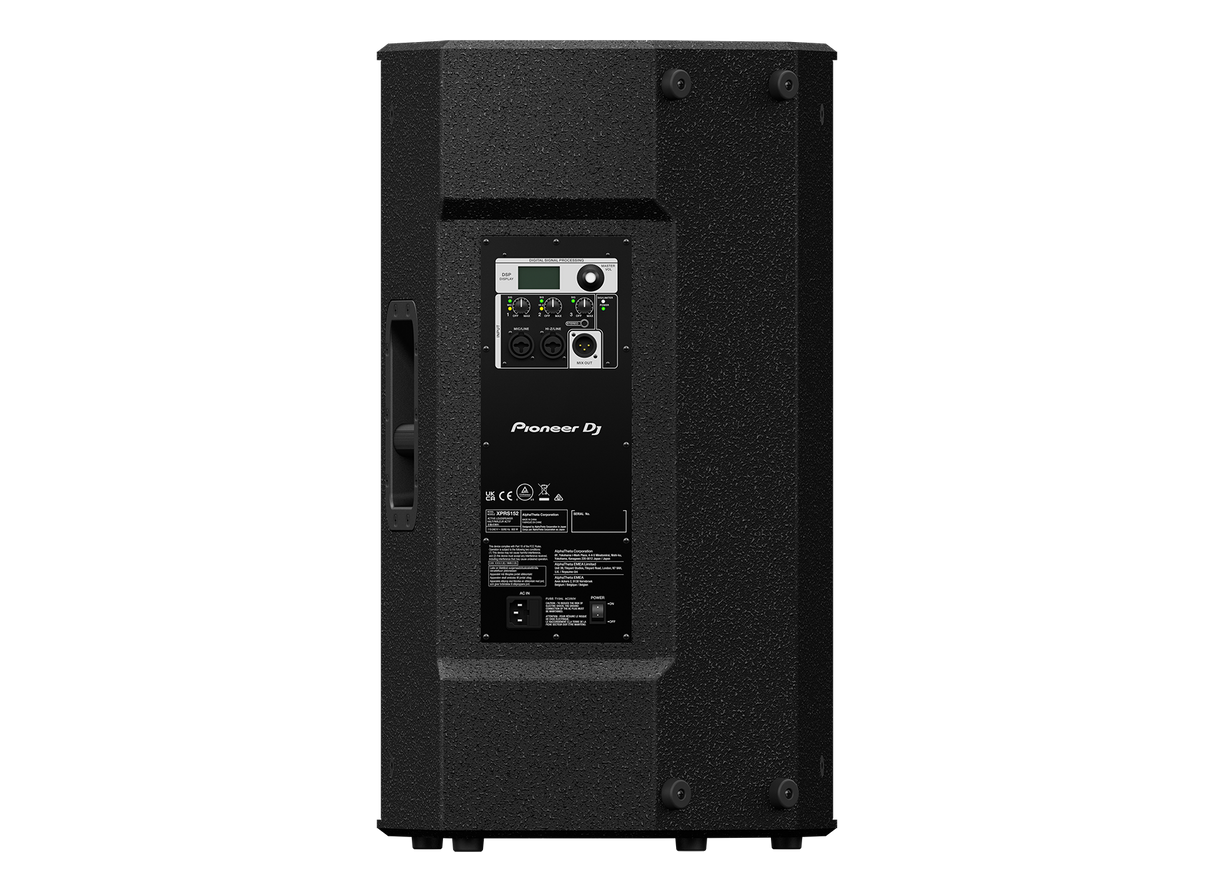

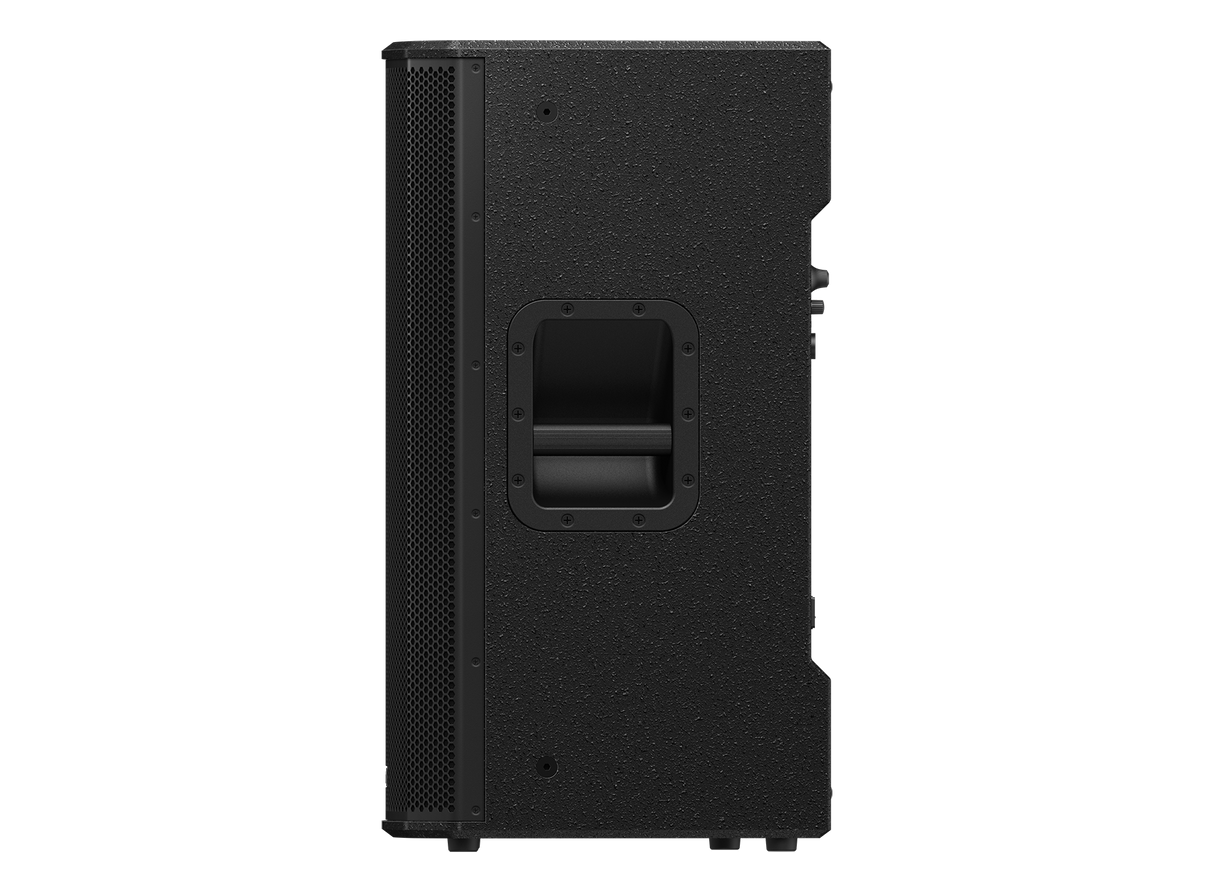

Pioneer DJ XPRS152 Active Speaker

• Powerful and versatile active speaker.
• Ideal for DJs, live sound, fixed installations.
• Powerful Class D amplification of 2000 W.
• High quality, solidly constructed for indoor and outdoor use.
• 4 DSP Preset Modes, 16 User DSP modes.
• Full-range speaker design with 15" woofer, 3" voice coil with 1" exit compression driver and 1.75" voice coil.
• Superb performance with max SPL of 133 dB, frequency response of 45 Hz-20 kHz.
• 1 x MIC / LINE Combo input
• 1 x HI-Z / LINE x 1 Combo input
• 1 x 3.5 mm stereo mini jack
• 1 x MIX (XLR) output

Type
15 inch 2-way active loudspeaker
Amplifier Output
Class D
2000W peak
Accessories
XPRS152 x 1 (not sold as a pair)
Power cord
Quick start guide
Important Safety Precautions

Supported voltages
110 V to 240 V (50 Hz/60 Hz)
Power consumption
800 W
Width
421 mm
Height
726 mm
Depth
410 mm
Weight
25.2 kg
Frequency Range
45 - 20000 Hz

DSP modes
Factory Presets (4 types)
Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
EQ (4-band equalizer)
User Programs (16 presets)
DSP presets modes
Factory presets
LIVE
MUSIC
SPEECH
MONITOR
Maximum Sound Pressure
133 dB
Cross Over Frequency
2 kHz

Inputs
MIC / LINE x 1 (Combo)
HI-Z / LINE x 1 (Combo)
3.5 mm stereo mini jack x 1 (Unbalanced input)
Outputs
MIX (XLR)

Driver
15 inch ferrite LF cone driver
1.75 inch compression driver
Finish
Black paint, Rubber feet
Handle
2 metal handles (on left side and top)
Pole socket
35 mm socket
Rigging point
10x M10
Enclosure
Plywood (TSCA)

Amplifier Protection
Thermal limiting
Digital Limiter
Digital compressor
Driver Protection
Short circuit protection
Power unit Protection
Primary AC mains overcurrent protection
Primary AC mains overvoltage protection
