Roland SH-4D Synthesizer

• Compact desktop synth packed with options
• 11 OSC models
• Including the new SH-4d native engine, Wavetable, Cross FM, Juno-106, SH-101 and more.
• 4 independent synth parts and a dedicated rhythm part with up to 60 notes of polyphony (depending on selected synth)
• Rhythm part with selectable waveforms, powerful sythesis control, layering etc.
• Stylish panel with direct access to functions - no need for lengthy menus
• Advanced matrix
• Multitimbral sequencer with 128 patterns, real-time recording, two-step entry modes, motion recording
• D-Motion, Visual Arpeggio, probability and sub step settings
• Clock input to sync with modular synths and other Roland gear

Roland SH-4D Synthesizer

• Compact desktop synth packed with sound design capabilities, intuitive user interface, workflow and onboard pattern sequencer.
• 11 OSC models - everything from vintage analog and classic pcm sounds to ultra modern digital textures.
• Including the new SH-4d native engine, Wavetable, Cross FM, Juno-106, SH-101 and many more.
• 4 independent synth parts and a dedicated rhythm part with up to 60 tones of polyphony (depending on the selected synth).
• Rhythm part with selectable waveforms, powerful sythesis control, layering and more.
• Attractive panel with direct access to functions - you avoid lengthy menus.
• You have it all in front of you.
• Bright LCD display.
• Dedicated filter, amp and lfo sections.
• Advanced matrix.
• Buttonkeyboard with two-plus octaves.
• Multitimbral sequencer with 128 patterns, real-time recording, two-step entry modes, motion recording.
• D-Motion, Visual Arpeggio, probability and sub step options.
• Onboard MFX with reverb, chorus, delay and more.
• USB-C Audio/Midi interface and 5-pin midi I/O
• Clock input to sync with modular synths and other Roland gear.
• Stereo audio output and headphone output.
• 3.5mm stereo audio input for mixing in other synths.
• Solid construction. Powered by batteries or USB-C.

User Memory

Sound Patch: 256
Pattern: 128

OSC MODEL

SH-4d
SH-3D
SYNC
SH-101
JUNO-106
Cross FM
RING
WAVETABLE
CHORD
DRAWING
PCM
RHYTHM (only for RHYTHM part)

Maximum Polyphony

60 voices (varies according to the sound generator load)

Parts

5 parts (Tone part: 4, Rhythm part: 1)

Effects

Multi-Effects: 5 systems, 93 types
Reverb: 9 types
Chorus: 5 types
Delay: 5 types
Master Effect: 93 types
Master EQ / Comp

Arpeggiator

5 types

Sequencer

parts: 5
Steps: 64
Sub Steps
Flam
Probability

Controllers

Switch Keyboard
Step buttons
D-Motion (motion sensor)

Display

Graphic LCD 128 x 64 dots

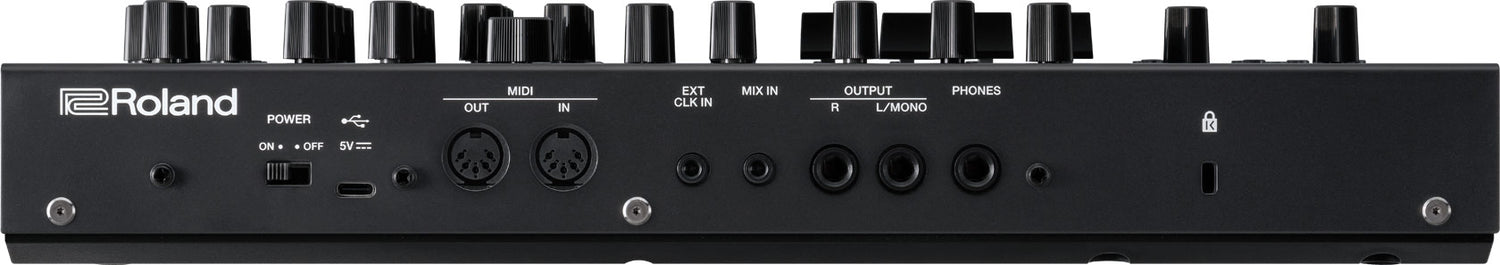

Connectors

PHONES jack: Stereo 1/4-inch phone type
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
MIX IN jack: Stereo miniature phone type
EXT CLK IN jack: Mono miniature phone type
MIDI connectors (IN, OUT)
USB port: USB Type-C(R) (Audio, MIDI)

Power Supply

USB bus power supply (USB Type-C(R) port)
Ni-MH batteries (AA, HR6) (commercially available) x 4
Alkaline battery (AA, LR6) (commercially available) x 4

Current Draw

500 mA (USB bus power supply)

Expected battery life under continuous use

Alkaline battery: Approx. 4 hours
Ni-MH battery: Approx. 5 hours
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Accessories

Quick Start
"Safety Precautions" leaflet
USB Type-C to USB Type-A cable
Alkaline battery (AA, LR6) x 4

SIZE AND WEIGHT

Width

360 mm
14-3/16 inches

Depth

195 mm
7-11/16 inches

Height

66 mm
2-5/8 inches

Weight (excluding batteries)

1,780 g
3 lbs 15 oz
