Defender MIDI 5 2D SET BLU - Modular system, 5 channels | SET blue | wheelchair-friendly transition | height 5.4 cm
1
of
12
Loading...
€1.198,95
Unit price
/
Not available
Inkl. moms
Secure checkout
Payment methods accepted
Others also bought:
-
Yamaha YDP-S55WH Electric Piano (White)
Save €104,00
€1.295,95€1.191,95In stock
-
Yamaha YDP-S55B Electric Piano (Black)
€1.152,95
In stock
-
Grooveland DDP-140 Electric Piano (Black) Bundle
€527,95€518,95In stock
-
Marconi Disco Ball (100 cm)
€906,95
In stock
-
Roland FP-10 Piano Package
€685,95€683,95External warehouse. Estimated delivery in 9–14 business days.
Defender MIDI 5 2D SET BLU - Modular system, 5 channels | SET blue ...
€1.198,95
Unit price
/
Not available
Description
Description

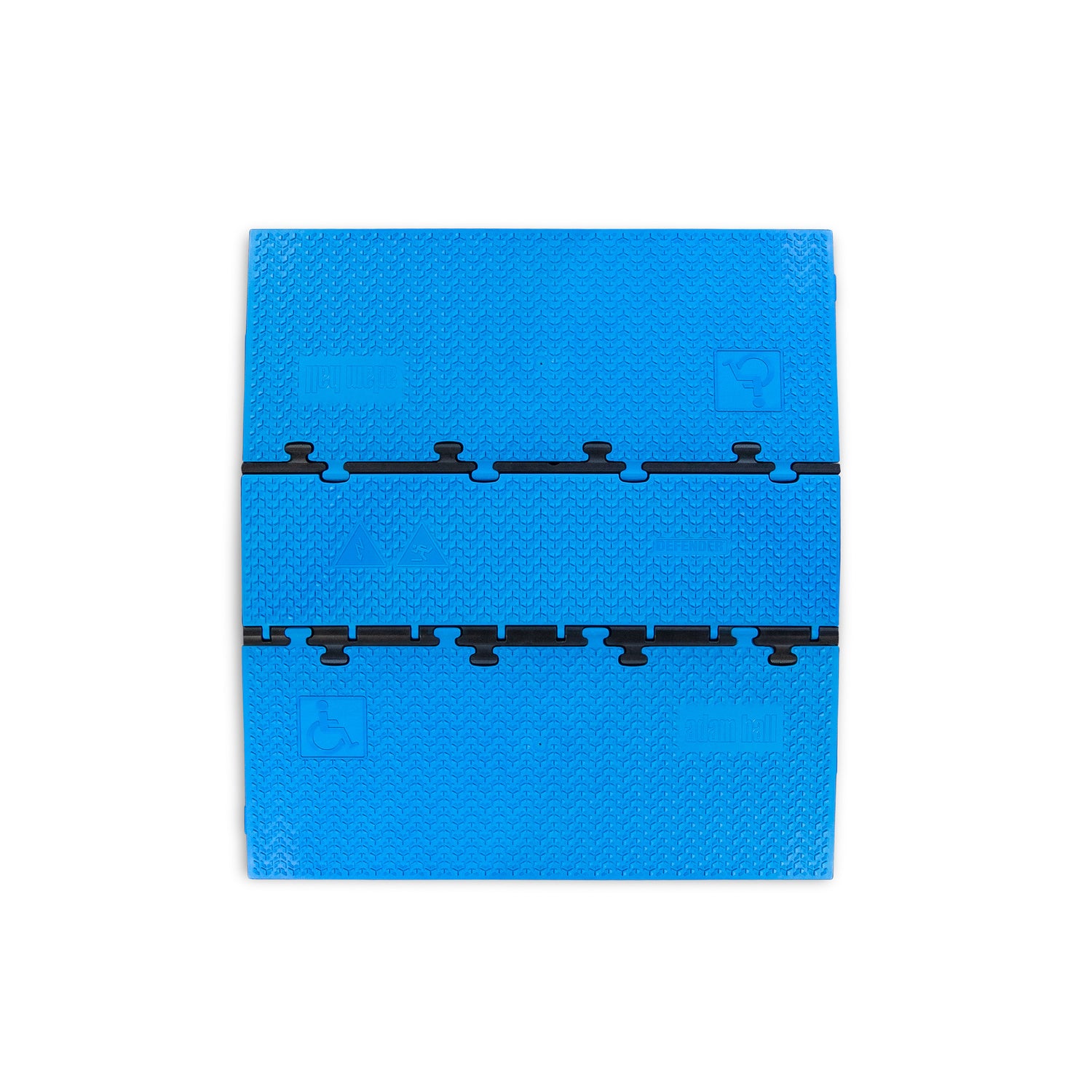

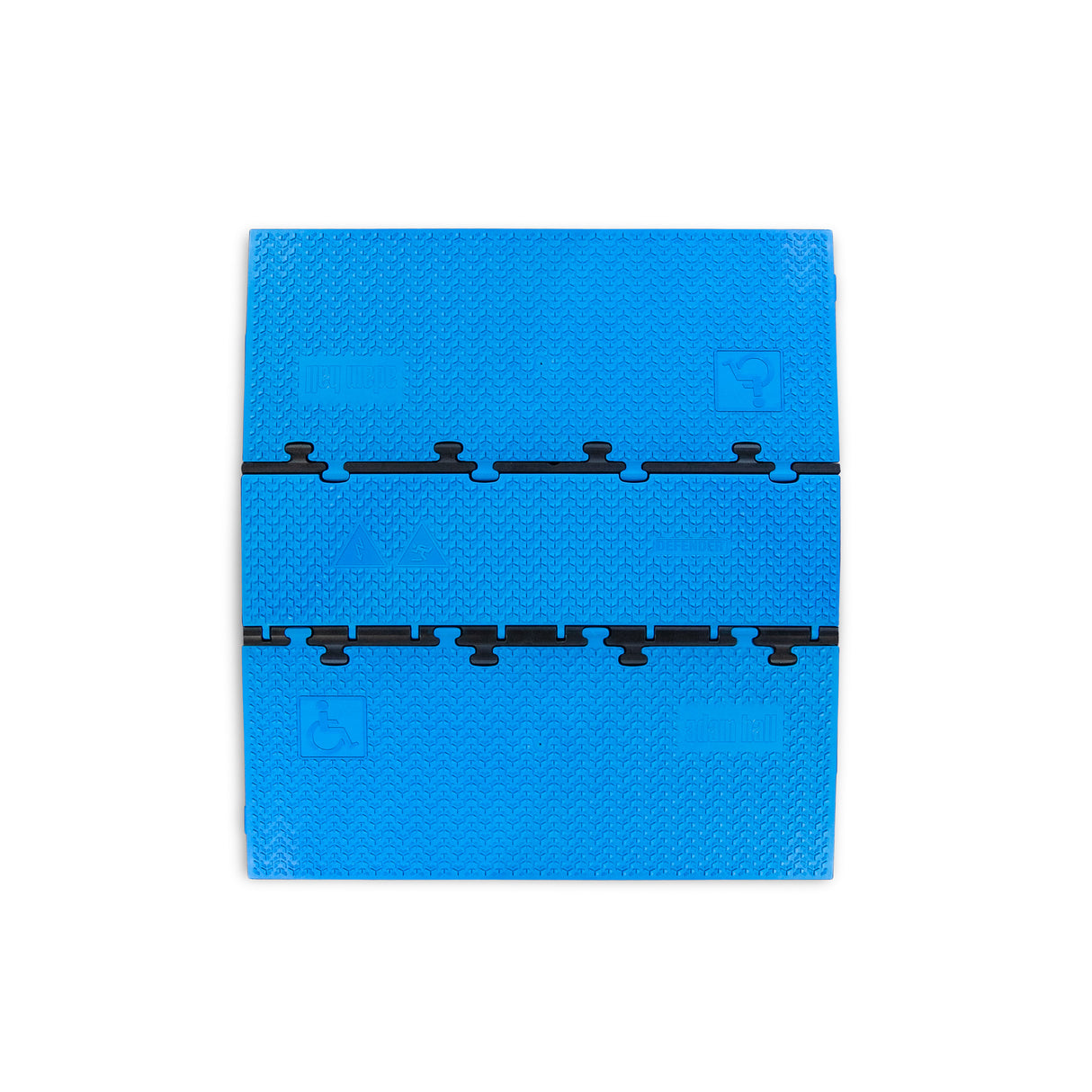

Blue DEFENDER® 2D MIDI set, modular system, wheelchair-friendly.

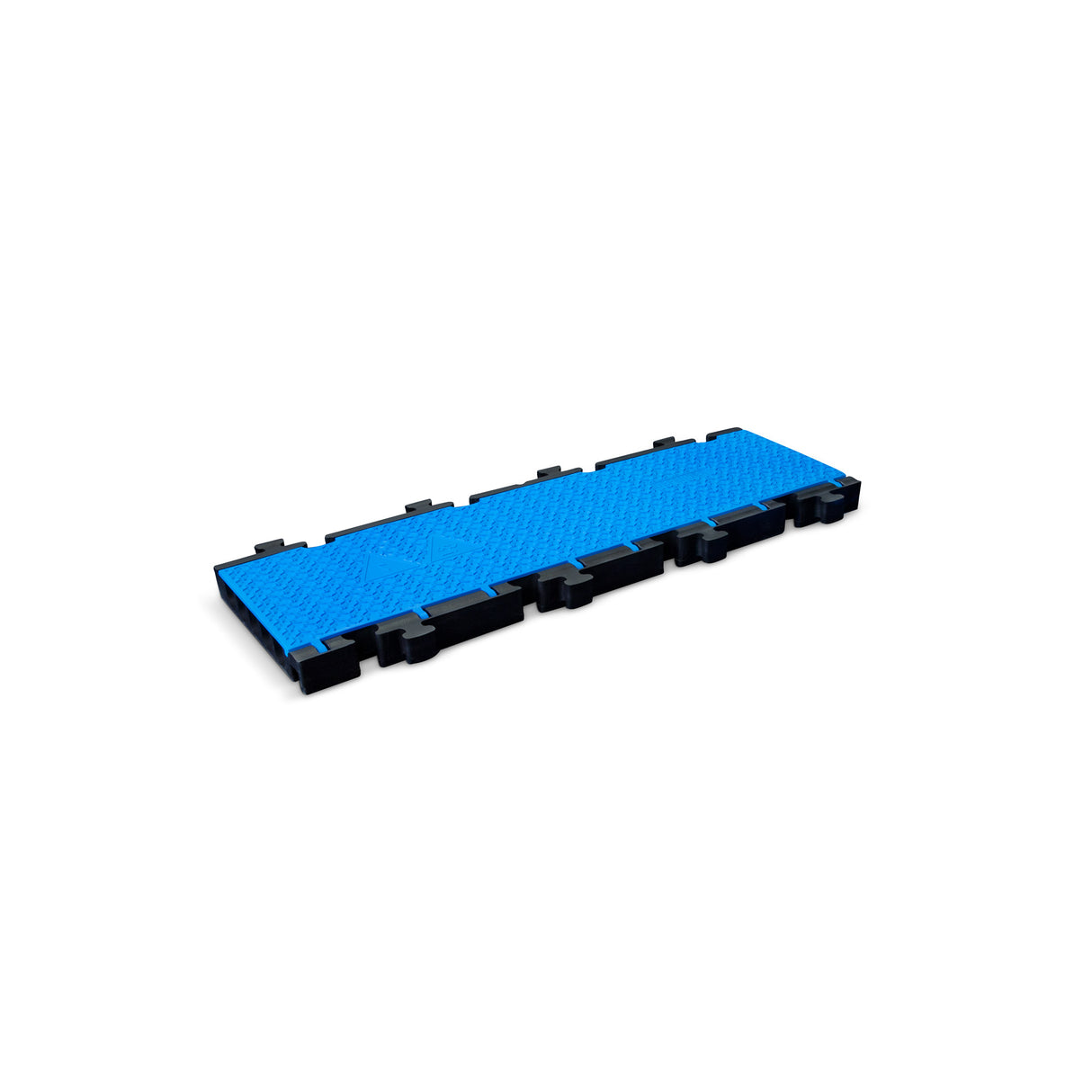

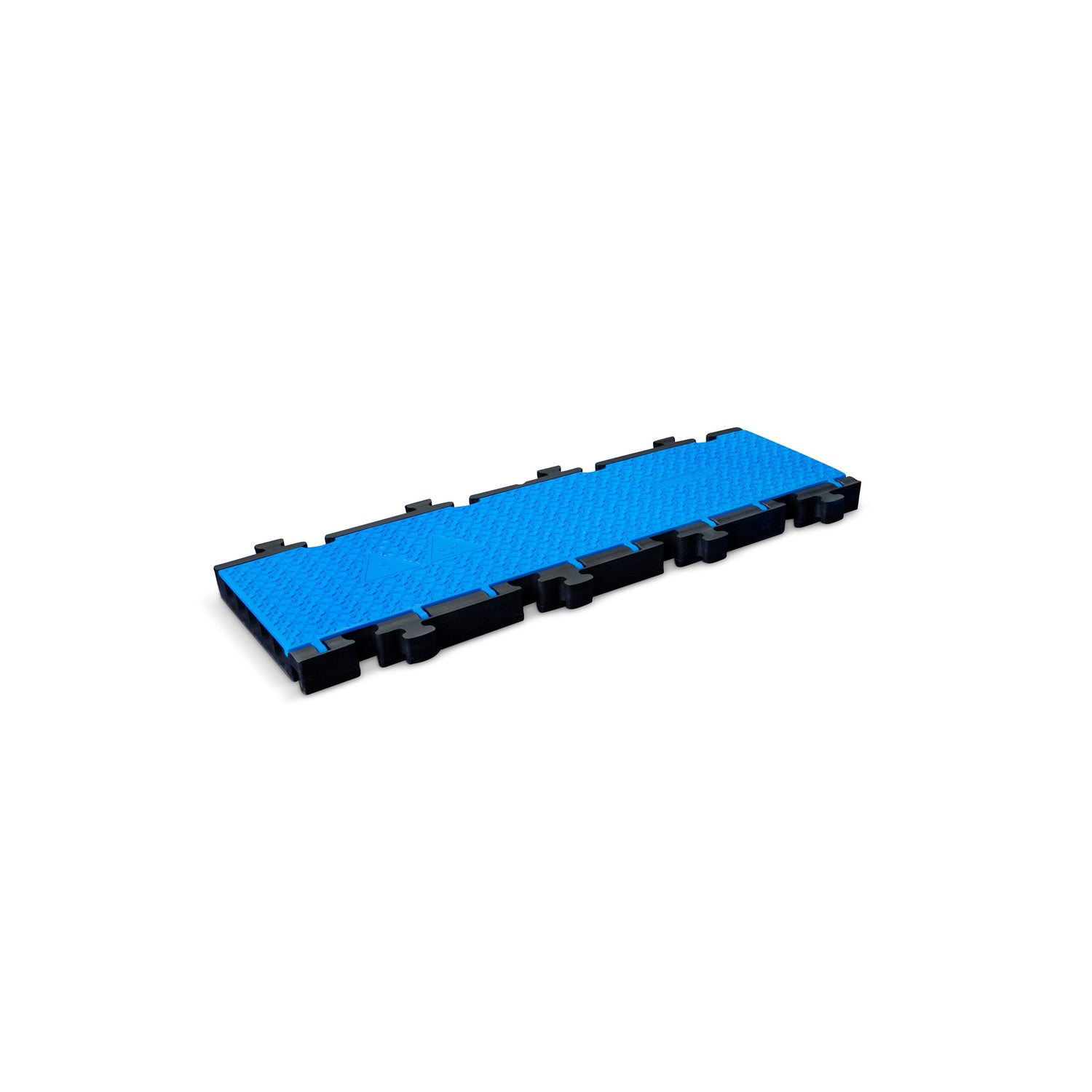

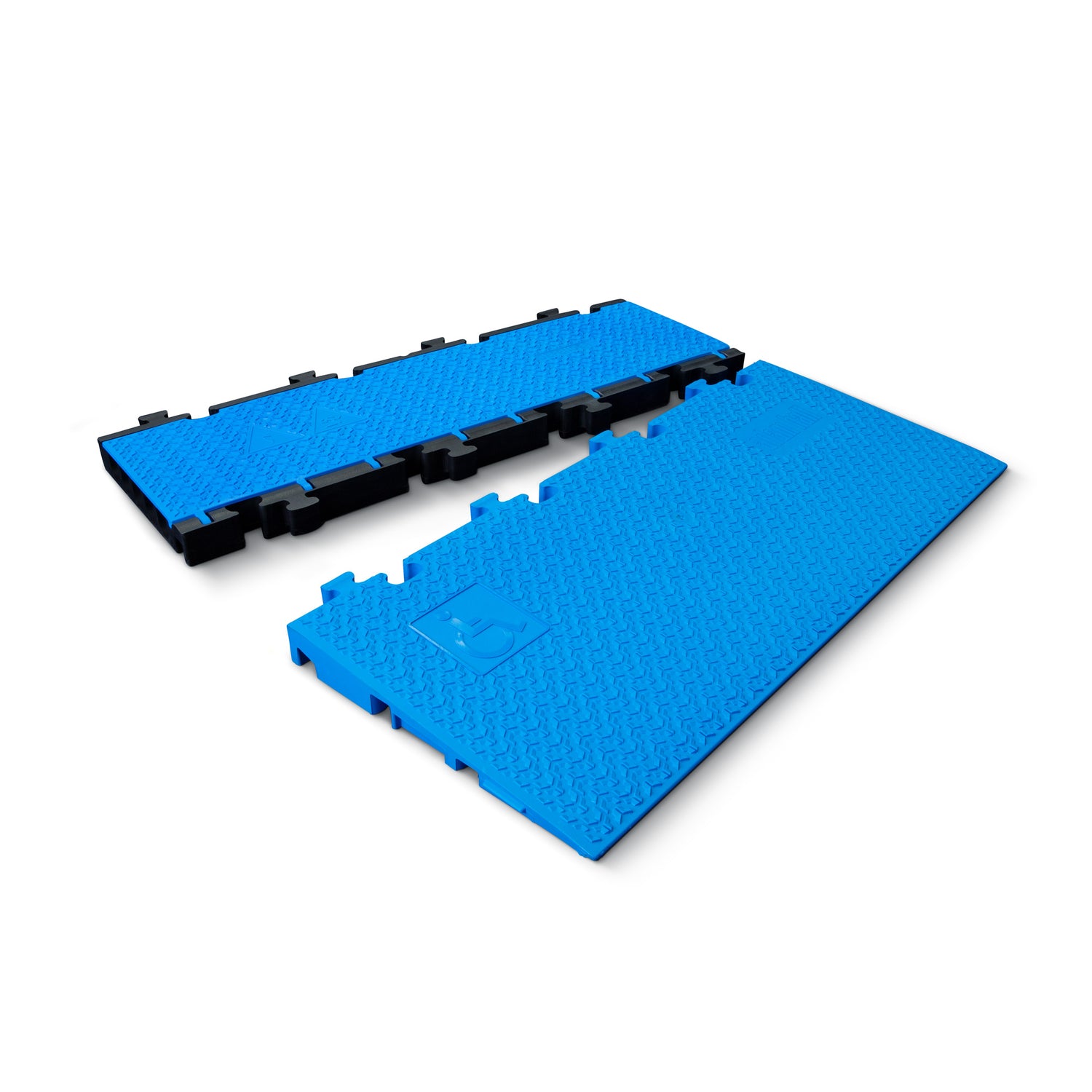

For optimal wheelchair accessibility, the modular cable protection system DEFENDER® 2D MIDI Blue was developed based on our popular DEFENDER® MIDI cable protector. It consists of a blue centre section that is compatible with the MIDI, and two flat blue ramps that can be combined and extended as required – both in length and width. In addition, it is also extremely easy to handle.

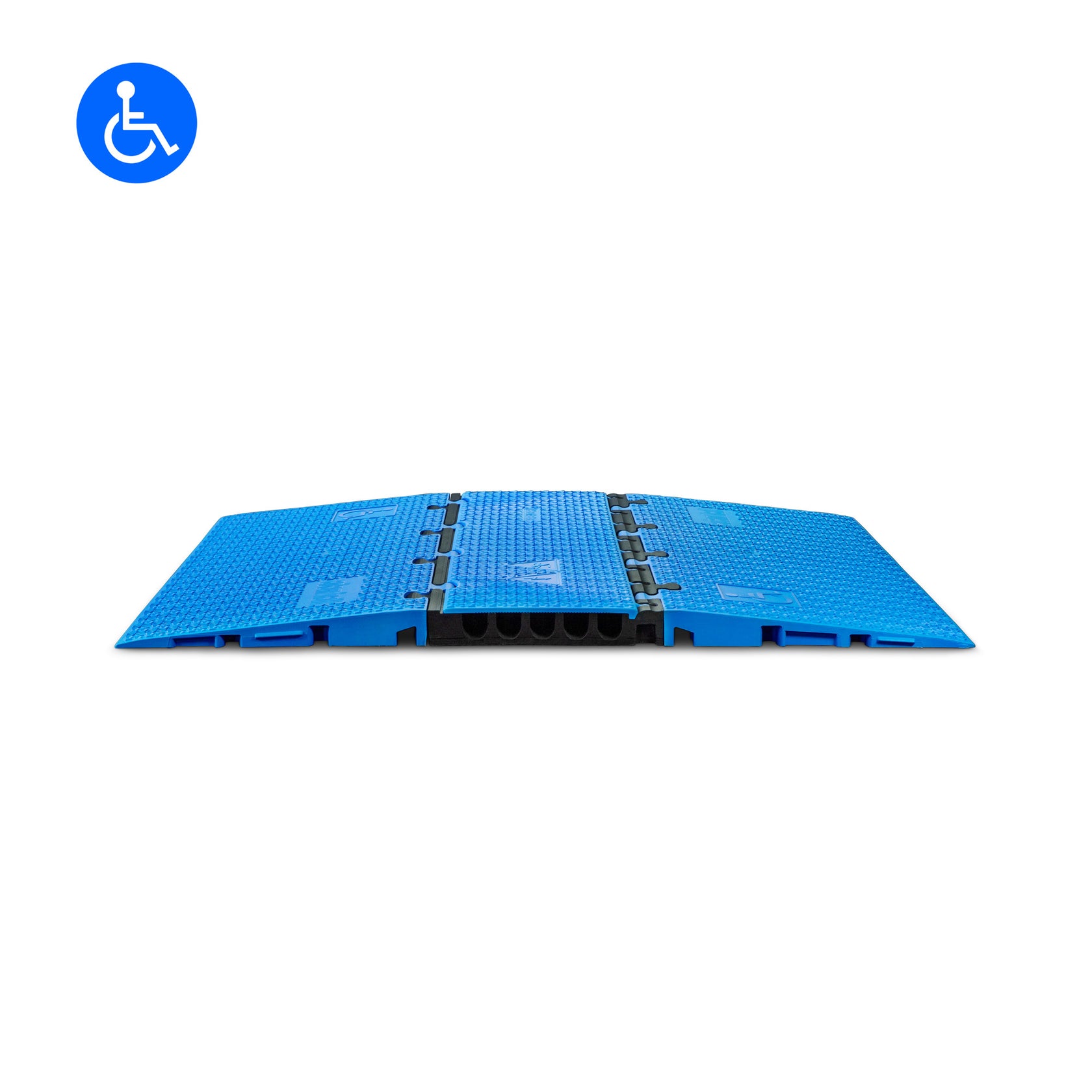

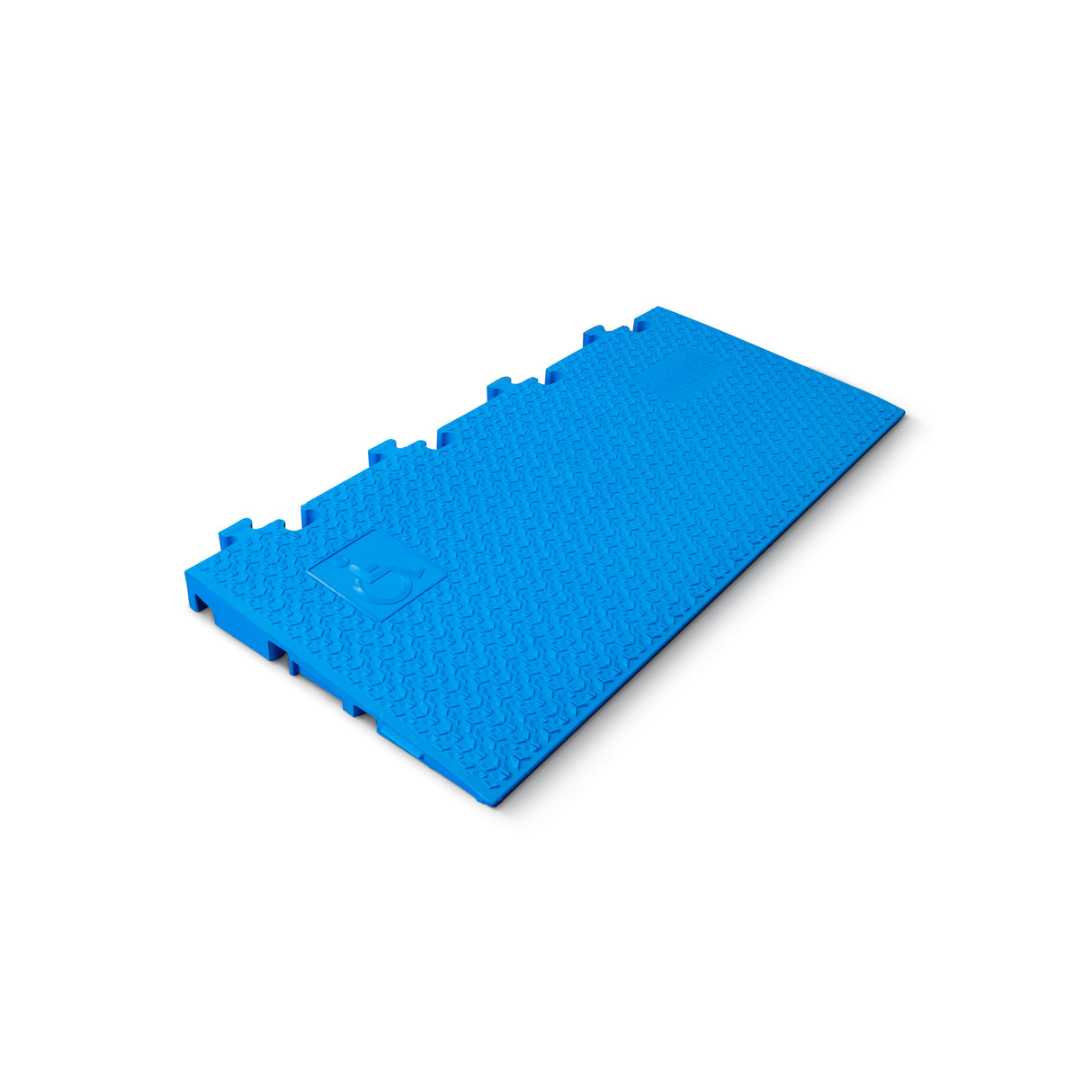

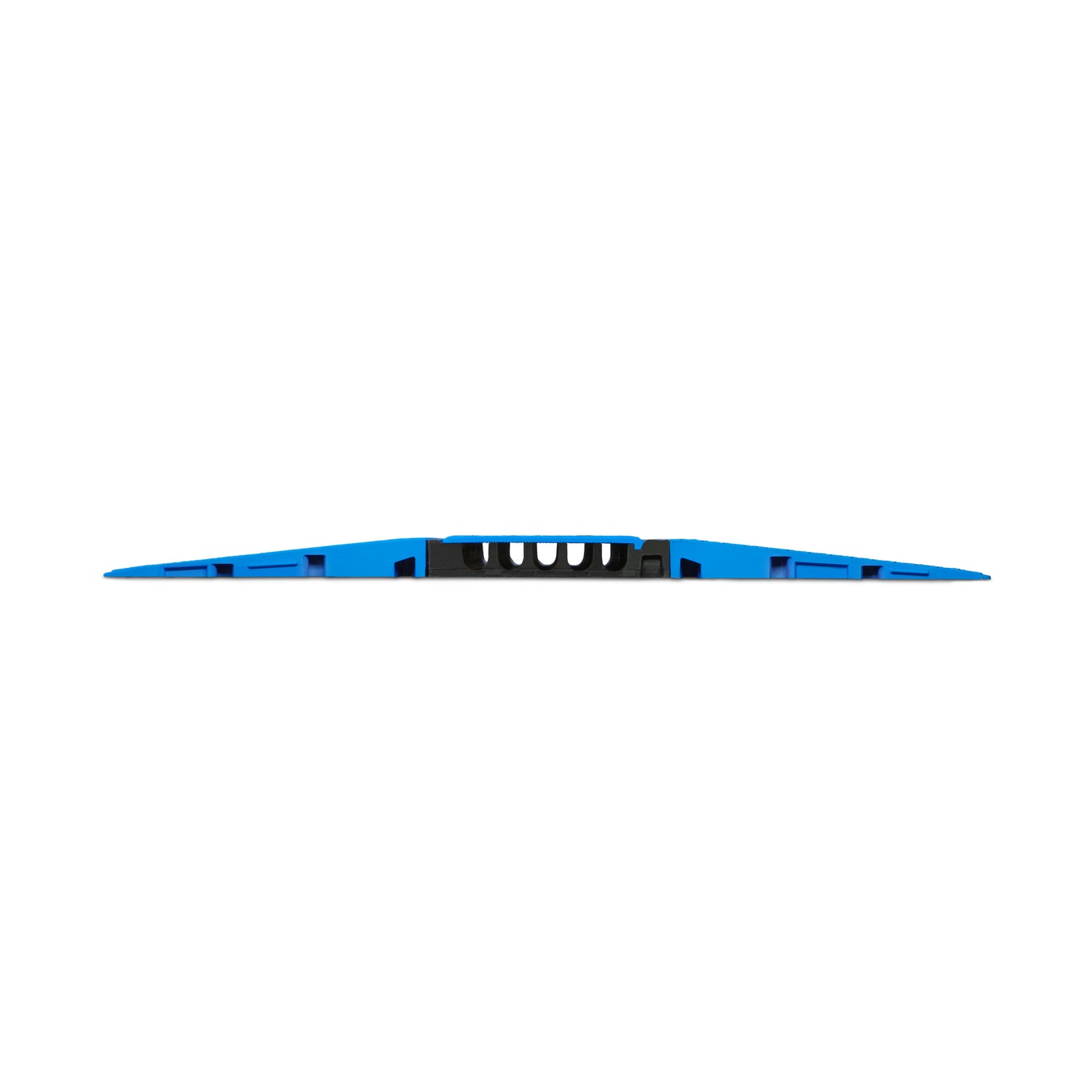

DEFENDER® MIDI 5 2D set with blue lid 'Barrier-free access' has become an issue that has raised increasing concern among both public authorities and event organisers in recent years. Conventional cable protector systems often mean having to compromise between accessibility and trafficability. But this is not the case with the new Blue DEFENDER® 2D M: Each centre section can be fitted with two ramps with a 6° incline, which can be driven over completely without any problems. The shallow incline makes it easy for wheelchair users to roll over the protectors without effort. They are also so stable that even forklifts and trucks can drive over them. Easy access and safety to areas where five channels are typically not enough, e.g. near power generators or FOH areas, is therefore also guaranteed. Audio, lighting and power cables can be routed individually, effortlessly and safely. The centre sections are designed symmetrically all around to make assembly easier, so you never again have to look for the right connecting piece. Therefore, there is no need for detailed assembly diagrams. The connections are designed with sufficient space for easy installation.
Technical specifications
Technical specifications
Set consisting of 2 ramps and a middle section

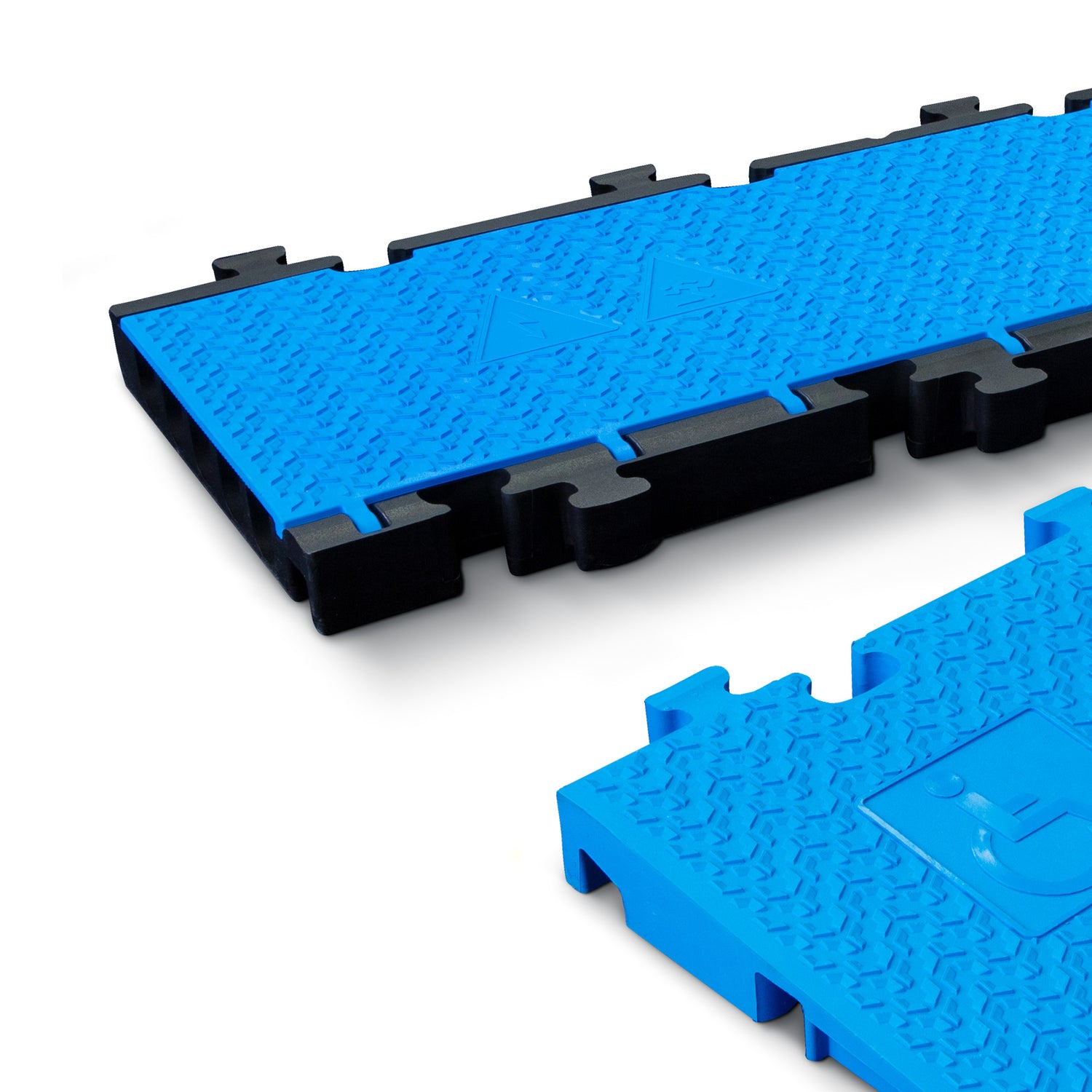

- Heavy-duty all-round cable bridge with 3D laser grip anti-slip surface made of blue recycled polyurethane and patented self-cleaning lid hinge

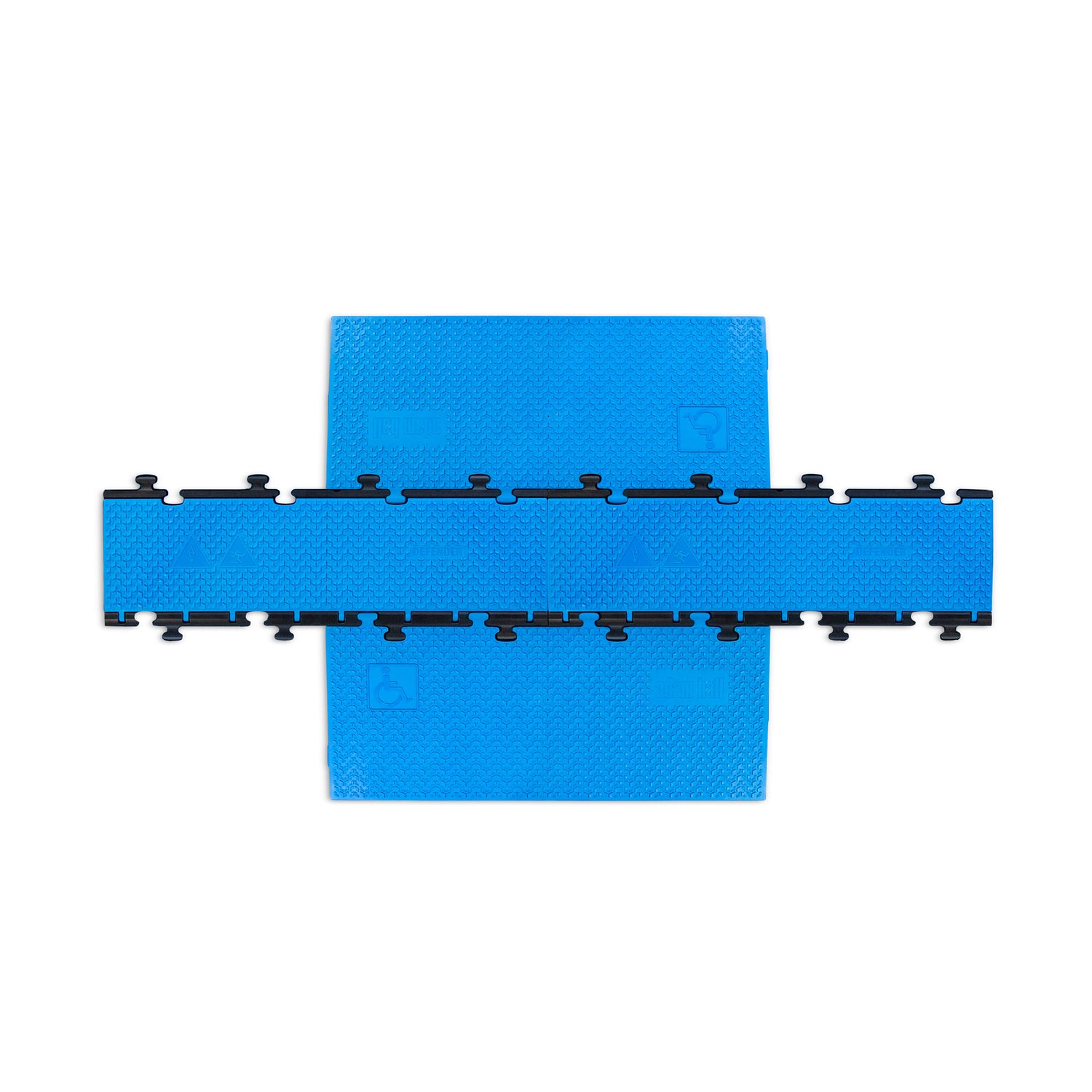

- Simple, multidirectional modular structure with unlimited expandability in width and length
- Fully compatible with Defender MIDI cable protectors

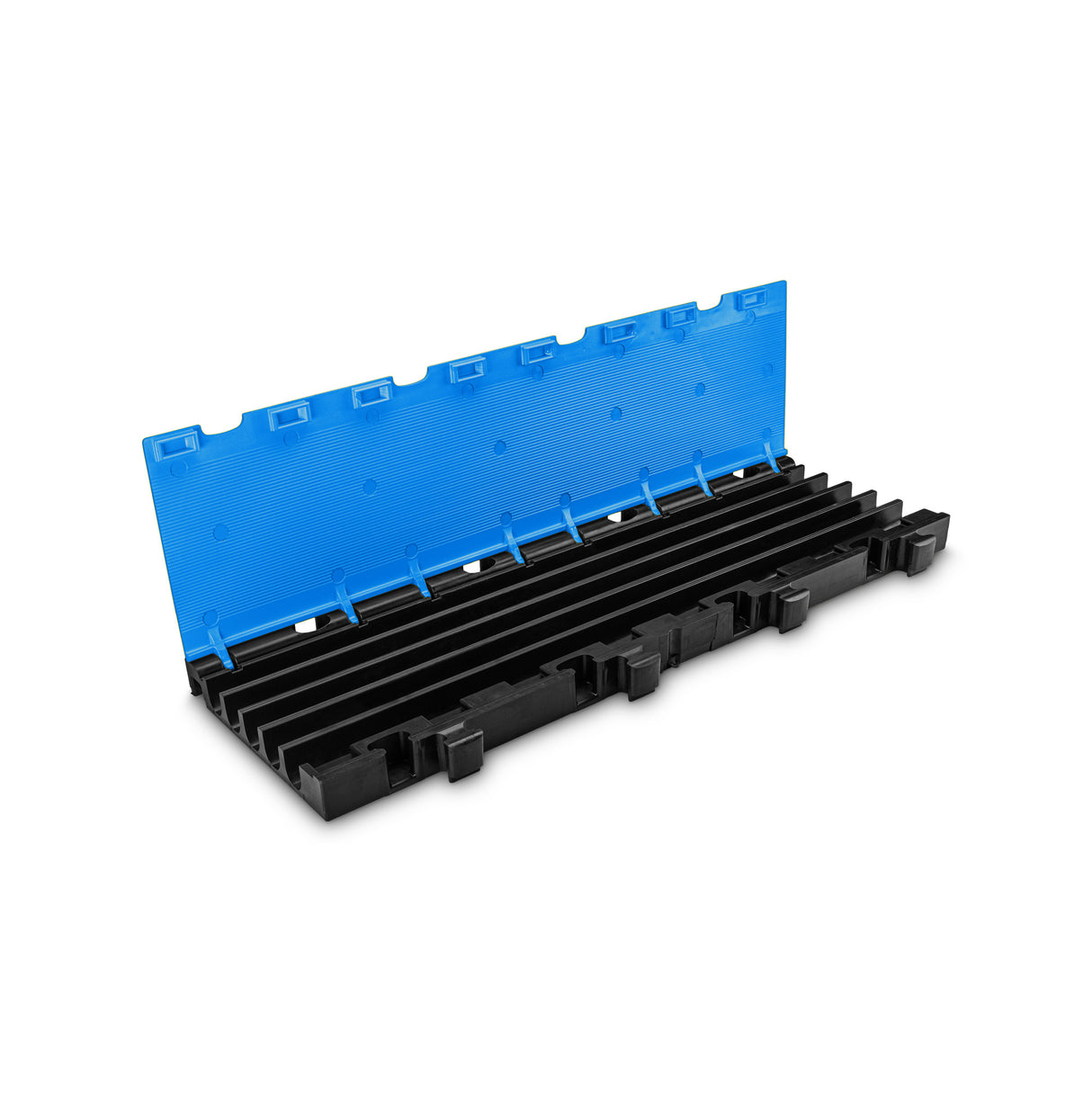

- Five 34 × 36 cm channels
- Load capacity: approx. 5 t / 25 × 30 cm
- Made of extremely robust and break-proof TPU
- TÜV SÜD certified
- Resistant to oil, acid, petrol and short-term contact with solvents
- Made in Germany
General
| Material | TPU (Thermoplastic polyurethane) |
| Surface structure | 3D laser grip |
| Colour | Black |
| Lid colour | Blue |
| Maximum load (on 25 x 30 cm) | 5 t |
| Load per axle | 10 t |
| Chemical resistance | Oil |
| Chemical resistance | Petrol |
| Chemical resistance | Solvents (short-term contact) |
| Hardness range (±4 Shore A) | 88 Shore A |
| Shape | Round |
Cable ducts
| Quantity | 5 |
| Cable ducts size (W x H) | 34 mm x 38 mm |
Environmental
| Fire protection class per DIN 4102-1 | B2 |
| Fire protection class per EN 13501-1 | E |
| Inflammability (UL 94) | HB |
| Inflammability (UL 94) | V-2 |
| Ambient temperature | -30 - 60 °C |
Dimensions & weight
| Length | 1,000 mm |
| Width | 1,185 mm |
| Height | 54 mm |
| Weight | 30.4 kg |
General
| Material | TPU (Thermoplastic polyurethane) |
| Surface structure | 3D laser grip |
| Colour | Black |
| Maximum load (on 25 x 30 cm) | 5 t |
| Load per axle | 10 t |
| Chemical resistance | Oil |
| Chemical resistance | Petrol |
| Chemical resistance | Solvents (short-term contact) |
| Hardness range (±4 Shore A) | 88 Shore A |
| Shape | Flat |
Cable ducts
| Quantity | 5 |
| Cable ducts size (W x H) | 34 mm x 38 mm |
Environmental
| Fire protection class per DIN 4102-1 | B2 |
| Fire protection class per EN 13501-1 | E |
| Inflammability (UL 94) | HB |
| Inflammability (UL 94) | V-2 |
| Ambient temperature | -30 - 60 °C |
Dimensions & weight
| Length | 1,000 mm |
| Width | 325 mm |
| Height | 54 mm |
| Weight | 11.6 kg |
General
| Material | TPU (Thermoplastic polyurethane) |
| Surface structure | 3D laser grip |
| Colour | Blue |
| Maximum load (on 25 x 30 cm) | 5 t |
| Load per axle | 10 t |
| Chemical resistance | Oil |
| Chemical resistance | Petrol |
| Chemical resistance | Solvents (short-term contact) |
| Hardness range (±4 Shore A) | 88 Shore A |
| Shape | Flat |
Environmental
| Fire protection class per DIN 4102-1 | B2 |
| Fire protection class per EN 13501-1 | E |
| Inflammability (UL 94) | HB |
| Inflammability (UL 94) | V-2 |
| Ambient temperature | -30 - 60 °C |
Dimensions & weight
| Length | 1,000 mm |
| Width | 430 mm |
| Height | 54 mm |
| Weight | 9.6 kg |
Brand: Defender
SKU: 869300SETBLU
Weight: 31.76 kg
