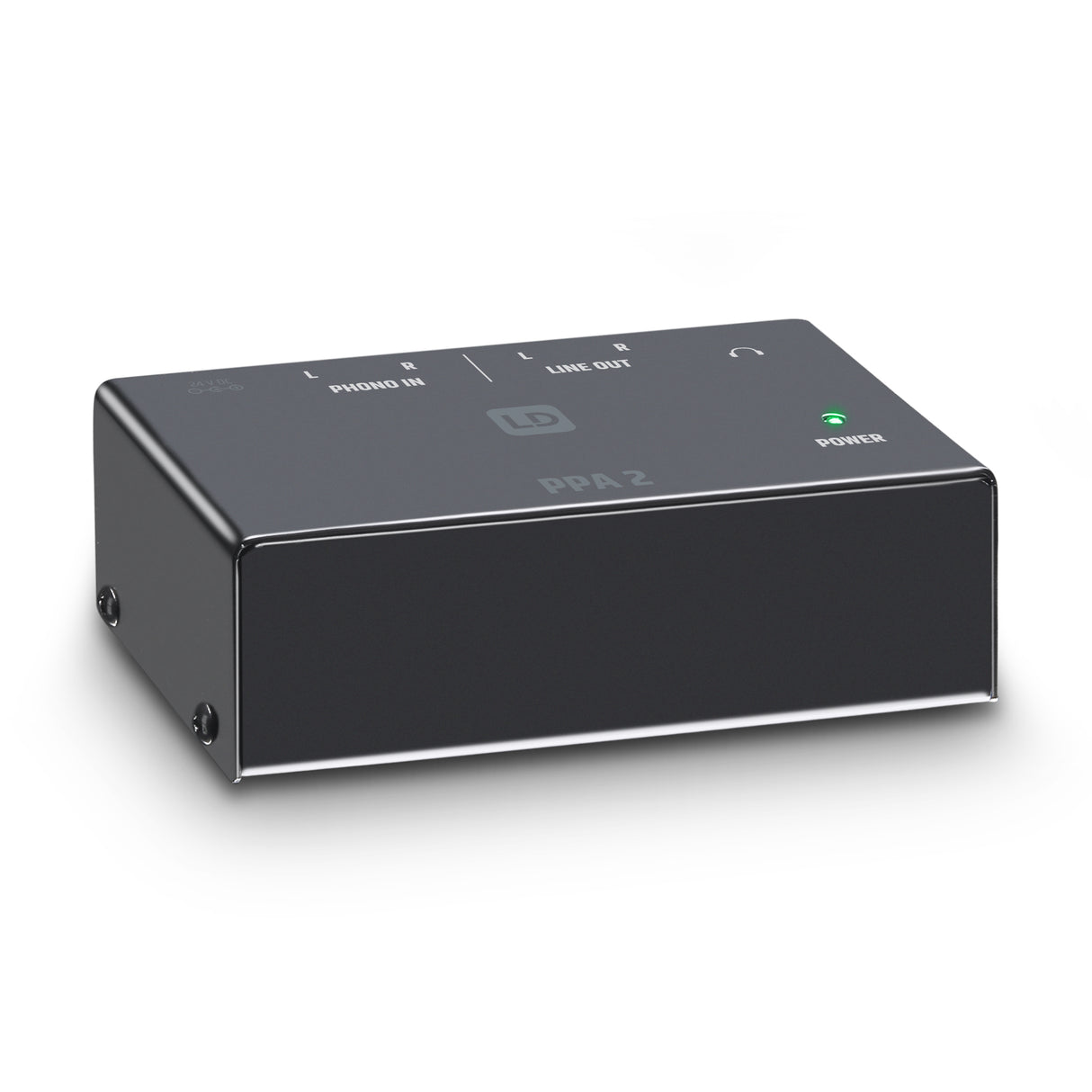

LD Systems PPA 2 - Phono preamp and equalizer
€45,95
Unit price
/
Not available
Description
Description
LD Systems PPA 2 is a very compact analogue phono preamp that equalises the extremely low output signal from conventional turntables to RIAA standards. It makes it possible to connect to devices without a phono input, such as mixers, PA power amplifiers or audio interfaces.

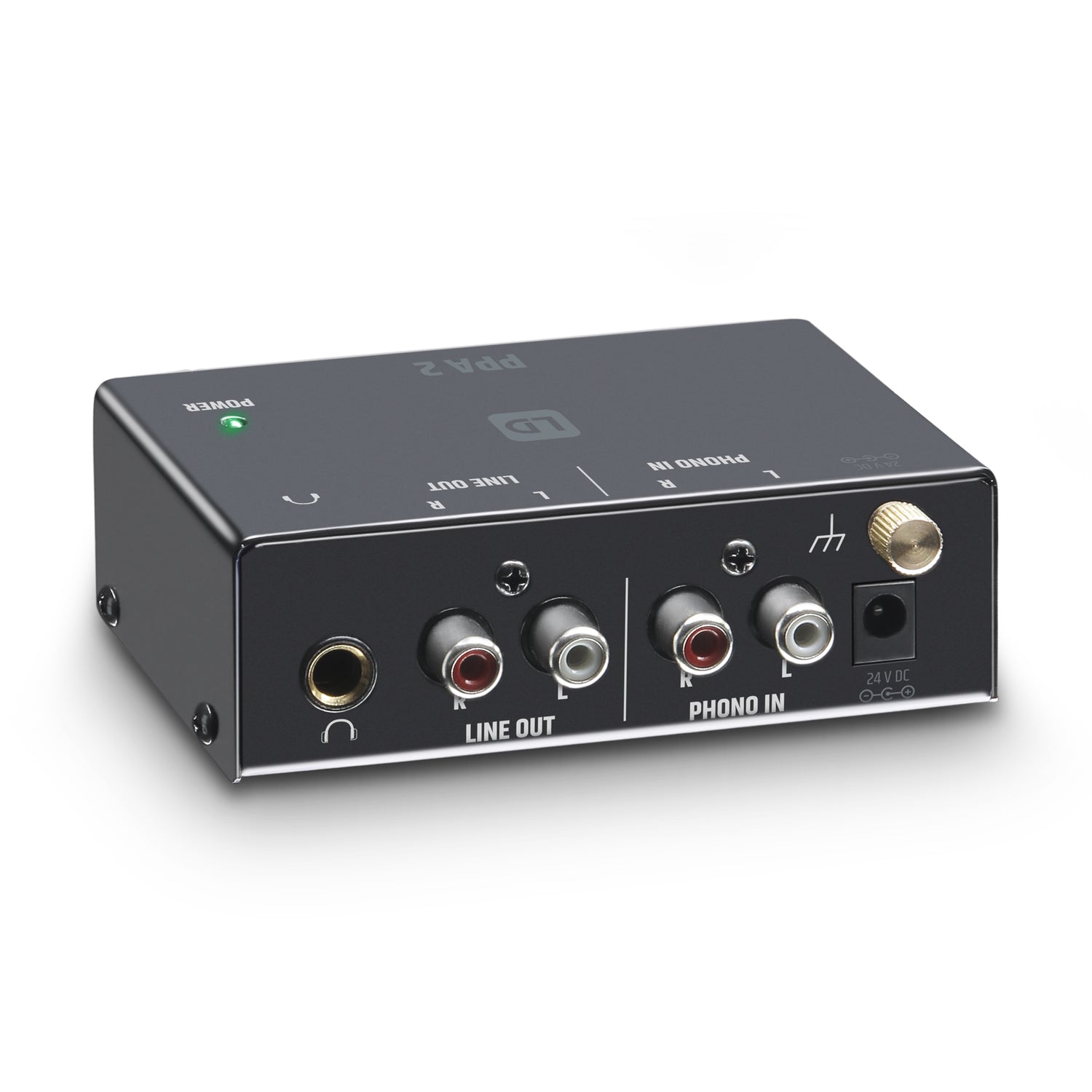

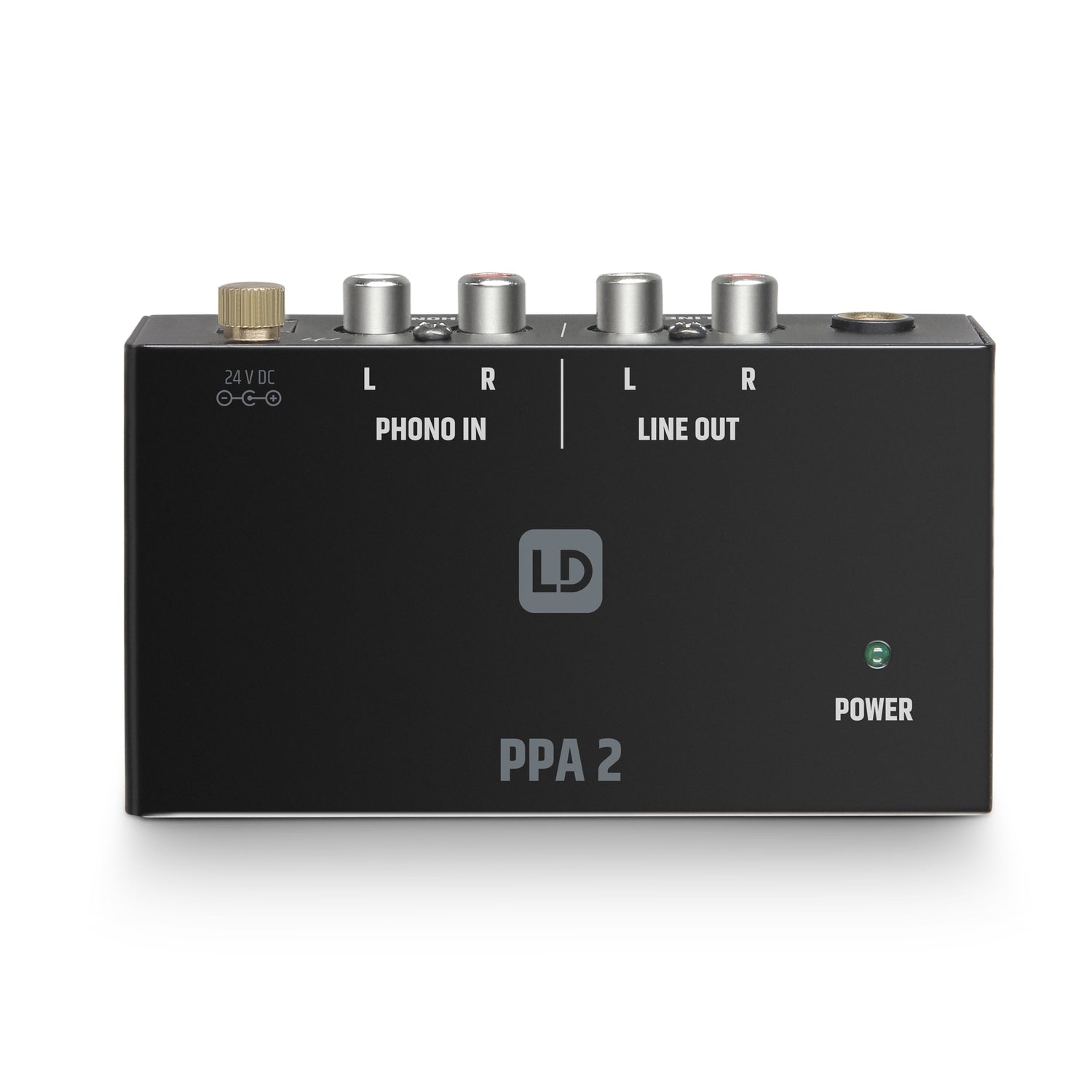

The phono inputs are implemented as RCA connectors, as are the line outputs; the PPA 2 also has a screw terminal for the turntable’s ground wire and a 6.3 mm stereo jack socket for connecting headphones. The preamp’s THD is below 0.05%, and channel separation is -75 dB.

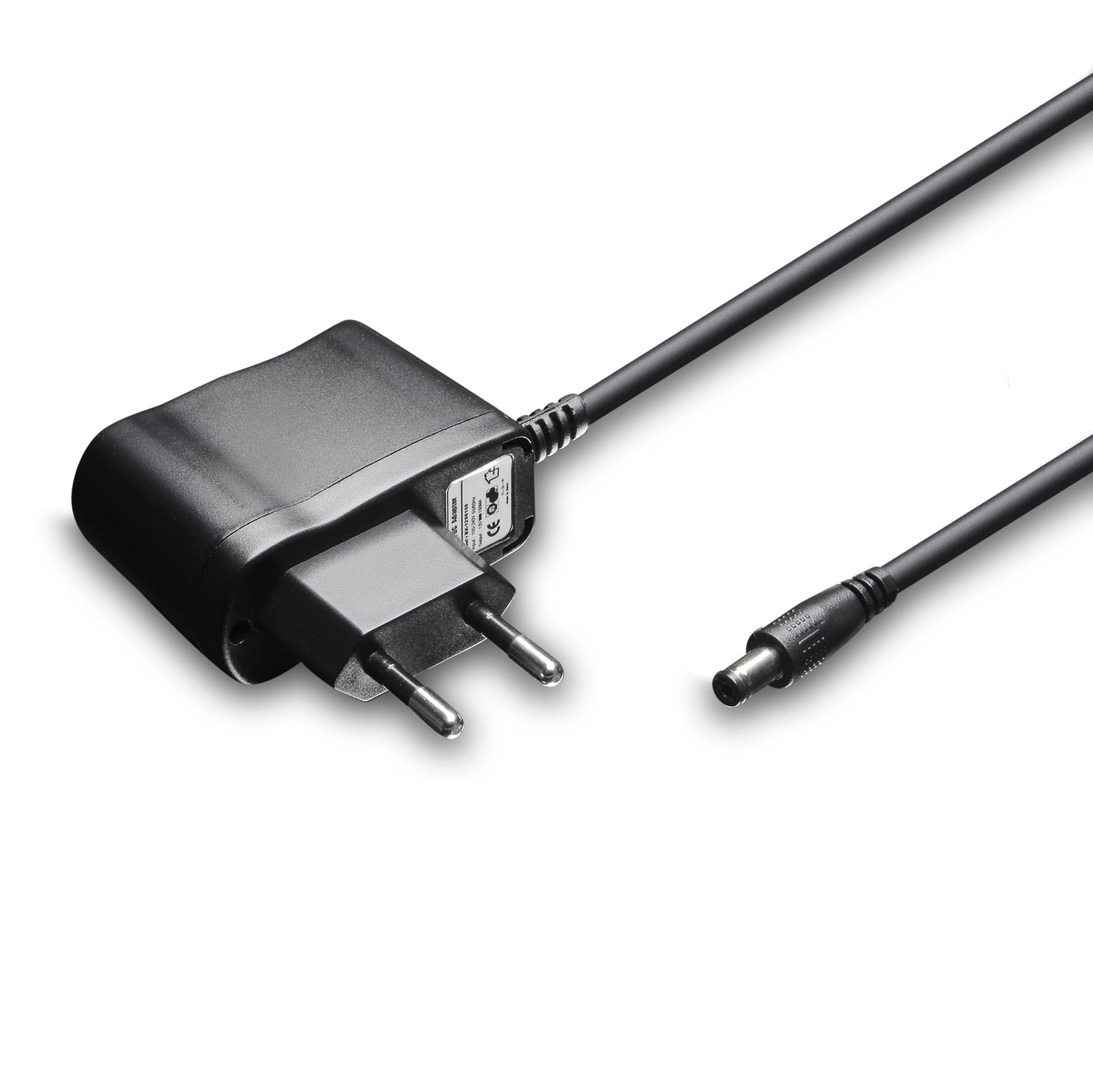

LD Systems PPA 2 uses a 12 V AC adapter; a bright LED on top of the rugged metal housing indicates the power supply.
Technical specifications
Technical specifications
- Ultra compact phono preamplifier and equalizer
- Proper RIAA equalization
- RCA inputs and outputs
- 6.3 mm stereo headphone output connector
- Sturdy metal housing
- 12 V AC/DC adapter included
| Product type | Other Studio and Recording Equipment |
| Version | Stereo Input / Stereo Output |
| Frequency response | RIAA Curve Hz |
| Signal-to-noise ratio | 70 dB |
| Total Harmonic Distortion (THD) | <0.05% |
| Crosstalk | -75 dB |
| Max. input level | -23.5 dBV |
| Max Output Level | +10 dBV |
| Input impedance (kOhms) | 47 kOhm |
| Output impedance | 50 Ohm(s) |
| Indicators | power LED |
| Inputs | 1 x Phono Stereo |
| Input connectors | 2 x RCA |
| Input connectors | Earth terminal |
| Line outputs | Headphones |
| Line outputs | Line Stereo |
| Line output connectors | 2 x RCA |
| Line output connectors | 6.3 mm TRS |
| Operating voltage | External Power Supply |
| Operating voltage | 12 V DC |
| Max. Current | 0.15 |
| Width | 104 mm |
| Height | 36 mm |
| Depth | 67 mm |
| Weight | 0,28 kg |
