€299,95
Unit price
/
Not available

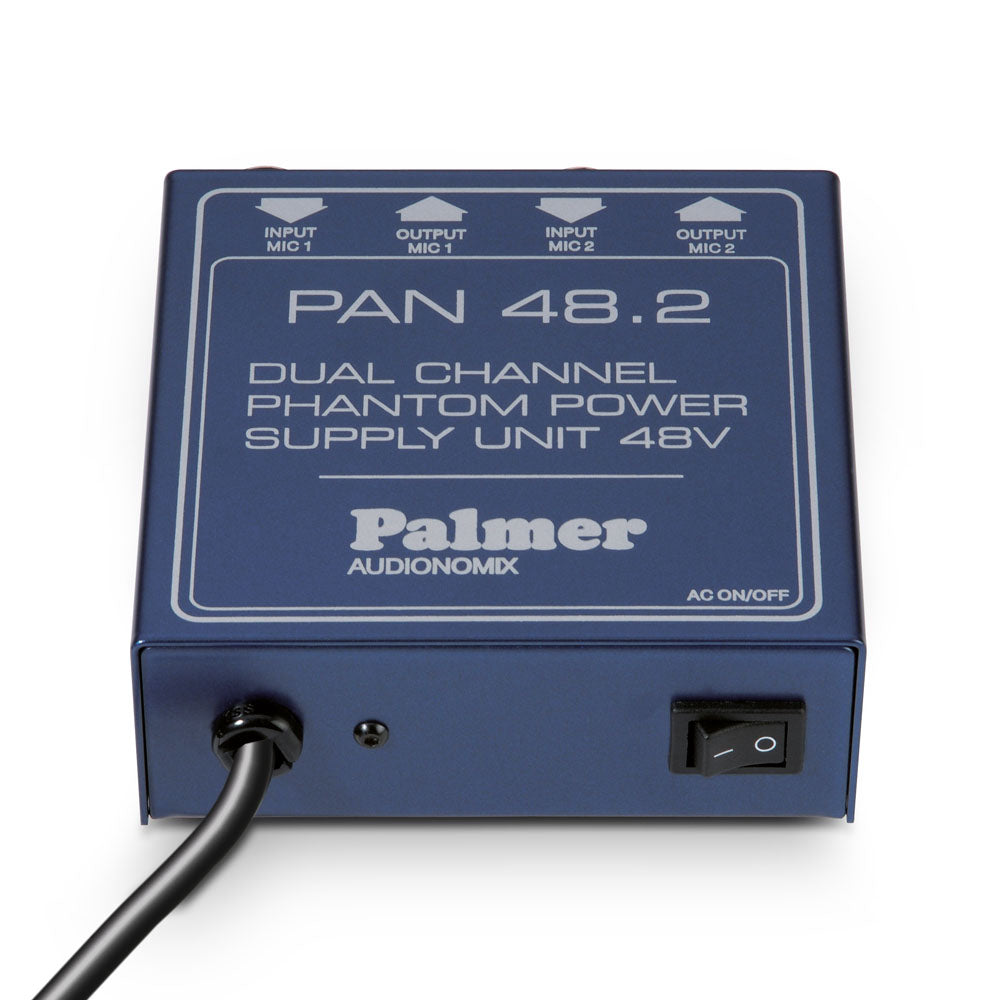

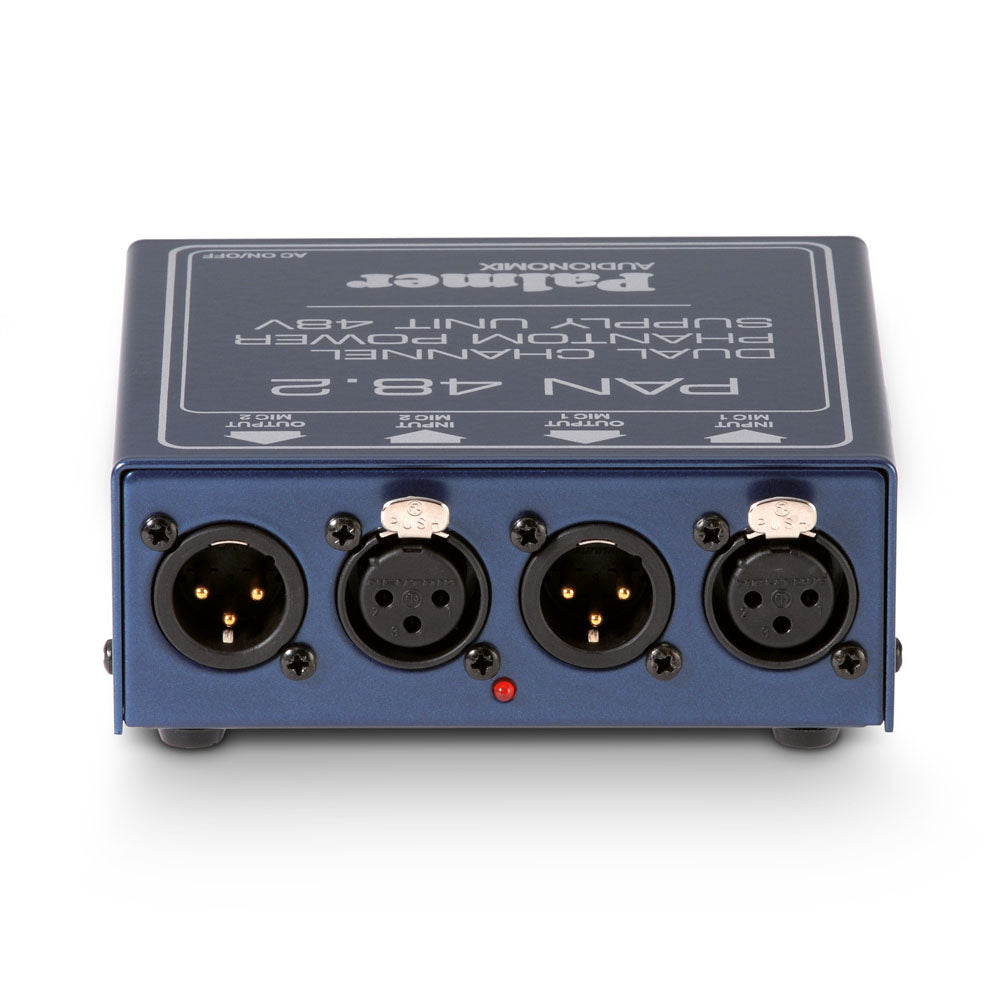

Palmer PAN 48 - Phantom power supply, 2 channels
1
of
2
Loading...
€299,95
Unit price
/
Not available
Secure checkout
Payment methods accepted
Others also bought:
-
Palmer Passive Monitor Controller
€86,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer Pro Cable tester
€77,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer MONICON XL active studio monitor controller
€397,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer STUDIMON 5 Studio Monitor
€233,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer PBC400 drawer
€31,95
External warehouse – Estimated delivery in 9–12 business days.
Palmer PAN 48 - Phantom power supply, 2 channels
€299,95
Unit price
/
Not available
Description
Description
Palmer Pan 48 is a unit for external power supply of phantom-powered devices. Due to the high current level of up to 20 mA, its use is not limited to condenser microphones. PAN 48 is excellent for powering phantom-powered active DI boxes. The unit has two channels. Specifications: 2 channels, each channel: Microphone input: XLR/f Pin 2 & 3 +48 VDC, Pin 1 ground Output: XLR/m no DC voltage Ground lift switch Phantom power stabilised ±5%. Low ripple, low noise Max. current 20 mA total. LED indicator. Metal housing
Technical specifications
Technical specifications
| Product type | Microphone Accessories |
| Type | 48 V |
| Input Connector | XLR (3-pin) |
| Gender of input connector | female |
| Output connector | XLR (3-pin) |
| Gender of output connector | male |
| Material | Metal |
| Power supply | fixed power cord |
| Operating voltage | 90 V AC - 240 V AC, 50 - 60 Hz |
| Controls | Switches |
| Controls | mains switch (on/off) |
| Indicators | Power |
| Width | 120 mm |
| Height | 115 mm |
| Depth | 45 mm |
| Weight | 0,68 kg |
| Accessories (included) | Power supply |
