Crown XLS1002 - 2-channel amplifier 2x350W @ 4Ω with DSP

Crown XLS DriveCore™ 2 series builds on the legendary Crown performance and combines extremely low weight with professional DSP and flexible connectivity options.
The patented DriveCore™ Class-D technology delivers efficient operation and clean sound without distortion, even under heavy loads.

The built-in DSP section provides full control of the system – including an adjustable crossover, band-pass filter and limiter – directly from the front panel via a clear LCD display.
You can also select input sensitivity, lock the menu for security and enable auto-sleep mode for energy savings.

With a weight of only 3.9 kg, the Crown XLS1002 is ideal for both mobile PA applications, touring racks or fixed installations where low weight and reliability are crucial.

Crown also provides a 3-year full warranty, underlining the series’ quality and robustness.

Features

• 2 x 350 W @ 4 Ω / 2 x 215 W @ 8 Ω / 1100 W bridged @ 4 Ω
• DriveCore™ 2 technology: high efficiency and low heat output
• Integrated DSP with crossover, limiter and filter per channel
• Selectable input sensitivity (0.775V / 1.4V)
• Peakx™ limiter protects speakers against overload
• PureBand™ crossover system for precise frequency control
• Security lock & sleep mode for energy savings and protection

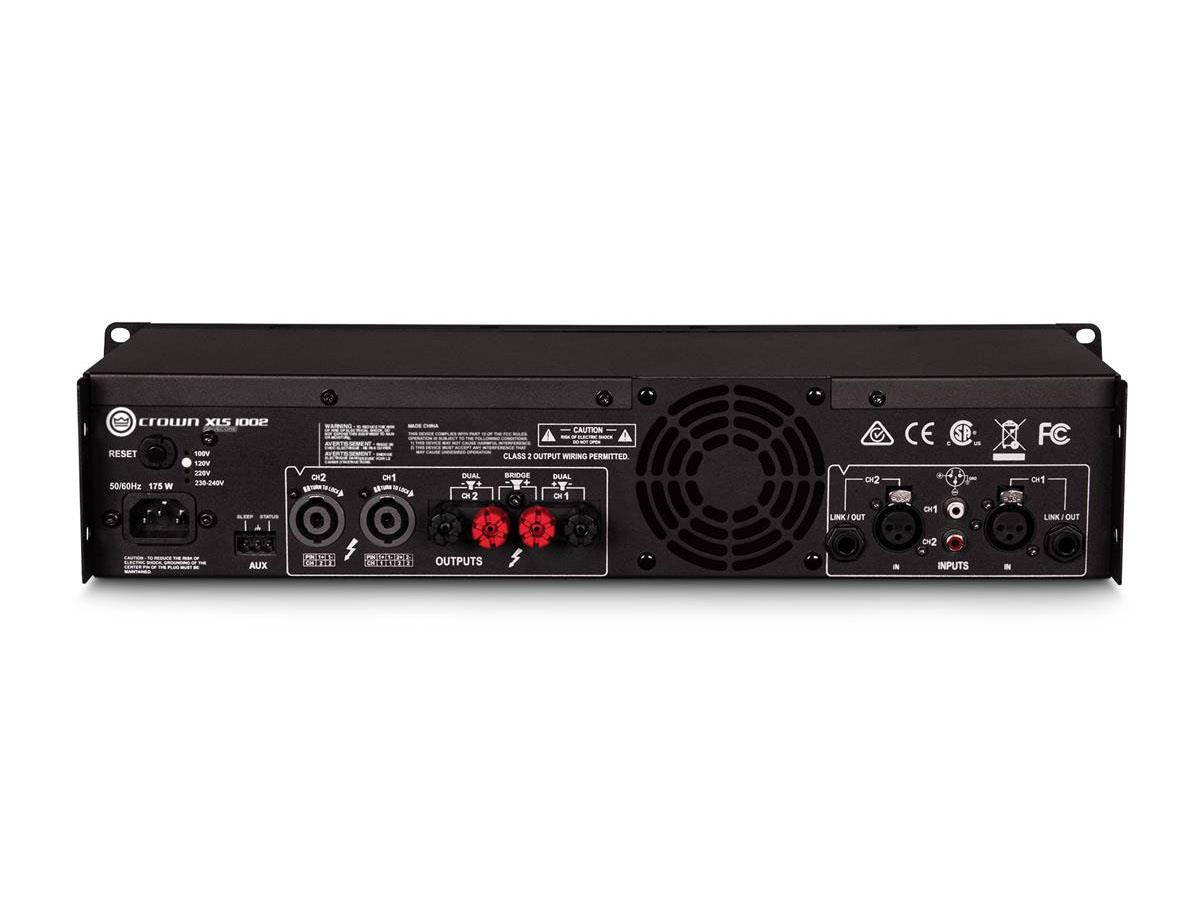

• XLR, 1/4" jack and RCA inputs – flexible integration into any system
• SpeakON and binding post outputs
• 19” rack mounting, 2U height, weight under 4 kg

• Model: Crown XLS1002
• Serie: XLS DriveCore™ 2
• Forstærkertype: Klasse-D (DriveCore™ teknologi)
• Kanaler: 2
• Effekt (Stereo):
  • 2 x 350 W @ 4 Ω
  • 2 x 215 W @ 8 Ω
• Effekt (Bridged):
  • 1100 W @ 4 Ω
  • 700 W @ 8 Ω
• Frekvensrespons (1W, 20Hz–20kHz): +0 dB / -1 dB
• Signal/støj-forhold: >97 dB (A-vægtet ved 8 Ω)
• Total harmonisk forvrængning (THD): <0,5%
• Intermodulationsforvrængning: <0,3%
• Dæmpningsfaktor (8 Ω, 10Hz–400Hz): >200
• Crosstalk:
  • @1kHz: >85 dB
  • @20kHz: >55 dB
• Indgangsfølsomhed: 0.775 Vrms / 1.4 Vrms (valgfri)
• Indgange: XLR, 1/4" jack, RCA
• Udgange: Speakon og skrueklemme (binding post)
• DSP-funktioner:
  • Bandpass-filter pr. kanal
  • PureBand™ crossover-system
  • Peakx™ limiter
• Køling: Aktiv blæser (Air active fan)
• Montering: 19” rack, 2U
• Mål (B x H x D): 48,3 x 8,9 x 19,6 cm
• Nettovægt: 3,9 kg
• Forpakningsvægt: 5,1 kg
• Strømforsyning: 230V AC, 50/60Hz
• Ekstrafunktioner:
  • Menu-lås og reset-funktion
  • Auto sleep mode
  • Remote power trigger
• Garanti: 3 års “no-fault” fuld garanti
