Daisy chain vs DMX splitter – what should you choose for your setup?

DMX is designed as a line-based system, but as setups grow, the demands on signal structure increase. In smaller productions, simplicity is often an advantage. In larger productions, robustness and fault isolation become crucial.

Understanding the difference between a daisy chain structure and a splitter structure is key to stable lighting control.

Both methods are used professionally

Daisy chain is the original DMX topology and still works well in small and mid-sized setups. Splitters, on the other hand, are standard in theatre installations, touring productions and larger events, where reliability is a top priority.

The choice depends on complexity and risk tolerance.

Advantages – What the right structure provides

A correctly chosen signal structure reduces the risk of signal dropouts, makes troubleshooting easier and creates cleaner cable routing.

In small setups, fewer components can mean faster setup. In larger setups, segmentation via a splitter can prevent a single fault from affecting the entire system.

Functions – What is a daisy chain

A daisy chain is the standard way DMX was originally designed to work. The signal is sent from the controller to the first light, then on to the next, and continues through the entire chain up to the last fixture.

Each light has a DMX input and a DMX output. The output passes the signal on to the next unit.

The advantage is simplicity. No additional boxes are required, there are fewer components, and setup is quick and cost-effective. In smaller setups with few lights, this often works without issues.

The disadvantages arise when the chain becomes long or complex. If one light loses power or a cable is unplugged, all subsequent lights lose the signal. Long chains can also lead to signal degradation, especially without proper termination. Troubleshooting can become time-consuming, as the entire chain must be checked.

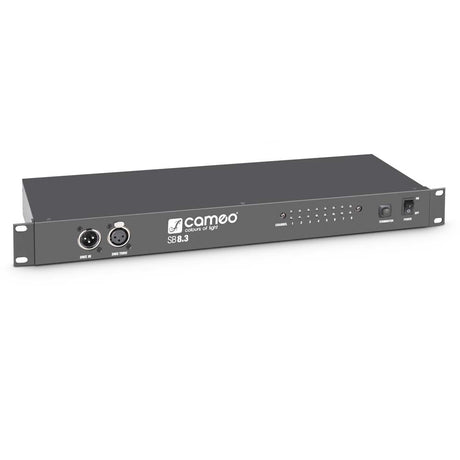

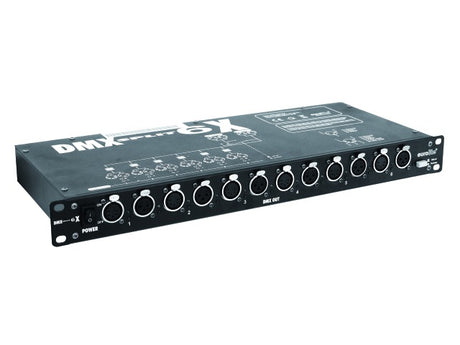

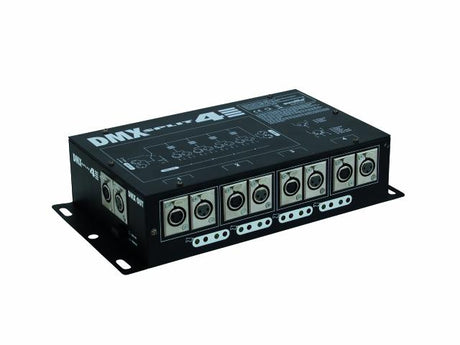

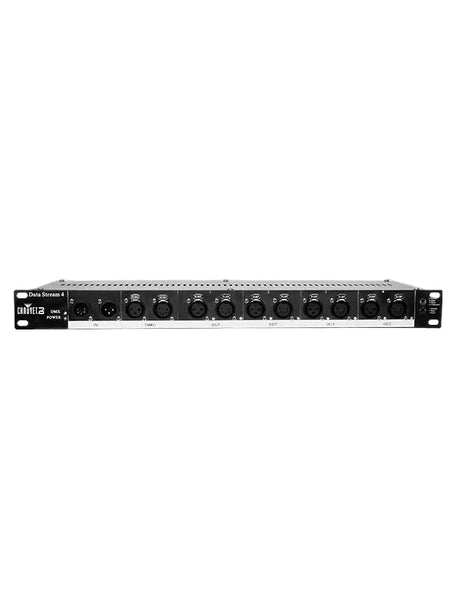

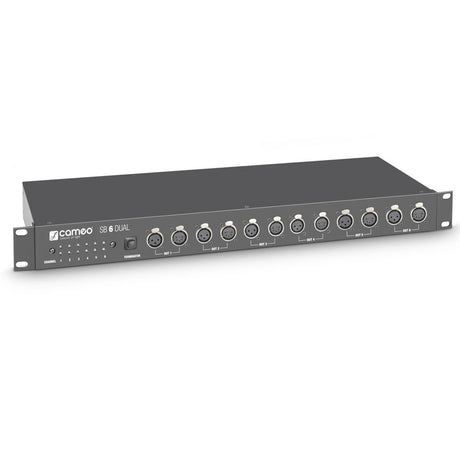

What is a DMX splitter

A DMX splitter receives a single incoming DMX signal and generates multiple independent outputs. Instead of one long chain, the signal can be split into separate branches.

The signal is regenerated and electrically isolated on each output. This means the signal is not merely copied, but recreated with the correct level and impedance.

If a fault occurs in one branch, it does not affect the others. This significantly increases stability in larger systems.

The disadvantages are mainly practical. Splitters are additional equipment, require power, and result in higher cost and slightly longer setup time. In small setups, it may therefore be unnecessary.

How it works in practice – When to choose what

Daisy chain is often sufficient when there are few lights, short cable runs, and limited complexity. In mobile DJ setups, smaller stages, and test rigs, it is typically the most effective solution.

A splitter, on the other hand, makes sense when the chain becomes long, when fixtures are positioned in different directions, or when using moving heads and other complex devices. In productions where downtime is not acceptable, splitters reduce the risk of a total system failure.

In practice, many technicians choose to introduce a splitter as soon as the setup exceeds a small number of fixtures or covers a larger physical area.

The professional method – Combination

In medium-sized and larger productions, a combination is often used. The controller is connected to a splitter, and each splitter output supplies a short daisy chain in a specific zone.

This structure combines the advantages of both methods. The main signal is stable and split into isolated branches, while each zone is kept simple and easy to manage. It reduces cable clutter and makes troubleshooting more systematic.

Case – Practical difference in stability

In a mid-sized event setup, all fixtures were initially connected in one long chain. Sporadic signal issues occurred in the last units. After splitting via a splitter into three shorter branches, the instability disappeared, and the system became easier to troubleshoot.

The change was not in the controller or fixtures, but in the signal structure.

Call to action

Always assess size, physical layout, and reliability requirements before choosing a signal structure. If the show is critical, or the installation is extensive, a splitter should be included in the planning from the start.

Structure should be designed deliberately – not arise by chance.
